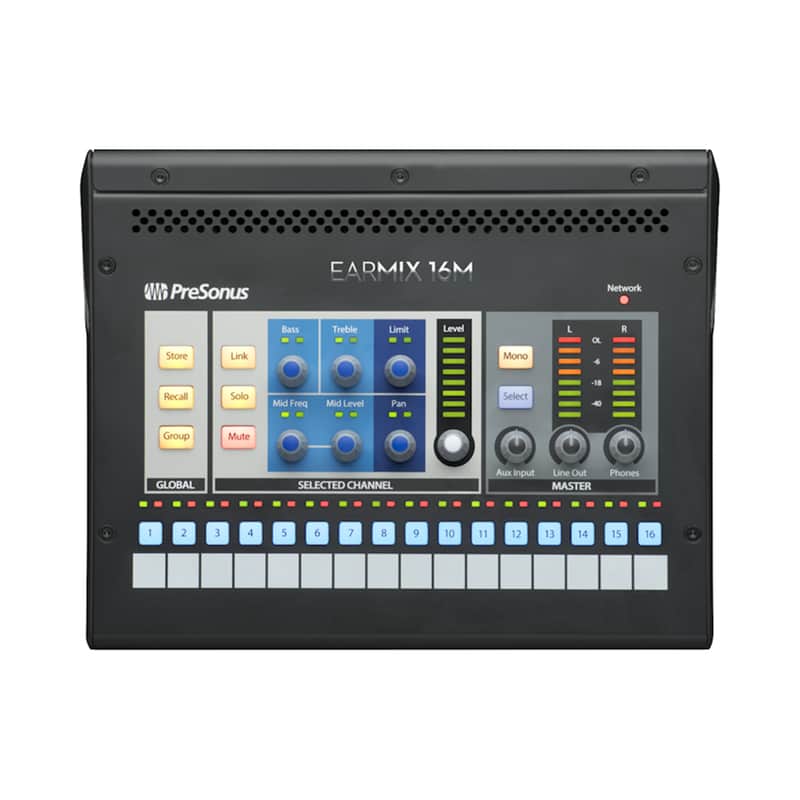

Designed to work seamlessly with PreSonus' StudioLive Series III family of mixers, yet compatible with other AVB-enabled systems, the PreSonus EarMix™ 16M personal monitor mixer accepts 16 mono channels of input via AVB networking. An aux input admits an external source to the local mix. You get stereo channel linking and channel grouping, along with three-band EQ and limiting for each channel and the main mix, balanced ¼-inch TRS L/R outputs, and a loud, clear headphone amplifier that can drive low impedance devices such as high quality in-ear-monitors. Two AVB jacks enable daisy chaining; network up to 24 units with a StudioLive Series III mixer. The EarMix 16M can be powered from the included external power supply or over Ethernet (PoE) from a compatible switch.

General
SERIES: EarMix
COLOR: Black
COUNTRY OF ORIGIN: CN

Electronics
VOLTAGE: 24V DC

Performance
DIGITAL AUDIO DYNAMIC RANGE: 115 dB (A-Weighted, 48 kHz)

Outputs
HEADPHONE OUTPUTS FREQUENCY RESPONSE: 20 Hz to 20 kHz, +/-0.5 dB
HEADPHONE OUTPUTS MAXIMUM OUTPUT: 150 mW /Channel at 60 Ω
HEADPHONE OUTPUTS TOTAL HARMONIC DISTORTION: 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
LINE OUTPUTS CONNECTION TYPE: 1/4" TRS, Balanced
LINE OUTPUTS MAXIMUM OUTPUT LEVEL: +18 dBu, ±0.5 dBu
LINE OUTPUTS OUTPUT IMPEDANCE: 100 Ohms

Hardware
DIGITAL AUDIO AVB AUDIO NETWORK PORTS: RJ45

Measurements
PRODUCT DEPTH: 7.6" (19.3cm)
PRODUCT HEIGHT: 1.8" (4.57 cm)
PRODUCT WIDTH: 9.4" (23.8 cm)

Miscellaneous
SUPPORTED SAMPLE RATES: 48 kHz, 44.1 kHz
