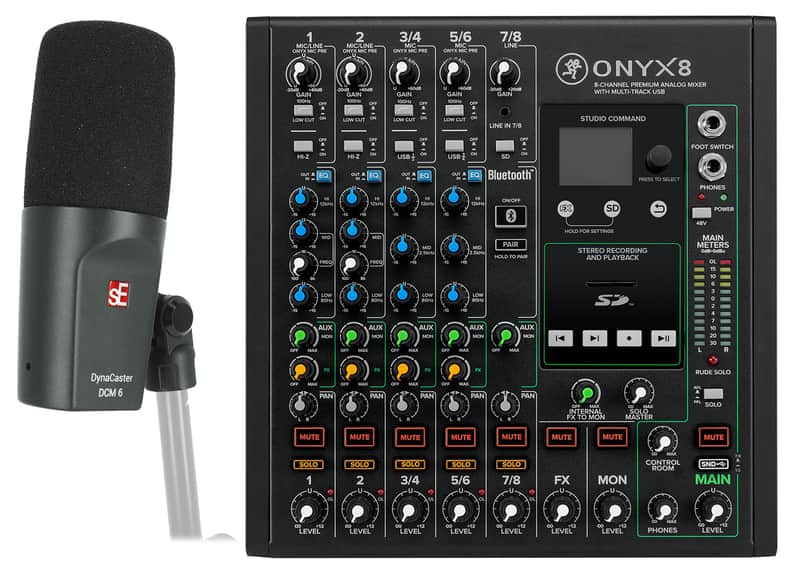

Package Includes:

• (1) Mackie ONYX8 8-Channel Analog Mixer w/ Multi-Track USB/3-Band EQ+Bluetooth
• (1) Se Electronics DynaCaster DCM6 Front-Addressed Broadcast Podcast Microphone Mic

How To Set Up Your Podcast:

Description:

The Mackie Onyx8 8-Channel Premium Analog Mixer with USB is the ultimate compact solution for live audio, home recording, and content creation. 24-Bit / 96kHz multitrack recording, award-winning, high-gain Onyx mic preamps, and an end-to-end ultra-low-noise design deliver the sound quality professionals demand. Packed with features including powerful DSP effects, British-style Perkins EQ, full-color display, and integrated recording and playback from an SD card. The Onyx8 Premium Analog Mixer gives you the power you need to capture your best performance with pristine fidelity at home or on the go.

Features:

Classic Sound, Modern Performance

• Legendary Onyx mic preamps and Perkins "British Style" EQ alongside premium analog circuitry deliver professional studio-quality sound and ultra-low noise.

A Complete Multi-Track Recording Solution

• Record and playback to and from your Mac/PC via USB or recording your main mix directly to an SD card

Unmatched Control and Flexibility

• Onyx8 is equipped with Studio Command, a full-color display and single knob interface for managing built-in FX and SD card file browsing/recording/playback

Built-Like-A-Tank

• Mackie's Legendary "Built Like A Tank" Design means your Onyx mixer will be cranking out the mix for years to come

Classic Sound, Modern Performance

• 4 award-winning Onyx mic preamps provide up to 60dB of gain
• Premium analog circuitry delivers studio-quality sound and keeps noise to a minimum
• Analog/USB channel strips with flexible routing
• Legendary Perkins "British style" EQ with sweepable midrange offers classic sounds of the 60's and 70's
• Robust digital effect engine, including user-customizable reverbs, delays, and more, with a dedicated FX EQ

Record and Playback via SD Card or USB

• High-resolution 8x4 96kHz / 24-bit multi-track recording to Mac/PC via USB
• Direct to SD card stereo recording and playback
• Channel-assignable 4-track USB return (2 stereo pairs)
• Send your Main Mix to USB via a dedicated switch

Studio Command - Powerful and Intuitive Full-Color Display and Single-Knob Interface

• Easy navigation of FX parameters, onboard SD recording and playback
• Visually browse files on the SD card via the built-in display
• Dedicated physical buttons for Previous, Next, Record, and Play/Pause
• Store up to 6 user FX presets for easy recall

Professional High-Resolution FX Processor

• Utilize built-in effects for live performances, streams, and beyond
• Reverb, delay, chorus, and more
• Dial in the perfect sound with adjustable parameters and dedicated EQ
• Built-in effects presets provide that finishing touch out of the box
• Store up to 6 custom user presets

Bluetooth® Streaming - Go Wireless

• Pair your Bluetooth enabled device and stream audio directly to a channel on the mixer
• Streamed audio can be routed to an Aux Send and the Main Mix

Powerful Mixing Toolkit

• 3-band Perkins EQ with On/Off hard bypass switch on all channels
• Hi-Z switches allows direct connection of guitars, basses, and other instruments
• 100Hz low-cut filter and 48V phantom power on all mic channels
• Stereo 1/8" input and Bluetooth streaming
• Stereo line inputs
• Aux/Monitor output with dedicated per-channel send control
• Dedicated Control Room outputs
• Headphone output with dedicated level control
• 12-segment stereo meters
• Overload indicators on all channels
• PFL/AFL channel solo
• Footswitch input for FX Mute (footswitch not included)

Hit the Ground Running with Powerful Software and Plugins

• Recording software and plugin bundle
• Waveform™ OEM recording software and plugin bundle
• DAW Essentials™ Bundle for Waveform™ OEM, with 16 powerful plugins like Equaliser, Compressor, Reverber8, and Limiter

Rugged Chassis and Professional Design

• Backlit Mute and Solo buttons provide a positive tactile feel and clear visual feedback
• Sealed rotary encoder resists dust and grime
• Built-Like-A-Tank™ heavy steel chassis
• High-visibility, high-contrast controls
• Rugged, QuickGrip™ side cheeks offer convenient mobility and protection
• Weight: 7 lb / 3.2 kg
• Dimensions: 11 × 10.5 × 4.5 in / 279 × 267 × 115 mm

What's in the box:

• DynaCaster DCM6 Microphone
• Thread Adapter
• sE Logo Sticker
• User Manual with warranty card

Description:

Rugged, Dynamic, Boosted - Be heard...But better!
The latest addition to sE's family of DynaCaster dynamic studio mics, the DCM6 front-addressed active cardioid dynamic microphone integrated with DYNAMITE technology! From recording your next song to building a community on your favorite platform, the DCM6 ensures a robust signal with an extra 30dB of clean, transparent gain to make your time creating effortless.

Recommended Use
Recording, broadcasting, podcasting, livestreaming, vocals, voice, instruments.

Features:

• Integrated DYNAMITE Technology provides an extra 30dB of clean, transparent gain at the push of a button
• Front-addressed cardioid dynamic - tailored for speech
• Custom-developed for a smooth, natural sound on any voice
• Isolates your voice from unwanted ambient noise
• Complete with professional studio essentials out of the box for immediate creativity
• Allows for obstruction-free camera angles by eliminating the need for an external shock mount & pop filter
• High swivel range and tested on all types of mic booms
• Robust rock-solid housing and corrosion-free premium finish for years of demanding use
• Gold-plated XLR connectors for loss-free, reliable signal connection

Specifications:

Sound:

• Capsule: Dynamic
• Voice Coil: Copper
• Magnet: Neodymium
• Directional Pattern: Cardioid
• Frequency range: 40 Hz - 18 kHz
• Sensitivity: 2.5 / 79 mV/Pa (-52 / -22 dBV)

Power:

• Powering: +48V Phantom power
• Current consumption: 3.1 mA
• Electrical Impedance: 600 / 135 Ohms
• Recommended Load Impedance: > 1k Ohms
• Connectivity: 3-pin male XLR connector

Dimensions:

Diameter:

• 158 x 86 x 62 mm (L x W x H)
• 6.22 x 3.39 x 2.44 in. (L x W x H)
• Weight: 518 g / 18.27 oz.
