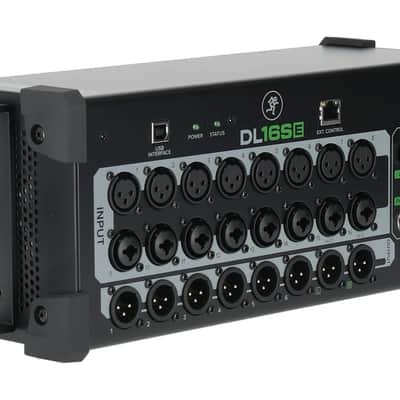

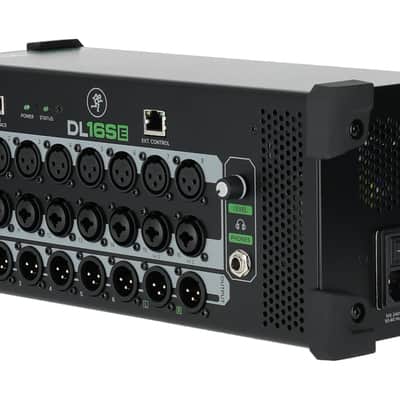

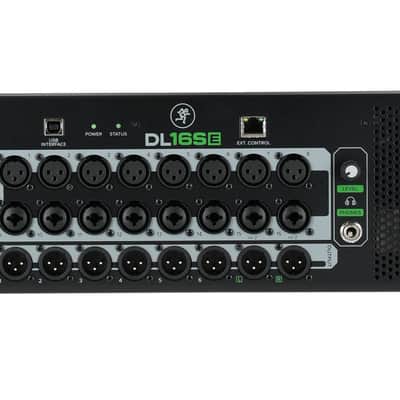

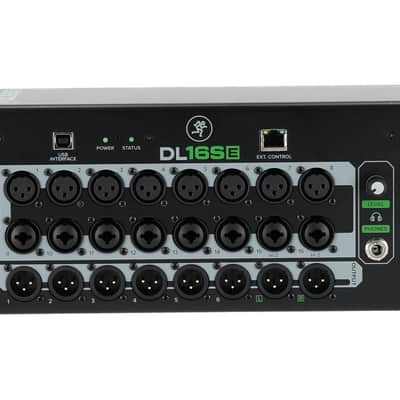

Mackie DL16SE 16-Channel Digital Rack Mixer

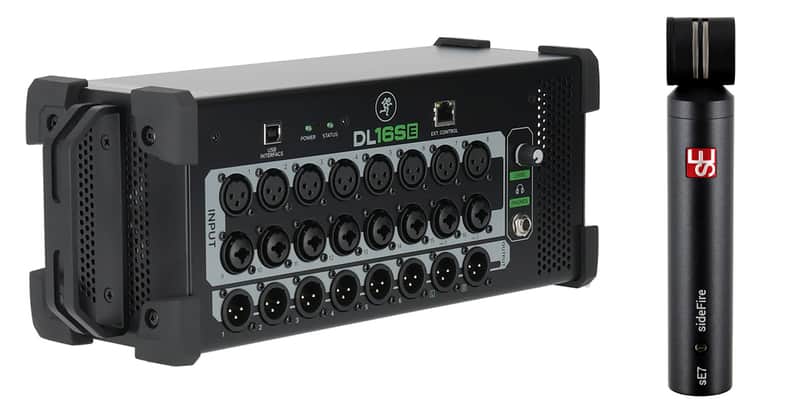

Package Includes:

• (1) Mackie DL16SE 16-Channel Digital Rack Mixer w/Onyx+ Preamps+16x16 Interface
• (1) Se Electronics sE7sF SideFire Live Sound / Studio Recording Condenser Microphone

Description:

16-Channel Digital Rack Mixer

The Mackie DL16SE digital mixer delivers proven mixing power with legendary Onyx+ mic preamps in a stage-friendly, rack-mountable design. Just connect to your wireless router and take total control with the intuitive Master Fader SE app.

Command Your Mix:

The Mackie DL16SE digital mixer delivers proven mixing power with legendary Onyx+ mic preamps in a stage-friendly, rack-mountable design made to withstand real-world abuse. Connect to your wireless router and get mixing quickly with the industry-leading, multi-platform Master Fader SE app. Create stunning multitrack recordings and get playback for a virtual soundcheck via USB I/O. Loaded with per-channel and output DSP plus 4 FX processors, DL16SE gives you all the mixing power you need for proven professional sound

Features:

• 16 total inputs with Onyx+ preamps
• Stagebox design with included rack ears
• Connect to wireless router via Ethernet
• Control with Master Fader SE app
• Powerful processing with EQ, filters, compression, FX and more
• 16x16 USB audio interface
• Waveform™ OEM software included

• Convenient stagebox/rack design with built-in handle
• 16 input channels with Onyx+ preamps (8 XLR, 8 XLR/TRS combo with 2 Hi-Z)
• 8 fully assignable XLR outputs plus headphone output
• Connect to your wireless router and control with Master Fader SE app
• Per-channel EQ, filters, gate, compression and RTA/Spectrograph
• 4 stereo FX busses with studio-quality reverbs, delays, chorus and more
• Multitrack 16x16 USB audio interface for recording and playback
• Waveform OEM professional software and plugins included

Wireless Mixing

• Take complete control via iOS, Android, macOS or Windows devices
• No set FOH position — mix from anywhere
• Control from up to 20 separate devices at once
• Access Limiting allows performers to control their own monitor mixes without giving access to critical mixer functionality
• Universal Ethernet connection supports your wireless router of choice

Powerful Processing & Routing

• 16 preamps with 4-band PEQ + HPF, gate, compression and RTA/Spectrograph
• 16 stereo-linkable input channels plus stereo return channel
• 8 output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter, alignment delay and RTA/Spectrograph
• 6 stereo-linkable aux sends
• 6 stereo-linkable subgroups
• Main L/R bus
• 6 VCAs and 6 mute groups
• 4 stereo FX processors featuring studio-quality reverbs, delays, choruses, flangers and many more with dedicated sends and returns
• Full I/O routing with A/B sources per channel
• Assignable oscillator including pink/white noise and sine waves
• Modern and Vintage options for comp/gate and EQ

Multitrack Recording & Playback

• 16x16 USB 2.0 audio interface for Mac or PC
• Record the show for later mixdown
• Perform a virtual sound check
• Play intermission music, backing tracks and more directly into a dedicated stereo return channel
• Flexible, low-cost studio recording solution
• Utilize Mac or PC audio plug-ins in a live environment

Master Fader Se Control App

• Intuitive and easy to master
• Fast navigation with view groups and overview
• Quick setup with tons of factory and user-definable presets
• Access Limiting allows flexible customization of the user interface and prevents unwanted adjustments from other users
• Quickly access channel processing, signal routing and a massive suite of great sounding effects with presets to get you started
• Export presets, shows and complete system backups via Dropbox, email and more
• Set up the show before you arrive at the venue with offline show creation
• Available on iOS, Android, macOS and Windows

Record & Produce Like A Pro

• Waveform™ OEM professional software and plugin packages included
• The DAW Essentials™ Bundle for Waveform OEM includes 16 powerful plugins like Equalizer, Compressor, Reverber8 and Limiter

What's in the box:

• sE7 sideFire Microphone
• Mic Clip (with thread adapter)
• Wind Screen

Description:

90° Straight Out of the Box
The sE7 sideFire is a variant of our sE7 high-quality back-electret small-diaphragm condenser microphone intended for a wide range of studio and live sound applications, from acoustic guitars to pianos to drums and beyond, with a rotated capsule to allow for close miking.

Features:

• Side address capsule to allow for miking of tight spaces
• Optimized acoustic design, discrete class-A circuitry and a transformerless output
• Clear, natural sound quality at all frequencies
• Switchable -20dB attenuation pad
• High sound pressure level (SPL) handling capability
• Switchable low-cut 80 Hz filter
• Ultra low-noise components

Specifications:

• Recommended Use

  • Acoustic guitar, choir, orchestral + strings, piano, woodwinds, drums, percussion, cymbals / OH
• Components

  • Capsule: 1 / 2" Back-electret condenser capsule
• Power

  • Electrical Impedance: <200 Ohms
  • Recommended Load Impedance: >1k Ohms
  • Connectivity: 3-pin male XLR connector
  • Powering: 48V Phantom Power (P48 according to IEC 61938)
• Sound

  • Polar Patterns: Cardioid
  • Frequency Range: 20 Hz - 20 kHz
  • Sensitivity: 19 mV / Pa (-34.5 dBV)
  • Max SPL: 136 / 156 dB (0 / 20 dB attenuation pad)
  • Equivalent Noise Level: 16 dB
  • Dynamic Range: 120 / 140 dB (0 / 20 dB attenuation pad)
  • Signal to noise ratio: 78 dB
  • Low-cut filter: 80 Hz, 6 dB / Oct, switchable
  • Attenuation Pad: 20 dB, switchable
  • Current Consumption: 3.0 mA
• Dimensions

  • Mic Diameter: 23 mm (0.91 in.)
  • Mic Length: 130 mm (5.12 in.)
  • Mic Weight: 163 g (5.75 oz.)
