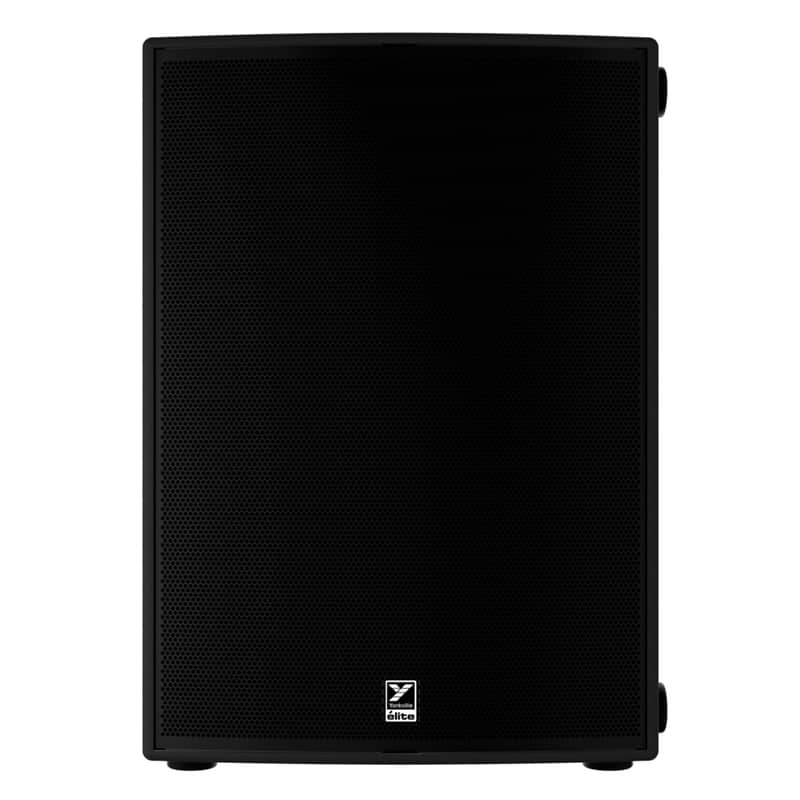

Yorkville EL18S Elite Series 18" 3200W Powered Subwoofer Active Sub

Elite 18” Powered Subwoofer

Streamlined and straightforward, our new Elite range offers essential features and premium components to deliver high output and exceptional sound quality for professional users.

The EL18S is a powered subwoofer with a 18" woofer that delivers 3200 watts of peak power (1600 watts program) and goes down to 35 Hz.

The rugged cabinet is constructed from high-quality birch and features pole mount adapters on the top and side. The rear panel features two XLR inputs, full-range and high-passed XLR outputs, and powerCON TRUE1 compatible input and output connectors.

Features

• 3200 W Peak Power (1600 W Program)
• 18" Woofer with 4" Voice Coil
• Onboard Limiter
• 2 XLR Inputs with Full-Range Parallel Outputs
• 2 High-Passed XLR Outputs
• 15mm Birch Plywood Construction
• System Type : Powered Subwoofer
• Power Rating : 3200 W Peak (1600 W Program)
• Max SPL : 140 dB Peak (134 dB Continuous)
• Frequency Response : 35 Hz - 100 Hz (+/- 3 dB)
• Crossover Frequency : 100 Hz
• LF Driver(s) : 18" with 4" Voice Coil Ceramic Magnet
• Power Cable : powerCON TRUE1 Connectors (Input / Output)
• Power Consumption (typ/max) : 4A, 10A
• Inputs : 2x Combo-jack (XLR / 1/4” TRS)
• Outputs : 2x XLR High-Pass, 2x XLR Link (Full Range)
• Level Controls : Yes
• LED Indicators : Power, Activity, Protection
• Wheels : 2x Rigid Casters, 2x Swivel Casters
• Bar Handles : 1x Top, 4x Side, 1x Bottom
• Flying Hardware : No
• Pole Mount Adapter : 1x Top, 1x Side
• Enclosure Materials : 15mm Birch Plywood
• Grille : Powder-Coated Steel
• Covering / Finish : Textured Paint
• Dimensions (DWH) : 24.8" x 25.7" x 35.7" (Depth with Casters 29.8”), 63 cm x 65.3 cm x 90.7 cm (Depth with Casters 75.7 cm)
