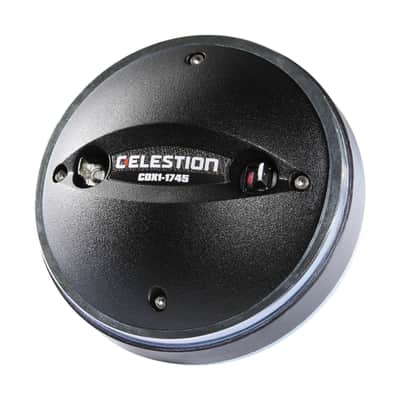

Celestion CDX1-1745 1" Exit Compression Driver - 8 Ohm
This seller has not set a shipping cost for Portugal. Please contact them to ask about shipping.
Price€109.92
Incl. VAT
+ Shipping
Listed:24 days ago
Views:4
Saves:0
Offers:0
Brooklyn, NY, United States
30-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
1-inch exit ferrite magnet compression driver
Features
- Single piece PETP diaphragm and surround
- Sound Castle diaphragm assembly
- 2,200Hz recommended min. crossover freq (12dB/oct)
- Bolt fitting
- 80W Continuous power rating
- 110dB Sensitivity
- 1.75in Voice coil diameter
- Power rating : 40W
- Continuous power rating : 80W
- Rated impedance : 8Ω
- Sensitivity : 110dB
- Frequency range : 1200-20,000Hz
- Recommended min. crossover (12dB/oct) : 2200Hz
- Magnet type : Ferrite
- Voice coil diameter : 44mm / 1.75in
- Voice coil material : Edgewound copper clad aluminium
- Diaphragm material : PETP film
- Surround material : PETP film
- Additional impedances : 16Ω
- Power rating : Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.
- Continuous power rating : Defined as 3dB greater than the AES rating.
- Sensitivity : Measured on axis at 1W, 1m, using typical horn, in 2Ï€ anechoic environment.
Mounting Information
- Width : 120mm / 4.7in
- Depth : 56mm / 2.2in
- Fitting : Bolt (2/3 M6 holes on 76/57mm, 3.0/2.24in PCD)
- Screw version : CDX1-1746
- Throat exit : 25mm / 1in
Horns and repair kits
- T5510 : Diaphragm repair kit (8Ω)
- T5523 : Diaphragm repair kit (16Ω)
- T5359 : H1-9040P Horn
- T5134 : H1-7050 'No Bell' Horn
