Features

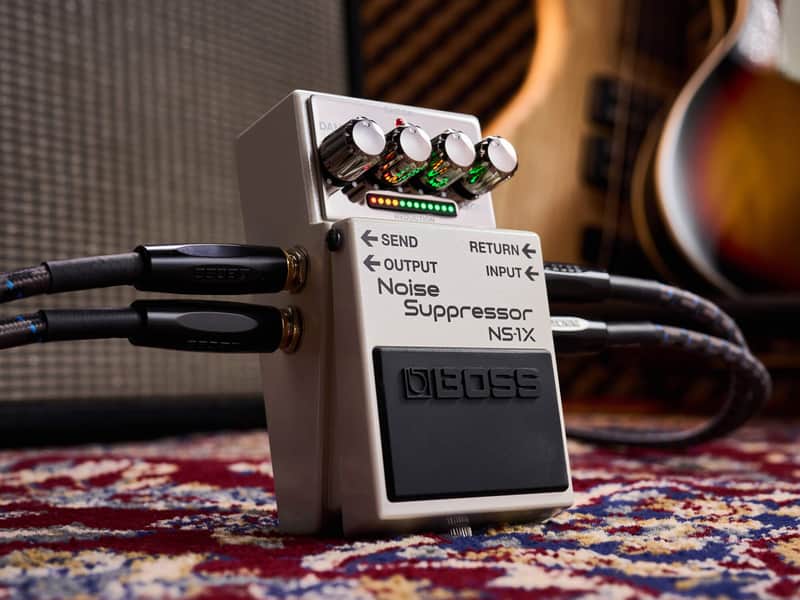

• Next-generation noise suppressor and gate for guitar, bass, and other electronic musical instruments
• Intelligent BOSS MDP technology eliminates noise with no impact on playing feel or response
• Intuitive operation with Threshold, Decay, and Damp knobs
• Reduction mode for general noise suppression applications
• Gate mode provides ultra-fast noise elimination for tapping, sweep picking, and heavy rhythm styles that rely on high-gain tones
• Mute mode for silencing the instrument signal when the pedal switch is engaged (the pedal operates in user-selectable Reduction or Gate mode when the switch is off)
• Reduction indicator that dynamically displays the current noise suppression status
• Send/return loop for optimized noise elimination with overdrives, distortions, and other noise-producing pedals
• DC Out for distributing power to other pedals (requires optional PSA adaptor and PCS-20A parallel cable)
• BOSS five-year warranty

Specs

• Sampling Frequency: 48 kHz
• AD Conversion: 24 bits + AF method
• DA Conversion: 32 bits
• Processing: 32-bit floating point
• Nominal Input Level: Input, Return: -20 dBu
• Maximum Input Level: Input, Return: +7 dBu
• Bypass: Buffered bypass
• Controls: MODE knob, DECAY knob, THRESHOLD knob, DAMP knob, Pedal switch
• Connectors: INPUT jack: 1/4-inch phone type, RETURN jack: 1/4-inch phone type, OUTPUT jack: 1/4-inch phone type, SEND jack: 1/4-inch phone type, DC IN jack, DC OUT jack
• Power Supply: Alkaline battery (9 V, 6LR61), AC adaptor (PSA series: sold separately)
• Current Draw: 60 mA
• Expected battery life under continuous use, Alkaline: Approx. 6.5 hours
• Dimensions: 2-7/8 (W) x 5-1/8 (D) x 2-3/8 (H) inches
• Weight (including battery): 1 lb., 0.3 oz
