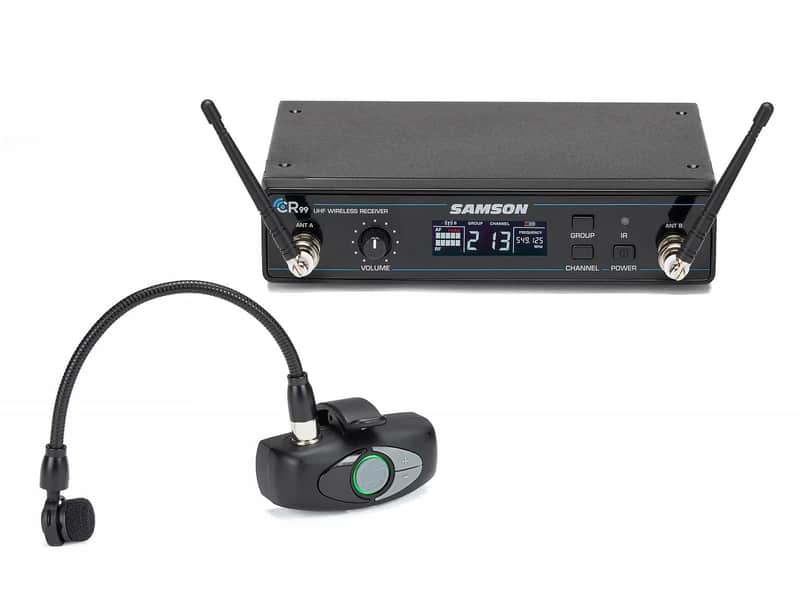

AirLine AWX Wind Instrument Wind Instrument Wireless System The AWX Wind Instrument System offers frequency-agile UHF wireless freedom via the world's smallest clip-on transmitter that packs high-definition sound, an internal rechargeable battery, and 300' of reliable performance into a device that fits in the palm of your hand. It also features a shock-mounted microphone and adjustable gooseneck ideal for saxophones, trumpets, trombones and other wind instruments. ATX-tend Your Reach The AWX system continues Samson's longstanding commitment to wireless innovation. Designed to be an extension of your instrument rather than a separate component, the ATX Wireless Transmitter clips directly onto your instrument's bell without the need for a cable, allowing you to command the stage with confidence. It features infrared sync for wirelessly matching receiver and transmitter frequencies, easy-to-access gain and mute controls, a low-battery LED indicator, and an 8-hour rechargeable lithium-ion battery. Mic for Winds The ATX transmitter features an HM60 condenser microphone with a 3-point halo isolation mount to minimize noise from mechanical vibration. The microphone capsule offers a supercardioid pickup pattern that can handle up to 125dB SPL, ideal for the sudden attack of wind instruments. The HM60 also features an adjustable 8.5" gooseneck (with P3 connector) for optimal placement of the microphone in front of your instrument's bell. Road-agile The system's rack-mountable CR99 wireless receiver offers frequency-agile operation and 80 selectable channels for reliable performance wherever you are. The receiver's True RF Diversity design minimizes dropouts, while tone key technology eliminates unwanted noise when your transmitter is off or out of range. You Are Now Free to Roam About the Stage Watch the horn section of the Funk Filharmonik demonstrate the Samson AWX Wind Instrument Wireless System! You too can be 'Free to Roam' with the AWX transmitter mounted directly on the bell of your instrument... No cables! No belt packs! Features / Specs AWX Wind Instrument System Frequency-agile UHF wireless system 80 operating channels across 24MHz bandwidth Up to eight simultaneous systems per frequency band (region dependent) AC adapter and rackmount kit included ATX Wireless Transmitter Clips directly to instrument bell (no beltpack or cable required) HM60 condenser microphone capsule with supercardioid pickup pattern Handles up to 125dB SPL 3-point halo isolation mount 8.5" gooseneck (P3 connector) for optimal mic placement Windscreen included Up to eight hours of battery life using built-in rechargeable lithium-ion battery Sealed gold contact charging connector for included USB-style charger Low battery LED indicator 300' operating range (line-of-sight) Variable Gain control One-touch Mute CR99 Wireless Receiver Rugged all-metal, rack mountable chassis Multifunctional backlit LCD (RF, audio, transmitter battery levels) Group scan for easy single or multi-system setup IR sync wirelessly matches receiver and transmitter frequency True RF Diversity design minimizes dropouts Tone key prevents unwanted noise when transmitter is off/out of range Removable 1/4-wave antennas Balanced XLR and 1/4" outputs Specifications System Working Range 300' (100m) line of sight Audio Frequency Response 50 Hz - 15 kHz T.H.D. (Overall) <1% (@AF 1 kHz, RF 46 dBu) Dynamic Range >100 dB A-weighted Signal to Noise >95 dB Operating Temperature ?10?C (14?F) to +60?C (+140?F) Tone Key Frequency 35 kHz ATX Transmitter Input Connector Mini-XLR (P3) Input Impedance 3k? Input Gain Range 20dB RF Power 10mW EIRP Power Requirements 3.6V 500mAh Lithium Ion rechargeable battery Battery Life 8 hours Dimensions 5.9" x 6.7" x 3.9" / 150mm x 170mm x 100mm Weight 0.13lb / 60g CR99 Receiver Audio Output Level - Unbalanced +14 dBu Audio Output Level - Balanced +9 dBu Audio Output Impedance - Unbalanced 810 Ohms Audio Output Impedance - Balanced 240 Ohms Sensitivity -100 dBm / 30 dB sinad Image Rejection >50 dB Operating Voltage 15 VDC 200mA Dimensions (LxWxH) 7.87" x 5.9" x 1.6" / 200mm x 150mm x 42mm Weight 2.08lb / 0.946kg
