Looking for that legendary Neve analog glue without paying the "brand new" retail tax? This Neve 8816 has barely been used, has extremely low hours on it, and functions absolutely flawlessly. It is cosmetically perfect except for a classic studio-stacking mishap on the top panel.

Before this unit made its way into a proper rack, it was temporarily stacked on a workspace with a potholder separating it and an AtoD converter and left an imprint of a pot holder on the casing, it is in pristine condition and has very few hours on it.

In liu of the unseen cosmetic detail I am throwing in a 15 ft. DB25 to XLM snake cable so you can input up to 8 channels off the rip!!

———————
Core Technical Specifications

    •    Channel Count: 16 line inputs (expandable up to 512 channels by cascading multiple units).

    •    Topology: Classic Neve 80-series analog voltage mixing with dual Marinair transformers on the mix bus.

    •    Computer Connectivity: USB. Compatible with Neve's Total Recall software for Mac and PC, allowing instant resetting of all stepped controls.

    •    A/D Converter: Optional 192kHz A/D conversion card (AES output).

    •    THD: Better than 0.02% (measured at +20dBu into 10 Ohms with 80Hz filter).

    •    Frequency Response: ±0.5 dB from 20 Hz to 20 kHz.

Routing and Control Features

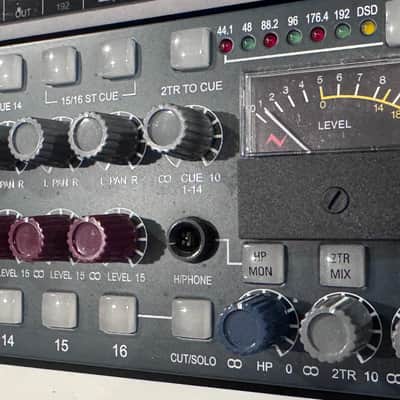

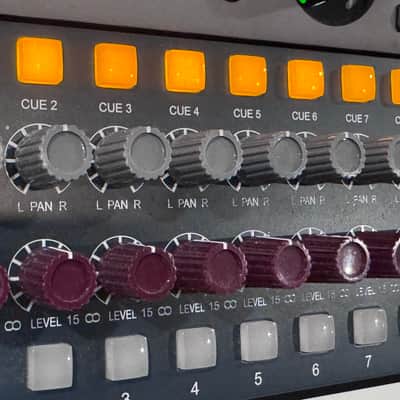

    •    Channel Controls: Rotary level, pan, cut/mute, solo, and cue buttons for each of the 16 channels.

    •    Inserts: Main stereo mix insert points and dedicated sum/difference (Mid/Side) insert points.

    •    Stereo Width Control: Proprietary circuit that sweeps from mono to an enhanced, hyper-wide stereo image.

    •    Monitoring: Fully-featured monitor control with Main and Alt speaker outs, independent cue levels, built-in hidden talkback microphone, and 3.5mm iPod/aux input.

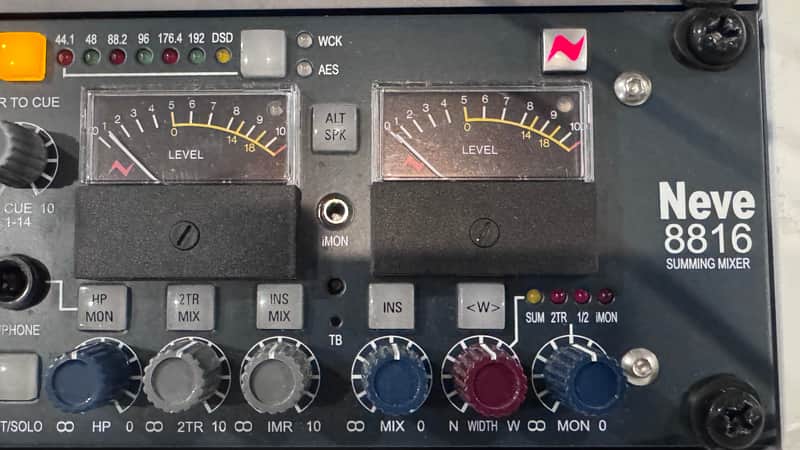

    •    Metering: Two quasi-PPM (Peak Programme Meter) meters for the main outputs.

Connections

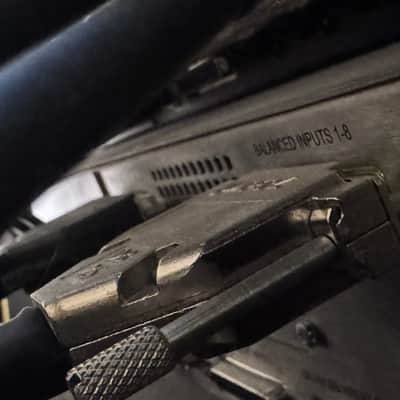

    •    Inputs: 2× DB-25 connectors for the 16 channels, plus 2× DB-25 for insert sends/returns.

    •    Outputs: DB-25 connector for Main mix out; 1/4" TRS for Main, Alt, and Mix outputs.

    •    Headphones: Dual 1/4" headphone outputs (front and back).

    •    Wordclock: BNC connections for synchronization.

Physical Specs

    •    Form Factor: 2U Rackmount

    •    Dimensions: 19" (W) × 3.5" (H) × 15.4" (D)

    •    Weight: 16 lbs (7.3 kg)
