Rockville DS10 3500 Watt Peak/900w RMS 2 Channel Power Amplifier+Speakon Cables

Package Includes:

• (1) Rockville DS10 3500 Watt Peak/900w RMS 2 Channel Power Amplifier 1U Rack Pro Amp
• (2) Rockville RCSS1610 10' 16 AWG Speakon to Speakon Speaker Cable 100% Copper

Description:

The Rockville DS10 delivers true 1000W RMS power, making it a powerhouse for professional DJs, live sound applications, and home audio setups. This lightweight Class-D amplifier is designed for high efficiency, offering 2 x 500W RMS at 4 ohms and 2 x 300W RMS at 8 ohms, ensuring clean, consistent power output without distortion or overheating. You can also bridge the amp to get 1000w RMS x 1 @ 8 ohms.

At just 6.6 lbs and taking up only 1U of rack space, the DS10 is slim, portable, and incredibly easy to integrate into your setup. Whether you're powering PA speakers, subwoofers, or monitor systems, this amp gives you flexibility and control with a built-in crossover switch (full-range, 110Hz LPF, 110Hz HPF) to optimize your sound.

Equipped with XLR inputs and Speakon outputs, the DS10 ensures reliable connectivity, while front-panel LED meters provide precise volume monitoring in dB per channel. Safety is built in with short circuit, thermal overload, and DC overload protection, plus a built-in limiter to protect your speakers from distortion and clipping.

Power Ratings:

RMS Power Output:

• Stereo 4 Ohm: 2 x 500W
• Stereo 8 Ohm: 2 x 300W
• Bridged 8 Ohm: 1 x 1000w

Peak Power Output:

• Stereo 4 Ohm: 2 x 2000W
• Stereo 8 Ohm: 2 x 1200W
• Bridged 8 Ohm: 1 x 4000w

Terminals:

Input Terminals:

• XLR Ch1 & Ch2 inputs


Output Terminals:

• Speakon outputs Ch1 & Ch2


Features:

• Rockville DS10 1000w RMS Class D 2 Channel Power Amplifier Pro/DJ Amp
• 1U rack space and only 6.6 Lbs
• Built in crossover switch (full range, 110 LPF Hz, 110 HPF Hz) allows amp to be used with full range PA speakers, or Subwoofer(s)
• Front Panel displays volume in dB per channel via LEDS
• Built in limiter protects your speakers from distortion and clipping
• Power, signal, limit, and fault LED indicators on front of amp
• Speaker short circuit, thermal over load, DC over load
• Built-in variable speed quiet cooling fans
• Stereo mode is perfect for (2) speakers or (4) speakers in a left and right configuration
• Parallel mode gives you dual mono output signal which is perfect for monitor use when you want all sounds coming out of each speaker instead of a left/right configuration
• Channel 1 & 2 Limiting Led Indicators
• Channel 1 & 2 Separate Level Controls
• Heavy duty rack mount ears and removable feet give you multiple options
• Level controls for precise setting and matching of sensitivity
• Can power (2) or (4) 8-ohm speakers, (2) 4-ohm speakers (4) or (8) 16-ohm speakers
• User serviceable fuse (10A, 250V)
• Frequency Response:10 Hz – 40 Khz at +/-3dB
• Input Impedance: 10K Ohm Balanced
• Input signal sensitivity: 540mV – 2.5V
• Stereo Separation (Crosstalk) : -57.7dB at 5kHz
• Damping factor: ( 100Hz, 10w, 4 ohms): 165
• Output impedance at speaker terminals: 0.0836 Ohms
• THD+N vs Frequency <0.07% at 1 Watt RMS 20Hz-20kHz
• Signal-to-Noise: 90 dBA max output
• SLEW RATE (input filter limited) : 29v/uS
• Power Requirements: 110V / 50-60Hz
• Dimensions: 19” x 10.24” x 1.97”

Key Features:

• True 1000W RMS Power: 2 x 500W @ 4O / 2 x 300W @ 8O / 1 x 1000w @>
• Slim & Lightweight: Only 6.6 lbs and 1U rack-mountable
• Versatile Crossover: Choose Full Range, 110Hz LPF, or 110Hz HPF
• Smart Protection: Built-in limiter, thermal, DC Overload & short circuit protection
• Quiet Cooling: Variable Speed low-noise fans prevent overheating (speed increases as temperature increases)
• Pro Connectivity: XLR inputs & Speakon outputs for secure connections
• Stereo & Parallel Modes: Use for two speakers, four speakers, or monitors

With high efficiency, rock-solid reliability, and unmatched power for the price, the Rockville DS10 is the perfect amplifier for DJs, bands, event venues, and pro audio setups. Whether you're running a high-energy gig or or powering speakers in your restaurant, this amp delivers the clean, punchy sound you need - without the bulk.

Video of RCSS SPEAKON CABLES:

Video of RCSS1610:

Description:

All Rockville pro audio cables are made with 100% copper which boosts the efficiency of the cable. There is nothing better than 100% copper. Most of the cheaper cables on the market do not use 100% copper, instead they make their cables with CCA (Copper Clad Aluminum). CCA cables do not perform on the level that 100% copper cables perform at. CCA will not conduct signals efficiently. A 12 gauge CCA cable will not even perform as well as a 14 gauge 100% pure copper cable, which will in turn, affect the performance and longevity of your equipment. If you find cables on the market that do not mention the copper content, there is a good chance that they are selling you a cheaper cable that is CCA and not 100% copper. Rockville pays an inspection company to oversee the manufacturing of the product to ensure that we provide a 100% Oxygen Free Copper Cable (OFC). Our OFC cables are less prone to oxidation, and will provide maximum signal transfer.

The other important factor of a cable is the shielding. Most of the good brands on the market have about 85% shielding coverage, so we decided to take our shielding a step further. Rockville cables are shielded with a tight copper mesh, covering 90% of the cable! The high percentage of coverage increases the ability to absorb the Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) that suppresses signal and degrades the performance of equipment. Rockville Cable’s copper shielding provides great flexibility, maintains a durable structural integrity, while decreasing signal interference ensuring enhanced signal clarity with every use.

Features:

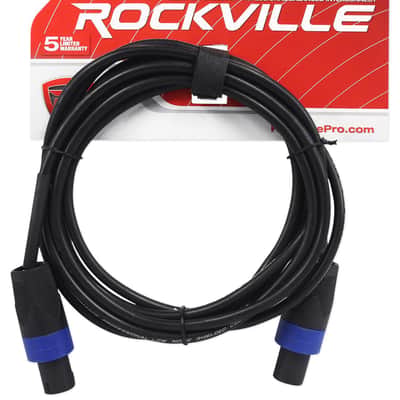

• Rockville RCSS16-10 16 AWG 2-Conductor SpeakON to SpeakON Pro Speaker Cable
• 100% Copper Conductors for Lower Resistance
• Black PVC Jacket for Both Durability and Flexibility
• Intended for High-Current Applications Only, Not Line-Level Signals
• Length: 10 Ft
• Gauge: 16
