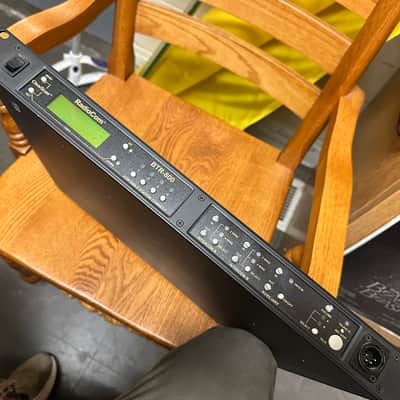

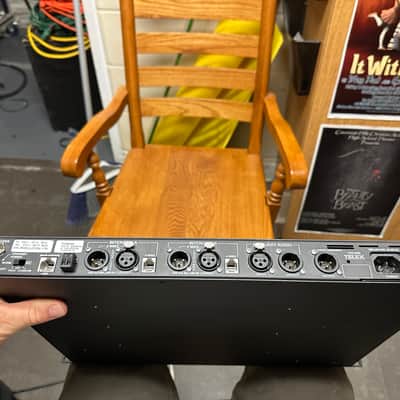

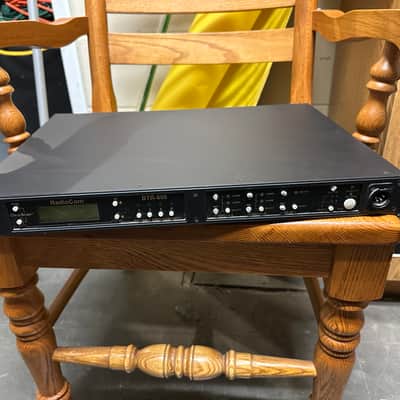

RTS Telex RadioCom BTR-800 Base Station Wireless Intercom System - e 88 Band Telex RadioCom BTR-800

We purchased this Base Station in the Fall of 2017, and it has lived installed in a rack ever since. We purchased it because it was the only option at the time that would tie into our existing Telex system and give us wireless functionality for a few of our key people onstage. Since then, the head-end of the wired system has met its end, and we decided to change our eco-system. This is the one piece that was still in really good shape, and we wanted it to find a good home for it. Here are the specs from the Manufacturer:

OVERVIEW:
The Telex BTR-800 is a 2-channel, frequency-agile UHF wireless intercom Base Station, with channel access from each of four full-duplex beltpacks, stage announce output with relay closure, wireless talk around (ISO), the patented Enhanced ClearScan channel search feature, and a talk/listen headset station at the base.

The BTR-800 features a transparent graphical user interface and a backlit display, with advanced technology functions such as combination tone code/RF noise squelch and DSP digital audio processing.

This unit has an A5F headset jack and works on HE: 500 to 518 MHz Transmit / 590 to 608 MHz Receive frequencies.

Wireless UHF intercom Base Station with frequency agility, full-duplexing, and huge selection of available frequencies organized in independent 18 MHz bandsFactory-selected preset frequency groups, 1000' operating range, Transmit power level switchIndependent front Portable Station enable/disable buttons with LED status indicators, Telex or RTS front-panel 4-pin headset connector reads dynamic or electret headset boom mic type automaticallyEnhanced ClearScan two-button frequency selection for optimal, interference- and intermodulation-free location use, ranks available frequencies in order of reliabilitySimultaneous support of up to 4 beltpacks, expandableLarge backlit LCD, transparent, menu-driven Graphic User Interface for simplified navigation and assignmentFull function Talk/Listen headset station with dedicated headset and boom mic volume and gain controls, allows for fifth simultaneous user (director, producer, or engineer) on intercom channelCompatibility with Audiocom, Clear-Com, RTS/RTS matrix wired and wireless intercoms, dedicated 2-wire XLR and 4-wire RJ-11 connectorsDual Voltage power supply for international use, XLR balanced Auxiliary audio input and output connectivity

RTS BTR-800 Specs:

Users per System: 4

Wireless Technology: Analog

UHFOperating Range: 1000' / 304.8 m

Max Transceivers per Band: 4

Wireless Modulation: FM

Duplex Mode: Full-Duplex (FDX)

Frequency: 500 to 518 MHz / 590 to 608 MHz

Mobile App Compatible: No

Number of Channels: 2

Inputs/Outputs: 1 x RJ45

Antenna: 2x 1/2 Wave External, Detachable

AC Input Power: 100 to 240 VAC, 50 / 60 Hz

Power Consumption: 54 W

Environmental Resistance: No

Dimensions: 19 x 14 x 1.7" / 48.3 x 35.6 x 4.4 cm

Weight: 7.1 lb / 3.2 kg

INCLUDED WITH THE BTR-800:

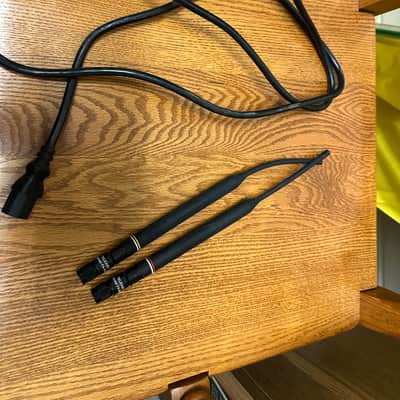

- IEC Power Cord

- Original 1/2 wave Antennae

I also have 2 RTS 1x5 splitters and a wired belt pack that you can have if you want them... Model info:

- (2) RTS TW5W 1x5 Splitters

- (1) RTS BP-6000 (from 2019 - looks to be in excellent condition, but I can't test it since the system has been dismantled)
