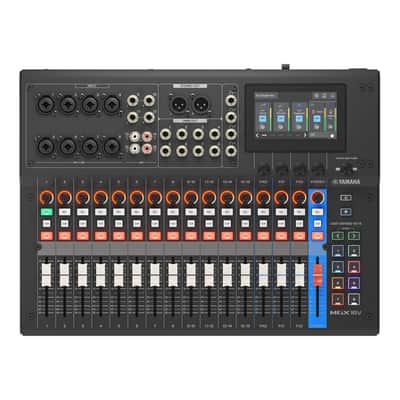

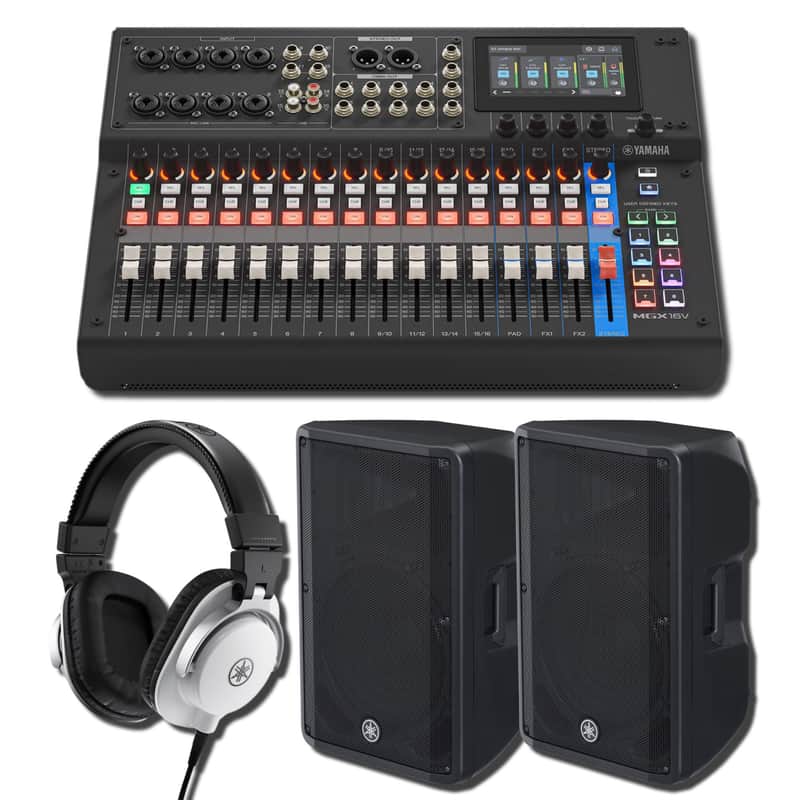

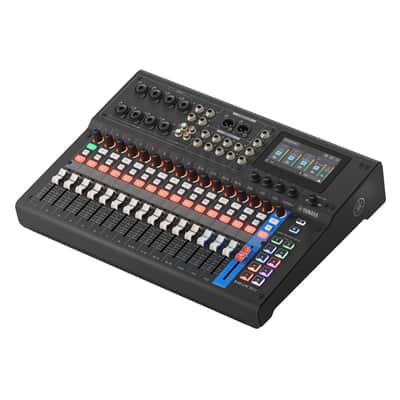

Yamaha MGX16V B 22-Channel Digital Mixing Console White Studio PA Bundle with 2x DBR15 15-Inch 1,000W Powered Speakers and HPH-MT5W White Studio Monitor Headphones

Yamaha MGX16V B Bundle: One Box That Mixes, Captures Video, and Fills the Room

This bundle pairs the Yamaha MGX16V B 22-channel digital mixing console with two DBR15 15-inch 1,000W powered speakers and a pair of HPH-MT5W white studio monitor headphones — a complete, matched-finish audio system for hybrid live events, on-camera streaming, and house-of-worship sound. The console handles the mix, the 4K video capture, and the multitrack recording over a single USB cable; the DBR15 pair delivers the room-filling 132 dB SPL output; and the white headphones give you accurate, isolated monitoring that matches a bright on-camera studio. Everything you need to run sound, stream the show, and record the multitrack is here in one purchase.

How 8 MGX Preamps, a Touchscreen, and Onboard FX Replace a Rack of Gear

The MGX16V B builds on the legacy of the analog MG Series with 8 premium MGX mic/line combo preamps rated at an 86 dB gain range, 125 dB dynamic range, and -128 dBu EIN for an ultra-low noise floor. A 4.3-inch color touchscreen and a Touch and Turn encoder sit beside 16 physical 60 mm faders, so you get screen depth and hands-on control at once. Every channel carries 4-band parametric EQ, a high-pass filter, a noise gate, and a compressor, and the FX suite layers REV-X Hall/Room/Plate reverbs, a multi-band compressor, a Ducker, real-time Pitch Fix, and Voice Changer — all under 0.4 ms of latency. Assistive tools like Auto Gain, Clip Safe, and Scene Recall keep a one-operator show under control.

HDMI-USB 4K Capture and 22-in/22-out USB Turn the Console Into a Streaming Hub

The built-in HDMI-USB interface captures and passes through 4K/60fps or 1080p/240fps video and sends both audio and video to a computer over one USB connection — drop straight into OBS for YouTube, TikTok, or Instagram with no separate capture card. The USB MAIN port streams 22 inputs and 22 outputs at 32-bit/96 kHz for full multitrack into a DAW, while a USB SUB port adds a 2-in/2-out feed for a tablet or second machine. Onboard 16-track recording and 2-track playback to a microSD card give you a standalone capture and a backup if the computer crashes mid-stream. Two Bluetooth 5.0 inputs bring wireless playback into the mix, and +48V phantom power feeds condenser microphones.

Two DBR15 Speakers Deliver 132 dB SPL of Room-Filling 15-Inch Output

Each DBR15 is a 2-way bi-amp powered loudspeaker with a 1,000W Class-D amplifier (800W LF + 200W HF) driving a 15-inch woofer and a 1.4-inch compression driver to a 132 dB SPL peak with low end down to 50 Hz. FIR-X tuning uses a linear-phase FIR filter at the 2.1 kHz crossover for coherent, phase-aligned response, and the DBR15 inherits DSP, amplifier, and transducer technology from Yamaha's flagship DSR and DXR professional series. At 42.6 lb with dual side handles and a steel grille, each cabinet is a genuine one-person load-in. A 35 mm pole socket and M8 rigging threads handle tripod mounting, sub-pole stacking, or fixed-install flying.

D-CONTOUR DSP and a 50-Degree Wedge Make Each Speaker a Main or a Monitor

The DBR15's onboard D-CONTOUR DSP carries FOH/MAIN and MONITOR presets, so a single set-it-and-forget-it choice optimizes each cabinet for front-of-house duty or floor-wedge monitoring. The symmetrical enclosure tilts to a 50-degree wedge angle, letting either DBR15 lie down as a stage floor monitor in a mirrored setup. An onboard 2-channel mixer (CH1 XLR/TRS combo, CH2 combo plus RCA) and an XLR through/mix output let you daisy-chain a second cabinet or run a small source directly into the speaker — useful when the console is across the stage.

Matched White HPH-MT5W Headphones Built for Honest, On-Camera Monitoring

The HPH-MT5W brings 40mm dynamic drivers with CCAW voice coils tuned to Yamaha's NS-10 / HS-series monitor philosophy — a flat, fatigue-revealing 20 Hz - 20 kHz reference that exposes problem areas instead of flattering the mix. The closed-back circumaural design isolates the engineer and keeps headphone bleed out of open microphones during tracking, and moveable earcups rotate flat for one-ear cueing. A detachable 9.8 ft cable with a screw-on 1/4-inch adaptor means a damaged cable is a swap, not a replacement. The bright white finish photographs clean on camera and matches the white-finish theme that ties this whole bundle together visually.

For the Streamer, the Worship Tech, and the Band Building One Matched Rig

This bundle is for anyone who needs to mix, capture video, and fill a room from one matched-finish system. The first-timer gets a guided, assistive console plus speakers and monitoring that simply work together out of the box. The upgrader replacing a pile of separate gear gets HDMI video capture, multitrack USB, and microSD backup in a single 10.8 lb console. The comparison shopper gets the hard numbers — 86 dB preamp gain, 132 dB SPL per speaker, flat 20 Hz - 20 kHz monitoring — and a cohesive white aesthetic that looks intentional on camera. Run sound, stream the show, record the multitrack, and monitor it accurately, all from one purchase.
