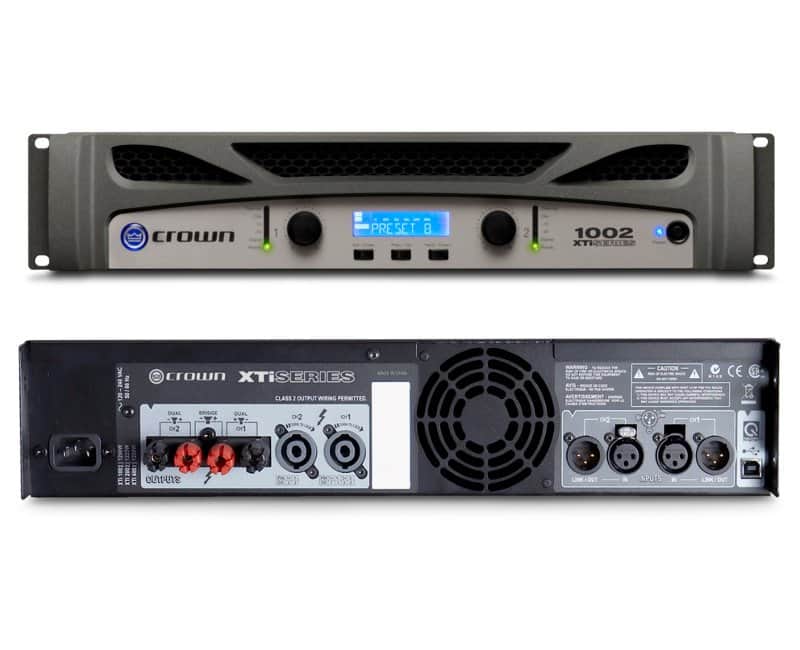

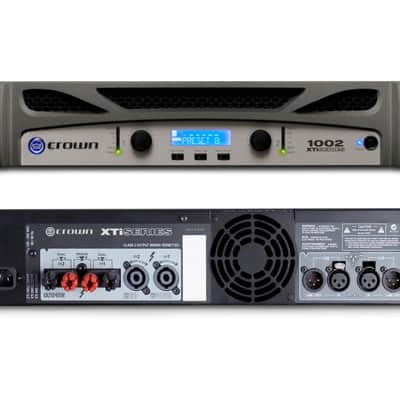

Crown XTi 1002 Two-Channel 500W Power Amplifier

The Crown XTi 1002 delivers serious power in a compact 3.5U rackmount footprint, with integrated cast-aluminum handles that make transport and installation straightforward. This two-channel amplifier combines muscular output across multiple impedance configurations with professional-grade protection and control, making it equally at home in live sound reinforcement, installation, and touring rigs. Built to run reliably night after night, the XTi 1002 sets the standard for performance and value in its class.

Power & Audio Performance

Power output scales intelligently across impedance loads: 500W per channel at 4 Ω stereo, 275W at 8 Ω, or 1400W bridged mono at 4 Ω for subwoofer applications. Audio specifications underscore transparency and low distortion—frequency response of 20 Hz–20 kHz, signal-to-noise ratio of 100 dB, THD below 0.5%, and a damping factor exceeding 500 ensures tight bass response and detailed reproduction across the audio spectrum.

Control & Protection

Peakx Plus limiters with adjustable threshold, attack, and release provide essential system protection while front-panel gain controls and an onboard LCD screen with DSP allow real-time adjustment and storage of up to 50 user-defined presets. Three fan-speed modes let you tailor cooling performance to your application, while system monitoring displays AC line voltage and power-supply temperature for diagnostic peace of mind.

Key Features

• 500W per channel at 4 Ω stereo; 700W at 2 Ω; 1400W bridged mono at 4 Ω
• Frequency response: 20 Hz – 20 kHz (+0 dB, –1 dB)
• Signal-to-noise ratio: 100 dB
• Total harmonic distortion: <0.5%
• Damping factor: >500 (20 Hz–20 kHz)
• Peakx Plus limiters with threshold, attack, and release control
• Front-panel channel level controls with gain adjustment
• Large LCD screen with onboard DSP and 50 user-definable presets
• Input impedance: 20 kΩ balanced, 10 kΩ unbalanced
• Three user-defined fan modes for application-specific cooling
• Integrated cast-aluminum handles and locking power cord clip
• 19" × 3.5" × 12.25" metal rackmount enclosure; 18.5 lbs

The XTi 1002 combines relentless power delivery, comprehensive limiting and DSP control, and professional build quality into an amplifier engineered for demanding touring, installation, and live-sound applications.
