Soundcraft GB8 48ch 48+4/8/2 GB Series Console

Soundcraft GB8 48ch (48+4/8/2) GB Series Console

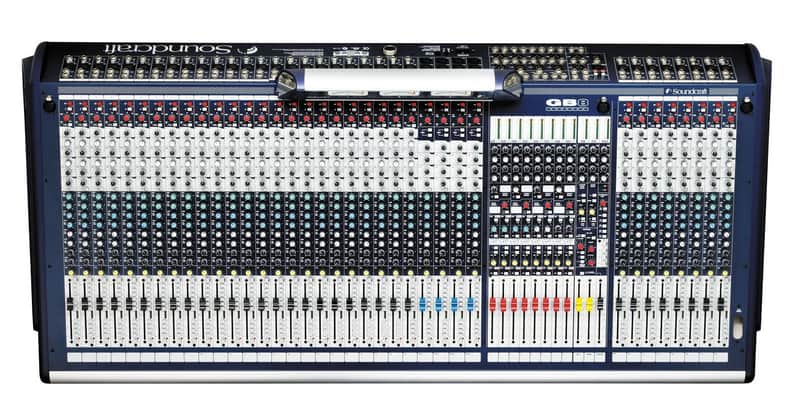

The Soundcraft GB8 is a workhorse mixer that rewards hands-on control with its responsive 100mm faders and intuitive layout, making it genuinely enjoyable to work with during both live sets and studio sessions. The GB Series sonic character is warm and transparent with a musical midrange presence that sits beautifully in any mix without coloring your sound. From the moment you touch the controls, this 48-channel console feels solid and purposeful—every parameter responds naturally, and the excellent headroom combined with the smooth channel strips gives you the confidence to push your mixes without harshness or digital artifacts.

Design & Build

The GB8 features a rugged steel chassis with a sloping rear connector panel, designed for durability in both touring and permanent installation environments. The integral power supply includes a link option for an external backup PSU, ensuring reliability during critical live events or studio work.

Audio Performance & Routing

Equipped with 48 input channels (44 mono and 4 stereo) fed by the legendary GB30 microphone preamps and 4-band GB30 EQ, the GB8 delivers sonic quality expected of far more expensive consoles. An 11×4 output matrix provides advanced audio routing to multiple zones, while integrated VU meters with traditional ballistics offer precise monitoring of left, right, and center outputs.

Key Features

• 48 input channels (44 mono + 4 stereo) with GB30 mic preamps
• 4-band GB30 parametric EQ on each input (High: 13kHz ±15dB; Hi-Mid: 550Hz–13kHz ±15dB Q=1.5; Lo-Mid: 80Hz–1.9kHz ±15dB Q=1.5; Low: 80Hz ±15dB)
• 100mm faders for smooth, precise level control
• 8 auxiliary sends, switchable between pre- and post-fader operation
• 8 group sends, swappable with aux sends for flexible configuration
• 4 stereo input channels and 4 stereo returns for expanded input options
• 4 mute groups for simultaneous control of multiple channels
• 11×4 output matrix for advanced multi-zone routing
• 48V phantom power individually switched on each mono input channel
• Built-in limiter on record output and alternate stereo output
• 1kHz oscillator for system testing and troubleshooting
• All-metal TRS jacks and Neutrik XLR connectors throughout

This is the kind of console that makes you feel like a better engineer the minute you sit down at it, with the GB8's proven reliability and excellent build quality ensuring it will be your trusted companion for years of creative work.
