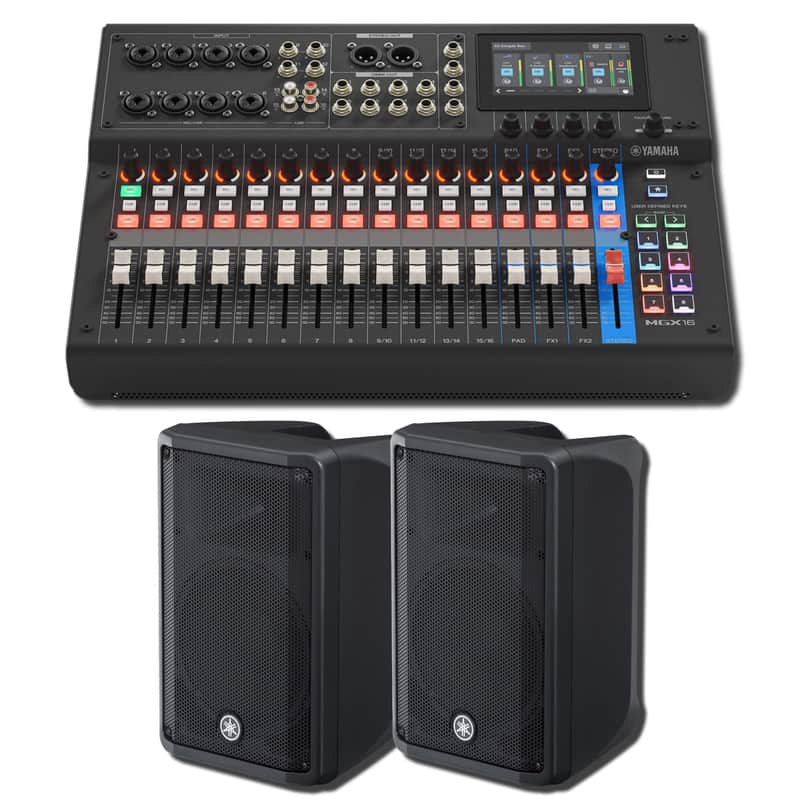

Yamaha MGX16 B 22-Channel Digital Mixing Console Live Sound Bundle with 2x DBR10 700W Powered Loudspeakers

The Yamaha MGX16 Live Sound Bundle: A Complete Mix-and-Amplify System in Three Boxes

This bundle is the entire front end and back end of a small-venue PA in one purchase: the MGX16 B digital mixing console to mix, process, and record, and two DBR10 powered loudspeakers to put that mix into the room. It is built for the band playing clubs and street sets, the house of worship running a weekly service, the school or corporate AV crew, and the streamer who wants a real PA behind a hybrid event. The mixer handles up to eight mic sources, Bluetooth music, and onboard recording; the speakers handle 129 dB of clean output as a stereo pair. Plug the console's two XLR outputs into the two DBR10s and you have a working sound system in minutes.

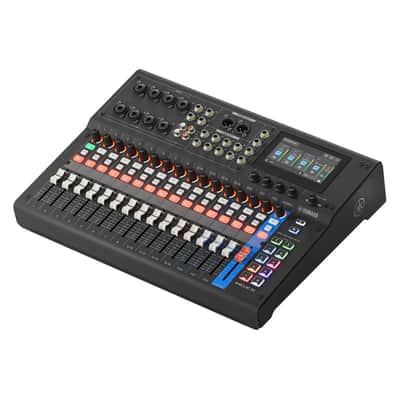

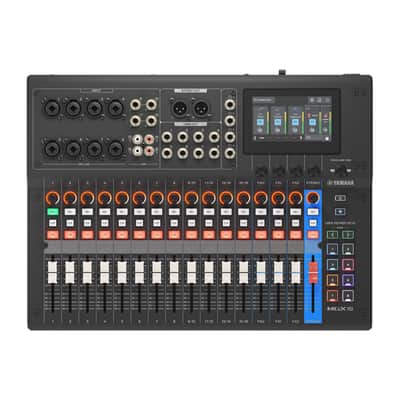

The MGX16 Is the Mixer, the Interface, and the Recorder All at Once

At the center of the bundle, the MGX16 collapses three pieces of gear into one 10.4-pound chassis. Its eight MGX premium preamps deliver an 86 dB gain range and 125 dB of dynamic range at the stereo output, so vocals and acoustic instruments come through with Yamaha True Sound clarity. The 22-in/22-out USB interface records the whole show into a DAW at 32-bit/96 kHz while a second USB SUB port feeds a streaming computer. And the onboard microSD recorder captures a 16-track multitrack backup with no laptop in the chain — if the computer drops, the take is still safe.

How a Touchscreen, Sound Pads, and Scene Recall Keep One Operator in Control

A 4.3-inch touchscreen, five knobs, the TOUCH AND TURN knob, and 15+1 60mm faders make the MGX16 fast to operate even for a solo engineer. Eight customizable Sound Pads fire jingles, sound effects, and cues across four banks. Auto Gain sets input levels for you, Clip Safe stops sudden distortion before it reaches the speakers, and Scene Recall switches the entire console between a band setup, a worship service, and a streaming configuration in one tap. Bluetooth 5.0 brings in walk-in music, and the Total FX suite — Gate, Compressor, Reverb, Voice Changer, Ducker, and a lip-sync Delay — shapes every channel.

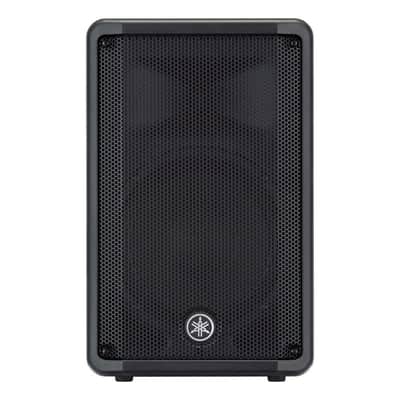

Two DBR10 Powered Speakers Turn the Mix Into 129 dB of Clean Room-Filling Sound

The pair of DBR10 powered loudspeakers is what the audience actually hears. Each one packs a 700W Class-D bi-amp powerplant driving a 10-inch woofer and a 1-inch compression driver, hitting up to 129 dB max SPL from a cabinet that weighs just 23.2 pounds. The FIR-X Tuning crossover uses a linear-phase FIR filter at 2.1 kHz for accurate driver integration and flat phase response, so the sound stays clean and detailed as you push the level. Set up as a stereo front-of-house pair on speaker poles, two DBR10s fill clubs, sanctuaries, and meeting rooms without strain.

One D-CONTOUR Switch Turns a Main Into a Monitor

Each DBR10 carries Yamaha's D-CONTOUR onboard DSP with dedicated FOH/MAIN and MONITOR presets. Flip the switch to FOH/MAIN and the speaker is voiced to throw out into the audience as a main; flip it to MONITOR, lay the speaker on its 50-degree wedge angle, and it becomes a floor monitor for the performers. A 2-channel onboard mixer on each speaker — combo XLR/TRS plus dual RCA — even lets you plug a mic and a music source straight into a speaker when you need a stripped-down setup. The 35mm pole socket and light weight make load-in and teardown quick.

Who This Bundle Is For — From First PA to Reliable Workhorse Rig

If you are buying your first PA, this is everything you need to make sound in one order — no guessing about whether the mixer outputs match the speaker inputs, because they do. If you are upgrading from a powered all-in-one or a pair of plastic karaoke speakers, the MGX16's recording and streaming tools plus the DBR10's headroom are a real step up. And if you are a working engineer who needs a light, dependable mix-and-amplify rig for clubs, worship, schools, and corporate events, this is a Yamaha system that sets up fast, records its own backup, and packs down to three easy-to-carry boxes. Plug in. Dial it in. Run the show.
