Description:

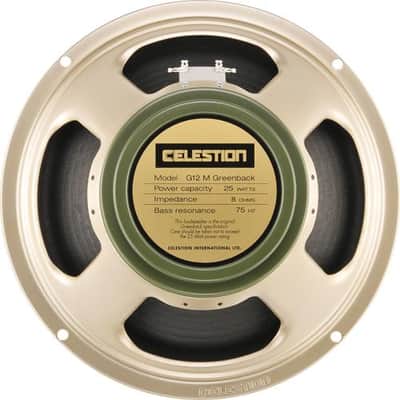

Model: Celestion G12M Greenback 8 Ohm 12-Inch Speaker, T1220

The G12M Greenback has evolved over the decades but still retains its essential, sought- after tone. Angus Young has been a Greenback devotee since the early days of AC/DC. This model is voiced with additional broad mid-range attack and restrained top-end to give a forward, punchy attitude to chords and a searing lead tone without fizz.With its well-controlled low-end it can be used singly in low-powered amps, or in multiples for high-power rock heads. It's an ideal speaker to bring drive and definition to modern high gain amps.

General Specifications:

• Nominal diameter: 12", 305mm
• Power rating: 25Wrms
• Nominal impedance: Available 8ohm or 16ohm
• Sensitivity: 98dB
• Chassis type: Pressed steel
• Voice coil diameter: 1.75", 44.5mm
• Voice coil material: Round copper
• Magnet type: Ceramic
• Magnet weight: 35oz, 0.99kg
• Frequency range: 75-5000Hz
• Resonance frequency, Fs: 75Hz
• DC resistance, Re: Available 6.7ohm or 13.1ohm

Mounting Information:

• Cut-out diameter: 11.1", 283mm
• Diameter: 12.2", 309mm
• Magnet structure diameter: 5.9", 150mm
• Mounting slot dimensions: 0.31", 7.9mm Ø
• Mounting slot PCD: 11.7", 297mm
• Number of mounting slots: 4
• Overall depth: 5.1", 130mm
• Unit weight: 7.9lb, 3.6kg
