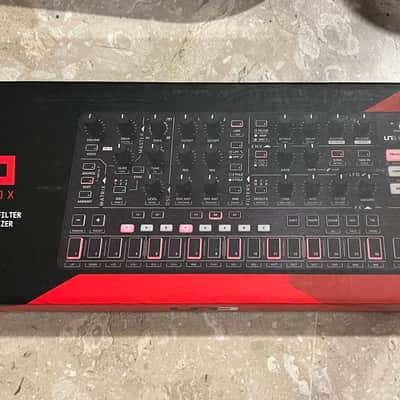

NEW IN BOX:

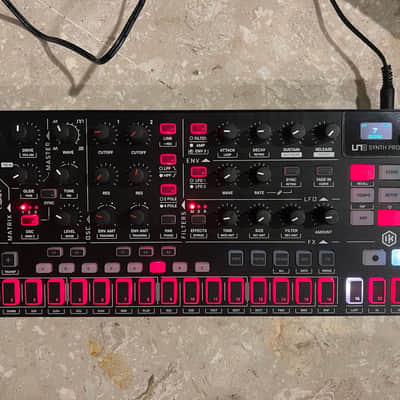

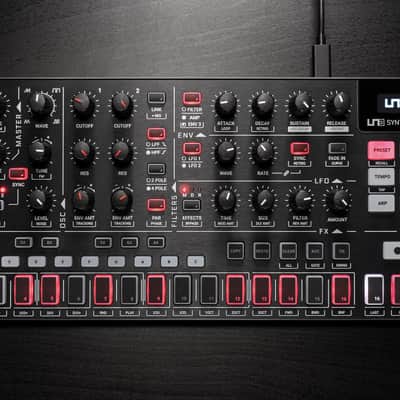

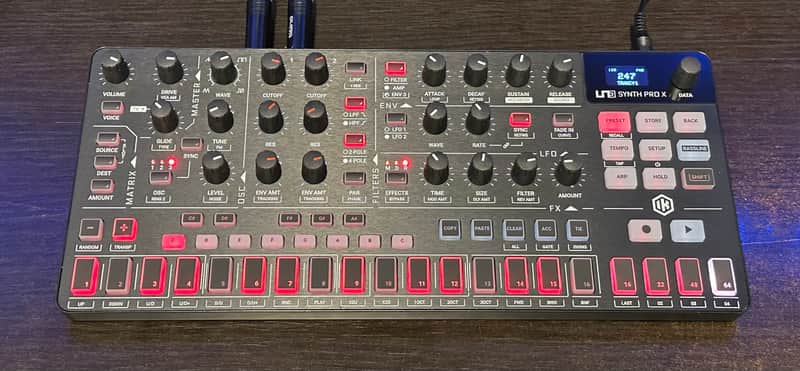

The IK Multimedia UNO Synth Pro X is an ultra-portable, paraphonic analog synthesizer designed for deep sound design and live performance. Moving away from the matrix-based UI of its predecessors, it features an intuitive "knob-per-function" layout with over 30 hands-on controls, dual analog filters, and versatile CV/MIDI connectivity.

Core Sound Engine

• Oscillators: 3 discrete wave-morphing oscillators featuring PWM, sync, FM, and ring modulation.
• Filter: Dual-filter design with 24 modes. Combines a 2-pole OTA multimode filter with a self-oscillating 2/4-pole SSI-chip low-pass filter (which can be run in series or parallel).
• Envelopes & LFOs: 3 super-fast ADSR envelopes (with looping and retriggering options) and 2 LFOs.
• Modulation: 16-slot modulation matrix for highly complex sound routing.
• Drive: Onboard analog overdrive for adding warmth or heavy crunch. [1, 2, 3, 4, 5]

Performance & Sequencer

• Voice Modes: Mono, Legato, and Paraphonic (plays up to 3 notes sharing a single filter/amp).
• Bassline Mode: Custom bassline engine for tight, punchy low-end lines.
• Sequencer: Advanced 64-step sequencer capable of parameter recording (up to 80+ parameters).
• Arpeggiator: 10-mode arpeggiator equipped with a custom Pattern Designer. [1, 2, 3, 4, 5, 6]

Effects & Presets

• Effects: 12 studio-quality stereo effects housed in 3 slots, including reverbs, delays, chorus, and more.
• Presets: 256 user-editable preset slots. [1, 2, 3, 4, 5]

Connectivity & Hardware

• I/O: USB-C, 5-pin DIN MIDI In/Out, and two channels of CV/Gate In/Out for connecting to Eurorack or modular gear.
• Audio Inputs: 1/8" TRS audio in for routing external audio through the analog filters and effects.
• Audio Outs: Balanced stereo line-out and a dedicated headphone out.
• Power: Can be powered via the included power supply (iRig PSU-3A) or a 5V/1.5A USB battery bank. [1, 2, 3, 4, 5]

Software & Dimensions

• Editor/Librarian: Includes standalone 64-bit software for Mac and PC for deep editing and preset sharing.
• Build & Size: Lightweight plastic enclosure measuring 33.3 cm x 15 cm x 5 cm (13.11” x 5.91” x 1.96”) and weighing 800 g (1.76 lbs). [1, 2, 3, 4]
