Bass Preamp & Overdrive

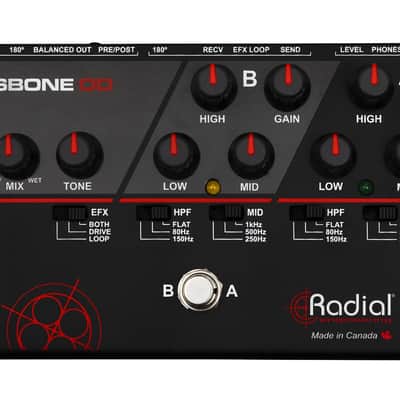

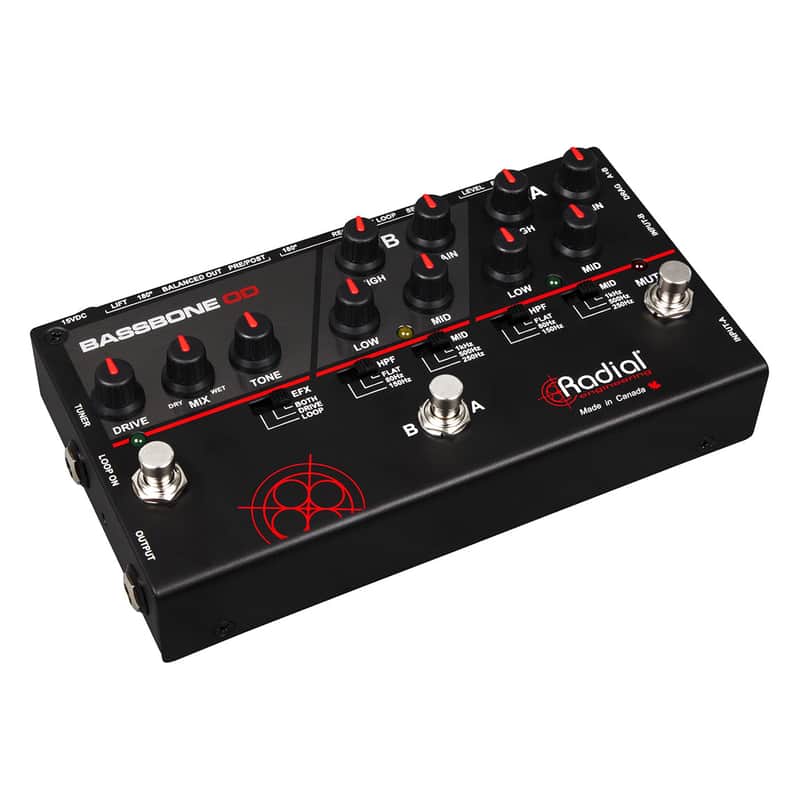

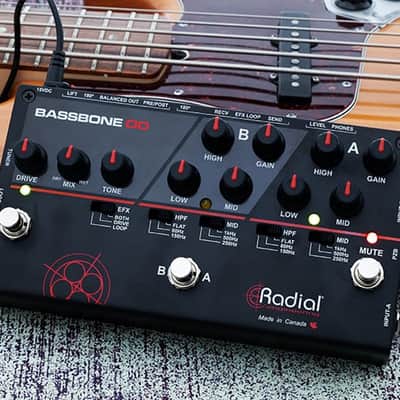

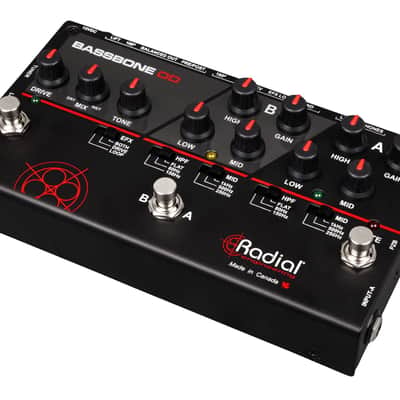

The Bassbone OD is a bass preamp that features two fully-equipped input channels, each with separate level and EQ controls and a shared overdrive.

Dual full-featured bass channels

The Bassbone OD allows you to connect two bass guitars and sculpt the tone of each one individually, as each input has its own level and EQ controls. The EQ settings have been specifically tailored for use with basses, and include a high pass filter to roll off excessive low end, along with a selectable center frequency for the Mid EQ boost/cut. Input A features a PZB booster designed for use with upright basses that employ a piezo transducer, while Input B includes a Drag Control impedance correction circuit that adjusts the load presented to magnetic pickups for a more natural tone. Following the input and EQ section, the Bassbone OD allows both instruments to share your effects pedals with an EFX Loop, which then feeds a powerful on-board overdrive.

Specifications Audio circuit type: Discrete class-A FET input with low noise ICs. Frequency response: 20Hz ~ 18kHz Dynamic range: 85dB Gain: Unity gain device Clip Level: +10dBu at XLR Total harmonic distortion: 0.05% @ -15dBu Intermodulation Distortion: 0.2% @ -20dBu Input Impedance: CH-A: 220K/10M CH-B Variable from 22K to 1.8M Output Impedance: 300 Ohms at XLR Equivalent Input Noise: -92dBu at XLR Noise Floor: -100dB Maximum Input: +7 dBu Features 180° polarity reverse, Ground lift, HPF, Drag Control, Level Control, Phase Adjustment, Effects Loop, EQ Control, Boost Input Connectors: 1/4" Output Connectors: 1/4", XLR, 3.5mm General Construction: 14-gauge steel Size (L x W x D): 8" x 4.2" x 2" (203 x107 x 48mm) Weight: 2.55lb (1157 grams) Shipping size (L x W x D): 10.75" x 5"x 2.75" (273 x 127 x 70mm) Shipping weight: 2.8lb (1270 grams) Power: +15VDC/400mA adapter included Conditions: For use in dry locations only between 5°C and 40°C Warranty:
