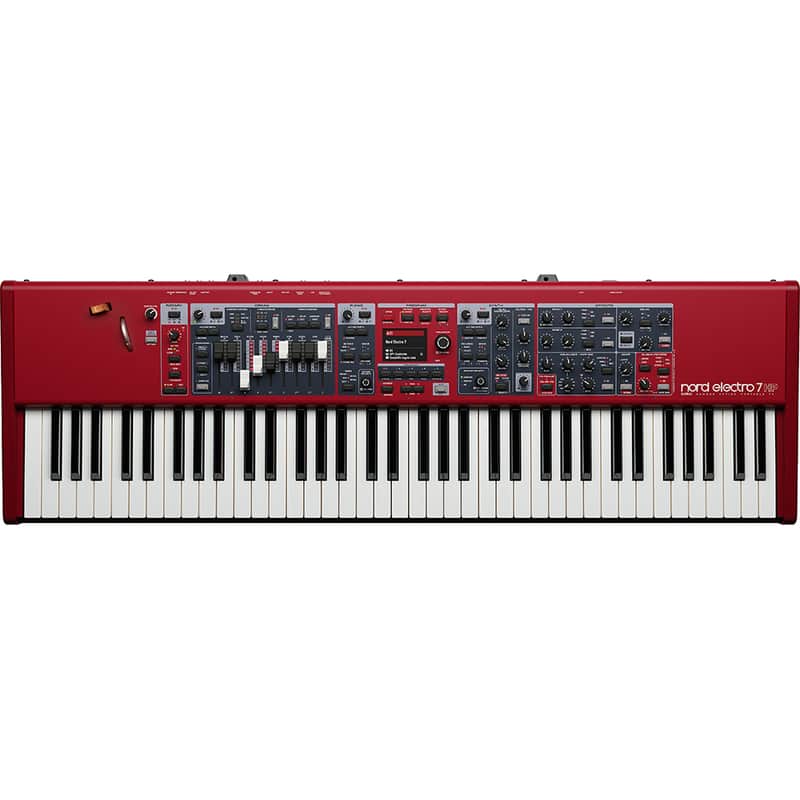

Nord Electro 7 61

The Nord Electro 7 elevates the Electro series with a powerful new Synth Section, dedicated per-section effects and a refined panel design with a high-resolution color display. Combining our latest piano features with the Organ and Rotary Speaker from the acclaimed Nord Organ 3, the Nord Electro 7 offers exceptional versatility in a lightweight, stage-ready instrument.

Product Highlights:

General

New Panel design and new large color display

Physical Drawbars on all models

Expression Pedal Assign, enabling pedal control of Synth Filter and effect parameters

Organ Section

B3, B3 Bass, Vox, Farfisa, Soft B3 and Pipe organs from Nord Organ 3

Rotary Speaker emulation from the Nord Organ 3

3 mic positions for Rotary Speaker

Physical Drawbars with LEDs on all models

Piano Section

Compatible with the Nord Piano Library

Push Encoder for selecting Category and Sounds

Dynamic Compression, Unison, Timbre

Effects Section

Dedicated effects per section

Rate and Amount for Modulation Effects

New Spring reverb

New Amps (Brit and Suitcase)

Global Reverb with per layer Send

Synth Section

Samples, Analog waveforms and FM synthesis

Push Encoder for selecting Category and Sound

Vibrato with adjustable rate, amount and delay

Mono, Legato and Glide

Unison

Low-pass filter with Resonance control

FM Partial and FM Amount

Dual envelope for Amp and Filter/FM

Compatible with the Nord Sample Library

Product Features:

General

The new panel design, paired with a high-resolution color display enhances ease of use. Sound selection, settings and performance controls are easily accessible for a quick and intuitive workflow.

Physical Drawbars with LEDs on all models: All Electro 7 models feature Physical Drawbars with LED indicators for both visual and tactile feedback and hands-on experience.

Organ Section

The Organ Section is based on the Nord Organ 3 engine and features stunning recreations of classic tonewheel, transistor, and pipe organs as well as the latest generation of our acclaimed Rotary Speaker emulation with multiple microphone perspectives.

B3: The B3 model features three different tone wheel modes ranging from the clean sound of a factory new unit to a road worn vintage character with increased tone wheel cross talk and leakage. The B3 Percussion effect includes a Poly mode, which enables polyphonic use of the Percussion even when holding chords or playing legato.

Vox: The iconic sound of the Vox organ has been refined even further for the Nord Electro 7, with revamped waveform shapes and filters as well as updates to both the key click and vibrato character.

Farfisa: The new generation Farfisa model conveys the character of the original tone generators and filters with great precision, including the complex filter interactions when combining registers.

Soft B3 and Pipe: The Soft B3 model is based on the B3 tone wheel organ, but without the key click and other artifacts, for a softer and more mellow sound. The Pipe model faithfully recreates a set of principal pipe organ ranks.

Vibrato and Chorus Scanner: The new vibrato and chorus captures the unique qualities of the original instruments, offering either the gentle character of a '50s B3 chorus scanner or the deep modulation of a '70s instrument.

Rotary Speaker emulation: With a brand new approach to recreating not only the classic rotary sound, but also the characteristics of both the amp and speakers, the Nord Electro 7 features the exceptional Rotary Speaker emulation from the Nord Organ 3.

Microphone perspectives: The Nord Electro 7 offers three microphone positioning options corresponding to popular ways of reproducing the classic rotary speaker sound, both on stage and in the studio. These variations in microphone placement affect both the perceived movement as well as the tonal character of the rotary speaker, ranging from punchy and present to smooth and open.

Piano Section

The Nord Electro 7 contains a large selection of Grands, Uprights and Electric Pianos from the exclusive Nord Piano Library along with new features such as Dynamic Compression, Unison and Timbre. Our state-of-the-art sampling technique captures the extraordinary nuances and real character of the source instruments.

Nord Piano Library: In addition to the factory sounds, all sounds in the Nord Piano Library can be easily transferred to your instrument using the Nord Sound Manager software.

Dynamic Compression

Unison

Timbre

String Resonance

Synth Section

A brand new Synth Section introducing Analog Waveforms and FM synthesis alongside high-quality Samples from the Nord Sample Library. The Synth Section includes Mono, Legato and Glide modes for expressive performance control. Low-Pass Filter with resonance and dual ADR envelopes for Amp and Filter/FM Amount designed for exceptional real time control.

Nord Sample Library: The Nord Sample Library is an extensive collection of premium samples, including Spitfire Strings, Supreme Horns, Mellotron and Symphobia. Samples can be easily downloaded and transferred to your instrument using the Nord Sound Manager software.

New Analog waveforms and FM synthesis

Sample Synth

Mono, Legato and Glide

Low-pass filter with resonance

ADR envelopes

Compatible with the Nord Sample Library

Effect Section

The Nord Electro 7 has an expanded new Effects section per Layer. The wide range of Effects includes brand new types of Reverb, Delay, Amps and Modulation effects.

Reverb, Delay and new Amplifier models: The Nord Electro 7 comes with a new authentic Spring Reverb, Brit and Suitcase amplifier models and a Delay effect including a vintage-style Analog mode with three selectable feedback filters for creative control.

Modulation effects: The Modulation effects include classics such as Chorus, Phaser and Flanger, each modeled after legendary hardware units, along with Ring Modulation for a variety of creative and experimental sounds and a versatile Tremolo effect.

Dedicated Effects per Section

New Spring Reverb

Global Reverb with Layer Send, Chorale and Bright/Dark mode

New amplifier models, including Brit and Suitcase

Modulation Effects with Rate and Amount controls

Delay with Feedback Filters, Ping-Pong, Analog Mode, Tap tempo and Global option

Dedicated Compressor with Amount control

3 band EQ with sweepable mid

Product Specifications:

General

Color display

Organ, Piano and Synth sound sections

Seamless Transitions

Split Point Crossfades

Pitch Stick and Modulation Wheel on 73 and HP models

20 banks with 25 programs - 500 locations

Live Mode: 5 Live programs

Selectable split point with LED indication (9 locations)

Organize for programs

Global Transpose: +/- 6 semitones

Global Fine-tune: +/- 50 Cents

Program Transpose: +/- 6 semitones

MIDI over USB

61-key semi weighted waterfall keybed

External keyboard feature (Aux KB)

Expression Pedal Assign, enabling pedal control of Synth Filter and many effect parameters

Keybed

61-key (5 octaves, C-C) Semi Weighted Waterfall keyboard

Organ Section

B3, B3+Bass, Soft B3, Vox, Farfisa and Pipe model with full polyphony

B3 Percussion Controls with Poly option

Vibrato/Chorus with B3 Deep mode

Adjustable percussion level and percussion decay

3 Tonewheel modes: select the level of "vintage" desired

2 Organ manual Presets and Live Drawbars

Physical Drawbars with LED indicators

Mount for Half-Moon Switch

Piano Section

Categories: Grand, Upright, Electric, Digital/Layer, Clav/Harpsichord and Misc/Mallet

Pianos can be added, replaced and organized using the Nord Sound Manager

String Resonance

Timbre settings - individually tailored for acoustic, electric and clavinet sounds

3 KB Touch settings

Dynamic Compression for even sound level without altering the tonal character

Unison with 3 amount options

120 Voices polyphony for Piano Library sounds

Synth Section

Sample, Analog and FM synthesis

Samples can be added, replaced and organized using the Nord Sound Manager

Preset library for Analog and FM sound

Amp and Filter/FM ADR/ASR envelopes

Velocity and Amount controls for Filter/FM envelope

Low Pass Filter with Cutoff and Resonance controls for Analog and Sample sounds

Amount and Partial controls for FM

Mono, Legato and Glide options

Unison with 3 amount options

3 Dynamics/amp velocity options

Vibrato with adjustable rate, amount and delay

Synth Vibrato button for real time control

30+ voice polyphony

Rotary Speaker

Rotary Speaker emulation from Nord Organ 3

Close, Wide and XY Mic Position options

Bass Wide (stereo) option

Dedicated tube Drive control

Fix Angle option for Stop position (user adjustable)

Effect Section

Dedicated Effects for Organ, Piano and Synth

FX Focus with FX Bypass option

Expression Pedal can be assigned to most effect parameters

Mod 1

Pan1 (Soft), Pan2 (Hard), Tremolo, Wah and Ring Modulator

Dedicated Rate and Amount Controls

Mod 2

Phaser, Flanger, Chorus, Vibe and Ensemble

Wide option for stereo width

Dedicated Rate and Amount Controls

Equalizer/Amp Simulations

Twin, Small, Suitcase, JC and Brit amp models

Drive

Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation

Delay

Tempo with Tap function

Feedback and Dry/Wet controls

Low Pass, High Pass and Band Pass feedback filter options

Ping Pong with 3 amount options

Analog mode

Global mode

Compressor

Amount control and Global option

Global Reverb

Spring, Room, Stage, Hall and Cathedral reverb types

Spring Reverb placed before Rotary Speaker

Chorale option for all reverb types

Bright/Dark options

Dry/Wet control with Layer Send mode for individual control of reverb level per section

Connections

2 Audio outputs L & R - 1/4", 6.35 mm jacks, unbalanced

1 Monitor input - 1/8", 3.5 mm stereo jack

1 Headphone output - 1/4", 6.35 mm stereo jack

1 Expression pedal input - 1/4", 6.35 mm TRS stereo jack

Sustain Pedal - 1/4", 6.35 mm jack. Compatible with Nord Sustain Pedal 2 (continuous sensor), Nord Triple Pedal 1 and switch type pedals

Rotary Control/Foot Switch - 1/4", 6.35 mm jack

Use a momentary pedal or a switch type pedal

MIDI In - 5 pin DIN connectors

MIDI Out - 5 pin DIN connectors

USB - type B connector for USB MIDI, Software Update and Sound Transfer

Power Cord with IEC C14 connector

Included Accessories

User Manual

Power cord

Dimensions

901 mm (35.5") x 104 mm (4.1") x 294 mm (11.6")

Weight

8.3 kg (18.3 lbs)
