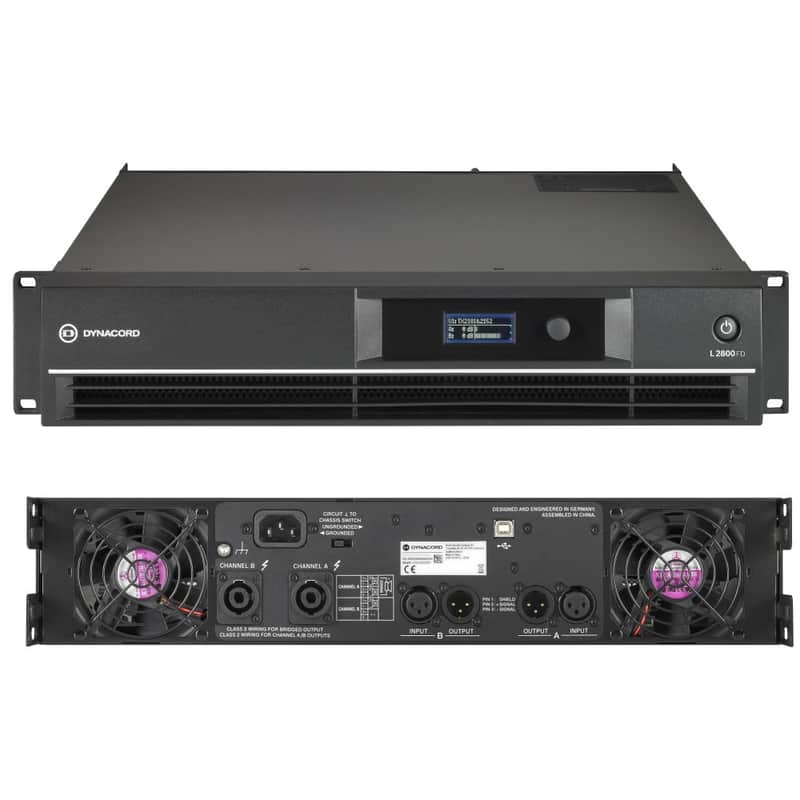

L2800FD  DYNACORD

 2 x 1400w DSP Rackmount Power Amplifier

Dynacord L Series are professional dual channel audio amplifiers for live and mobile applications. Integrated digital signal processing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of mobile applications. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.

Features:

• Professional DSP amplifier for live and mobile application

• Fully integrated professional speaker processing with FIR drive technology

• Market-leading acoustic performance and rock solid reliability

• Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0

Specifications:

• Load Impedance: 2 Ω 2.7 Ω 4 Ω 8 Ω

• Maximum Output Power, Single Channel: 2300 W 2000 W 1400 W 700 W

• Maximum Output Power, Dual Channel: 2200 W 1800 W 1300 W 650 W

• Maximum Output Power, Bridged: 4400 W 2600 W

• Maximum RMS Voltage Swing: THD = 1%, 1 kHz 78.8 V

• Voltage Gain Ref.1 kHz: 32.0 dB

• THD at 900 W/4 Ω MBW = 80 kHz, 1 kHz: < 0.05%

• IMD-SMPTE 60 Hz, 7 kHz: < 0.1%

• DIM30 3.15 kHz, 15 kHz: < 0.05%

• Maximum Input Level: +21 dBu

• Crosstalk ref. 1 kHz, at 100 W/4 Ω: < -80 dB

• Frequency Response ref. 1 kHz: 10 Hz to 21 kHz (±1 dB)

• Input Impedance Active Balanced: 20 k Ω

• Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power @ 8 Ω: >107 dB

• Output Noise, A-weighted: < -68 dBu

• Output Stage Topology: Class H

• Power Requirements: 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)

• Power Consumption 1/8 Maximum Output Power @ 4 Ω: 700 W

• Mains Fuse: 240 V/230 V: T15AH; 120 V/100 V: T25AH

• Protection: Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay

• Cooling: Front-to-rear, 3-stage-fans

• Ambient Temperature Limits: +5°C to +40°C (40°F to +105°F)

• Safety Class: I

• Color: Black

• Dimensions: (W x H x D), mm 483 x 88 x 462.4

• Weight: 16.2 kg (35.7 lb)

SALE: $1679.99

FREE S&H in continental US (e-mail for international / offshore USA rates)
