Conrad-Johnson MV-60 Stereo Tube Powered Amplifier

The Conrad-Johnson MV60 is a highly regarded 55-60 watt per channel stereo vacuum tube power amplifier known for its musical, well-balanced sound. It features a simple, elegant circuit design utilizing EL34 output tubes and is often lauded for combining high resolution with a natural, non-clinical presentation.

Key Features and Specifications:

·Power Output: Rated at 55Wpc to 60Wpc RMS, typically driven into 4 ohms (can be internally reconfigured for 8 or 16 ohms).

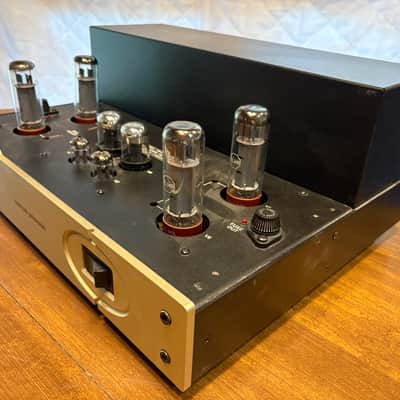

·Tube Complement: Uses (2) 12AX7A input tubes, (2) 6SN7GTB inverter tubes, and (4) EL34 output tubes.

·Design: Features a minimalist circuit designed to minimize distortion, with a high-current output stage.

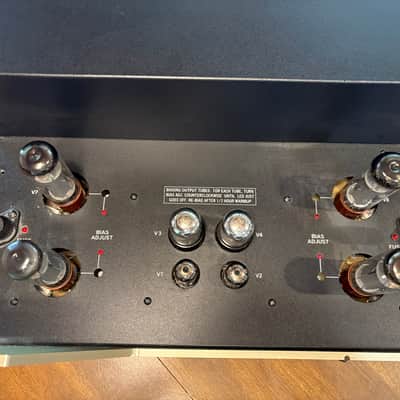

·User Maintenance: Includes built-in LED bias indicators for easy, screwdriver-free biasing of the output tubes.

·Condition/Reputation: Known for excellent reliability and musicality.

This is a used amplifier in excellent condition, showing minor scuffs and wear from use. Unit will be shipped in its original packaging. Pulled from a working system and then sat on a shelf for quite some time so it has not seen much recent use.  This MV60 has been inspected, tested and everything works as it should.  This unit was used in a pet free, child free and smoke free environment.  This unit is quite heavy at almost 50 pounds.  Shipping will be a flat rate of $90.00 to the lower 48 states.  Shipping to other locations will be reviewed if necessary.

Specifications:

• Power (ultralinear operation): 55 watts per channel from 30 Hz to 15 kHz at no more than 1% THD, both channels driven into 4, 8, or 16 Ohms (when re-connected for the chosen load impedance)
• Power (triode operation): 25 watts per channel from 30 Hz to 15 kHz at no more than 1.5% THD, both channels driven into 4, 8, or 16 ohms. (when re-connected for the chosen load impedance)
• Sensitivity: .8 volts rms to rated power (ultra-linear)
• Gain: 26 dB
• Freqency Response: 20 Hz to 20 KHz +0/-.5 dB
• Hum and Noise: 95 dB below 55 watts
• Input Impedance: 100 Kohms
• Phase: phase correct

Mechanical:

• Dimensions: 17.625W | 7H | 13.25D inches
• Weight: 48 lbs.
