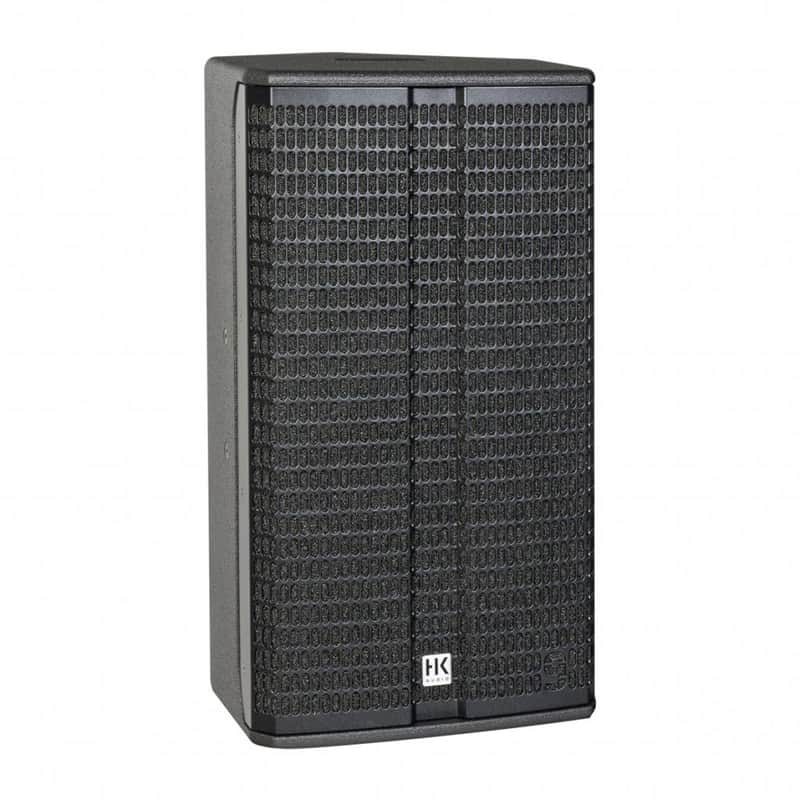

HK Audio LINEAR-9-112-XA Linear 9 Series 700-Watt 12-Inch Active Monitor Wide Disp Horn DSP Out Network

Optimized horns for perfect dispersion behavior

The dispersion angle of each speaker’s horn is optimized for its intended use. The 12" LINEAR 9 112 XA speaker offers a dispersion angle of 70° x 50 for medium sound coverage depths. It can be rigged either via the rigging points (steel cables or chains in combination with the AP-8 attachment point) or with the TB-28N tilt bracket.

Technical Data

• Max. SPL @ 10% THD: 128 dB half space (70 Hz – 12 kHz averaged).
• Max. SPL Peak @ 10% THD: 131 dB half space.
• Frequency Response +/-3 dB: 67 Hz – 19 kHz.
• Frequency Response -10 dB: 62 Hz – 20 kHz.
• Power Amp Output (RMS): 700 W.
• Amplifier Type: Class D - biamped.
• LF Driver: -.
• Low-/Mid Speaker: 1 x 12", 2.5" voice coil.
• HF Driver: 1", 1.7" voice coil.
• Horn Directivity: 70° x 50° CD horn, rotatable.
• Active Crossover Frequency: 1.6 kHz FIR X-over with 60 dB/oct.
• Maximum Input Level: +20 dBu.
• Analog Inputs: 1 x XLR combo balanced.
• Analog Thru: 1 x XLR balanced.
• DSP Out: 1 x XLR balanced.
• Network Port: Ethercon RJ45, 1 x In, 1 x Thru.
• Filter Presets: Flat, Monitor, Low Cut, Remote.
• Remote Software: DSP CONTROL (Windows, macOS).
• DSP Functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, and Mute.
• Sample Rate: 96 kHz.
• System Latency: Less than 2.6 ms.
• Mains Connector: 1 x Powercon NAC3 In, 1 x Powercon NAC3 Thru, 100–240 V.
• Power Consumption: 1 A / 100–240 V nominal according to EN 62368-1.
• Clustering Angle: -.
• Angles Up (Monitor Angle): 30°.
• Pole Mount: DuoTilt 3°/7°.
• Rigging Points: 5 x M8 (AP-8).
• Carrying Handles: 1 x SingleGrip, 1 x MultiGrip.
• Housing: Birch multiplex.
• Finish: PU coating black.
• Front Grille: 2 mm metal grille backed with black acoustic foam.
• Dimensions (WxHxD): 37 x 67 x 31 cm / 14-9/16 x 26-3/8 x 12-13/64".
• Weight: 20.5 kg / 45.2 lbs.

Special Note B-Stock

• This item is considered "B-Stock."
• B-Stock items are new instruments that did not get an A+ in QC.
• B-Stock is the closest to a new condition. There are very small blemishes categorized as “an inch or less”. Many times, these instruments are like new.
• They usually have minor cosmetic blemishes; none of these issues will affect overall playability.
