DeltaLab Effectron II ADM 1024 Digital Delay – 1980s – Blue – Good – Free Shipping

Cool vintage effect—lofi and a little noisy but the infinite loop is very unique

I had some fun researching its history! Went down a rabbit hole on some of the blogs and did not realize the following that Effectron/Delta Labs has to this day. Found a blog where former employees discussed the history, early adopters (like Rush).

Bulit like a tank.

Description

for sale is a DeltaLab Effectron II ADM 1024 Digital Delay from the 1980s in Good condition with free shipping. I will also include 4 free rack screws.

This is a true vintage rack delay from the early digital era, and one of the more characterful units from that period. The Effectron II ADM 1024 was the long-delay version in the Effectron II range, offering 0.25 ms to 1024 ms of delay time in a single-rack-space unit. DeltaLab’s own manual and brochure describe it as a studio-quality special effects processor for performing musicians and studios, with flanging, doubling, chorusing, echo, vibrato, tremolo, multiple echoes, and infinite repeat, while maintaining 20 Hz to 16 kHz response and about 90 dB typical dynamic range.

History of the Maker

DeltaLab Research was founded in 1977 by engineer Bruce DeFreitas. Preservation Sound’s archive quotes DeFreitas identifying himself as DeltaLab’s founder and chief designer of the Effectron line, while Catalinbread’s historical overview notes that he came out of the Massachusetts high-tech audio world and helped push DeltaLab into the spotlight with early digital delay and effects units.

History of the Effectron II

The Effectron II was the updated successor to the original Effectron. DeltaLab’s manual says the update incorporated user suggestions, an improved input stage, stereo outputs, and, on the ADM 1024, a remote infinite-repeat jack. The brochure positioned the Effectron II line as a low-cost but high-performance digital delay family with simplified pushbutton control and effects ranging from flanging to long echo.

One reason these units still matter is that they were built around DeltaLab’s Adaptive Delta Modulation (ADM) approach, which the manual describes as a patented system recognized for natural, clean digital encoding. In practice, that is part of why the Effectron series still appeals to players and producers who want early digital sound with more personality than many later sterile rack delays.

Specifications
• Model: DeltaLab Effectron II ADM 1024
• Era: 1980s
• Finish: Blue
• Format: 1U rackmount
• Delay range: 0.25 ms to 1024 ms
• Frequency response: 20 Hz to 16 kHz typical
• Dynamic range: 90 dB typical
• Distortion: 0.2% max
• Modulation width: 5:1
• Modulation speed: 0.1 to 10 Hz
• Feedback: positive and negative

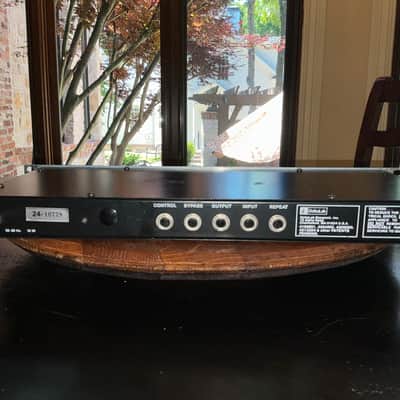

• Infinite repeat: front and rear remote access on ADM 1024
• Made in: United States

Studios, Musicians, and Noted Uses

The broader Effectron / Effectron II family shows up in some strong music-production contexts:

• Jonathan Wilson told Sound On Sound that his studio setup included a Delta Lab Effectron II delay.
• In Sound On Sound’s breakdown of Greta Van Fleet’s “When The Curtain Falls,” engineer Al Sutton said he used a Delta Labs Effectron II for pre-delay on the vocal reverb chain.
• In Sound On Sound’s Led Zeppelin reunion mixing article, Kevin Shirley said he used a Delta Lab Effectron, describing it as “a very old digital delay,” in his drum-processing chain.
• In a DMY gear feature, Factory Floor’s Gabe Gurnsey said the Delta Lab Effectron was a favourite of Arthur Russell’s and praised its uniquely musical sound.

Tone & Character

The Effectron II ADM 1024 has that lively early-digital voice that can sit somewhere between clean and quirky depending on how it is set. The Effectron brochure says the unit was built for the “most natural sounding digital effects” DeltaLab could offer, while Catalinbread’s retrospective emphasizes how the Effectron line moves from flanging to chorus to delay simply by changing delay time. That is exactly the appeal here: it is not just a rack echo, it is a time-based multi-effect from an era when delay time itself defined the effect category.

Top 5 Classic Starting Settings

These are practical starting points based directly on the Effectron II manual and brochure controls.

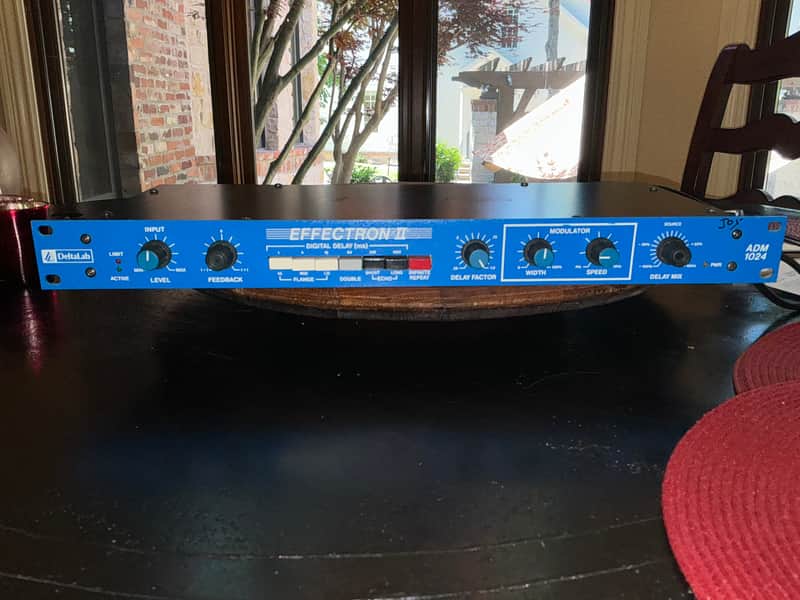

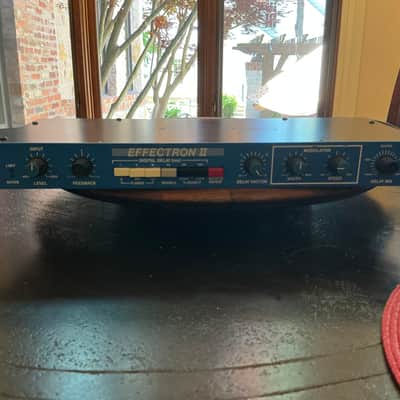

1. Classic Flange Sweep
Use one of the white FLANGE buttons, keep Delay Factor low, raise Width to medium-high, set Speed slow-to-medium, and use a modest amount of Feedback. The manual identifies the white buttons as the short-delay flanging ranges and the Width/Speed controls as the modulation engine.

2. 80s Doubling / Thickening
Use the gray DOUBLE button, set Delay Mix for a balanced blend, keep Feedback very low or off, and use just a little Width and Speed if you want gentle chorusing. The manual identifies the gray button as the doubling range of 16–64 ms.

3. Slapback Echo
Use SHORT ECHO, keep Feedback low, set Delay Factor toward the shorter end of the selected range, and use Delay Mix for a clear but not overpowering repeat. The manual lists 64–256 ms for short echo on the ADM 1024.

4. Long Ambient Echo
Use the LONG ECHO button, set Delay Factor higher, raise Feedback for multiple repeats, and keep Width at zero unless you want modulation on the repeats. The manual gives the ADM 1024 a 256–1024 ms long-echo range.

5. Infinite Repeat Texture
Engage the red INFINITE REPEAT button after capturing a phrase in the desired echo range, then add new material with Feedback and Delay Mix to build layered textures. DeltaLab specifically describes the ADM 1024 infinite-repeat feature as recirculating data in memory with no signal degradation and also offering rear remote control.

Condition

Good

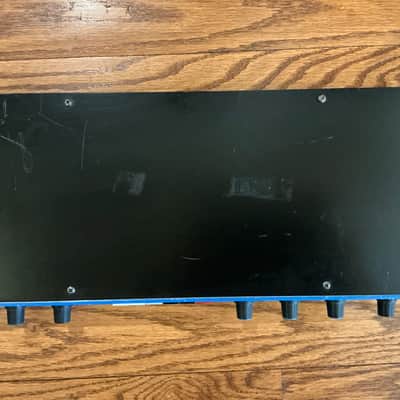

This unit shows normal cosmetic wear consistent with age and use, which is entirely appropriate for a vintage 1980s rack effect.

Why You’ll Love It

If you want a real vintage digital rack delay with documented studio pedigree, broad time-based usefulness, and a sound that is more characterful than many modern units, the Effectron II ADM 1024 is easy to appreciate. It is a genuine early-digital multi-effect built for musicians and studios, and the longer-delay ADM 1024 version is one of the most flexible units in the line.

Shipping & Seller Info
• Shipping: Free within the U.S.
• Packaging: Professionally padded and packed to ensure safe delivery
• Includes: 4 free rack screws
• Seller Reputation: I maintain a 100% positive rating and will work hard to keep it that way
