Portable EVOX Sound with Built-in 8-Channel Mixing

The RCF EVOX JMix8 gives performers a complete live sound setup in one compact system. It combines the portability of the EVOX column PA design with a built-in 8-channel digital mixer, making it a strong choice for singers, DJs, small bands, presenters, and mobile events.

This system uses a 12-inch woofer in the lower bass reflex cabinet and eight 2-inch full-range drivers in the upper column to deliver clear, balanced sound across the full frequency range. The result is a clean and powerful setup that can cover small to medium venues without needing a large traditional PA system.

What makes the EVOX JMix8 stand out is the onboard mixer. With DSP processing, EQ, compression, effects, amp simulations, Bluetooth, mobile app control, and an LCD screen, you can shape your sound directly from the unit or control it wirelessly from a mobile device. Add in RCF FiRPHASE technology, a 1,400-watt Class D amplifier, and a lightweight composite enclosure, and the EVOX JMix8 becomes a practical all-in-one PA system for live performance.

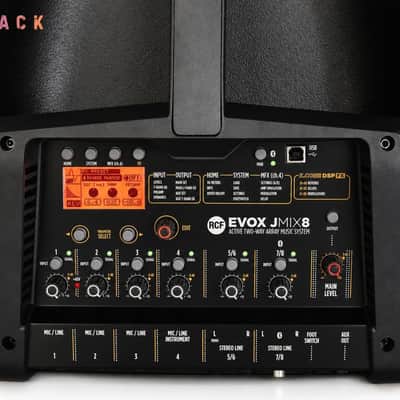

Built-in 8-Channel Digital Mixer

The EVOX JMix8 is more than just a portable speaker system. Its built-in 8-channel digital mixer gives you control over microphones, instruments, backing tracks, and other audio sources from one simple setup.

The mixer includes RCF Z Core DSP, giving you access to sound-shaping tools such as EQ, compression, reverb, delay, modulation effects, and amp simulations. The LCD screen makes it easier to adjust settings on the unit, while the EVOX JMix app allows remote control from a mobile device.

With multiple input options, including XLR, 1/4-inch, RCA, USB, Bluetooth, and footswitch connections, this system can handle many different performance setups.

Clear Sound with FiRPHASE Technology

RCF’s FiRPHASE technology helps the EVOX JMix8 produce cleaner and more accurate sound. It uses advanced FIR filtering to improve phase alignment, reduce distortion, and keep sound coverage more consistent across the audience area.

This helps the system deliver clear vocals, detailed instruments, smooth imaging, and low-latency performance, making it useful for both live music and spoken presentations.

Powerful 1,400-Watt Class D Amplifier

The EVOX JMix8 is powered by a 1,400-watt Class D amplifier designed for strong output and efficient performance. It can reach up to 128 dB max SPL, giving it enough power for small to medium venues.

The amplifier is built to reduce heat and operate efficiently without a cooling fan. This helps keep the system quieter, lowers the number of moving parts, and supports long-term reliability.

Effortless Stage Setup

The EVOX JMix8 is made for fast setup and easy transport. The upper speaker column mounts directly above the bass cabinet using the included pole system. Just attach the pole, connect the cable, adjust the height, and the system is ready to go.

This design helps save space, reduce setup time, and make transportation easier compared to a larger PA system. The lightweight composite cabinet also makes it a good option for mobile performers, DJs, and event setups.

RCF EVOX JMix8 Active Portable PA System Features

• All-in-one portable PA system for singers, DJs, small bands, presenters, and events
• Built-in 8-channel digital mixer with flexible input options
• RCF Z Core DSP with EQ, compression, effects, and amp simulations
• LCD screen for easy control and setup adjustments
• Mobile app control for wireless sound adjustments
• 12-inch bass reflex woofer with an upper column of eight 2-inch full-range drivers
• 1,400-watt Class D amplifier with up to 128 dB max SPL
• FiRPHASE technology helps reduce phase issues and improve clarity
• Bluetooth connectivity for added playback flexibility
• Footswitch and aux output for expanded live performance control
• Quick pole-mounted setup with adjustable height
• Lightweight composite enclosure for easier transport

Tech Specs

Type: Portable Column Array
Speaker Drivers: 8 x 2" HF, 1 x 12" LF
Mixer Channels: 8
Mic Preamps: 4
Phantom Power: Yes
EQ: 3-band EQ, 7-band EQ
Effects: Reverb, Delay, Modulation
Inputs: 3 x XLR-1/4" combo, 1 x XLR, 1 x 1/4" line, 1 x 1/8" line
Outputs: 1 x 1/4" aux out
USB: 1 x Type B
Bluetooth: Yes
Other I/O: 1 x 1/4" footswitch
Total Power: 1,400W Class D
Frequency Response: 40Hz–20kHz
Maximum Peak SPL: 128 dB
Horizontal Coverage: 120°
Vertical Coverage: 30°
Software: EVOX JMIX App
Enclosure Material: PP Composite
Mounting: Pole
Power Source: Standard IEC AC Cable
Height: 24.53"
Width: 15.75"
Depth: 18.11"
Weight: 48.94 lbs.
Manufacturer Part Number: 13000557
