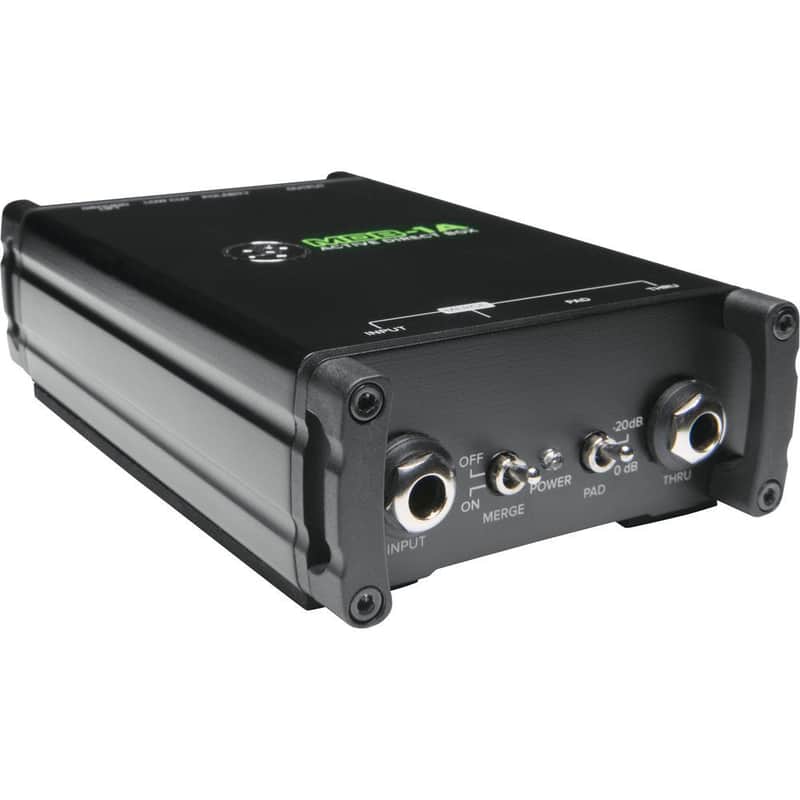

Mackie MDB-1A: Active DI That Gives Hot Instruments Room to Breathe

The Mackie MDB-1A is an active single-channel direct box that converts a high-impedance instrument signal into a clean, balanced, low-impedance output for a mixer, PA, or interface - with the extra headroom that keeps active pickups and line-level sources distortion-free. Powered entirely from 48V phantom, it needs no battery or adapter, and a rugged book-end steel chassis lets it live on a pedalboard or a stage floor for years. For the player or engineer sending an active bass, a keyboard, or a laptop into the front-of-house feed, the MDB-1A is the tank-tough box that makes it sound right.

Active Circuitry Built for High-Output Sources

Where a passive DI can be overwhelmed by a hot signal, the MDB-1A's active solid-state circuitry provides a high 330-kilohm input impedance and generous headroom that suit active-pickup guitars and basses, keyboards, synths, and media players. That high input impedance preserves the full frequency response and natural sustain of an instrument instead of loading it down, while the active gain stage delivers a strong, quiet balanced signal - rated at 0.02 percent THD and a 130 dB dynamic range - to a stage box that may be hundreds of feet away.

Merge Turns Stereo Into a Single Clean Feed

A standout feature of the MDB-1A is its Merge switch, which turns the 1/4-inch Thru jack into a second input and sums both signals to a single mono XLR output. That lets a stereo keyboard, drum machine, or laptop feed both its left and right outputs into one MDB-1A and arrive at the console as one balanced channel - saving an input, a cable run, and a channel strip. A front-panel LED confirms when Merge is active so there is no guessing at the signal path.

Tone and Grounding Control on the Panel

The MDB-1A carries the switches that solve real stage problems. A 120 Hz low-cut filter rolls off subsonic rumble and stage thump for a tighter low end, a polarity switch flips the output 180 degrees to fix phase against a miked cabinet or a second DI, and a -20 dB pad tames the hottest sources before they clip. A ground-lift switch separates chassis and signal ground at the XLR to kill the hum of a ground loop, so a clean, quiet feed reaches the mixer even in an electrically noisy venue.

Built Like a Tank for Stage and Studio

Mackie built the MDB-1A into a sturdy steel book-end chassis engineered to survive being stepped on, dropped, and gigged night after night. The angled housing protects the jacks and switches while keeping them reachable on a dark stage, and the phantom-only power design means one less battery to die mid-set and one less wall adapter to pack. Whether it lives on a pedalboard, in a rack drawer, or loose in a gig bag, it is ready to work the moment 48V arrives.

Who the MDB-1A Is For

Bassists and guitarists with active pickups, keyboard and synth players, worship and live-sound engineers, and anyone sending a laptop or media player to a PA choose the MDB-1A. It cleanly stages an active bass into front-of-house, merges a stereo keyboard into one channel, sends a backing track from a laptop to the board, and holds up to the abuse of touring. When the source is hot and the run is long, the active MDB-1A delivers the headroom and quiet that a passive box cannot.
