Mackie MDB-1P: Send Any Instrument to the Board Clean, Quiet, and Hum-Free

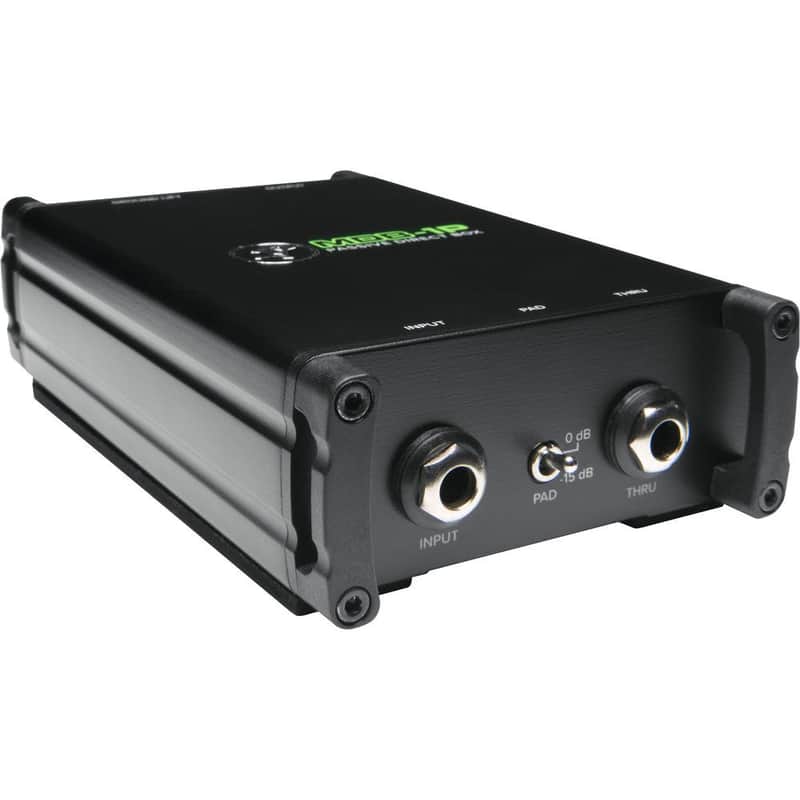

The Mackie MDB-1P is a single-channel passive direct box that converts an unbalanced, high-impedance instrument signal into a balanced, low-impedance feed the mixing console can run over a long cable without noise. A custom-wound isolation transformer, a -15 dB pad, and a ground-lift switch live inside a rugged all-metal shell that shrugs off stage abuse. For the bassist, keyboard player, or acoustic guitarist tired of buzz and dropouts on the DI feed, it is the quiet, dependable box that finally lets the instrument speak for itself.

How Passive DI Isolation Kills the Hum

Plugging a guitar or bass straight into a long line to the console invites two problems: the high-impedance signal loses high end over distance, and connecting the stage to front-of-house grounds creates a ground loop that hums. The MDB-1P solves both at once. Its transformer bridges the instrument's high impedance down to a balanced, low-impedance output that travels 100-plus feet cleanly, and it galvanically isolates the two grounds so no loop current flows. When a hum still sneaks in from other gear on stage, the ground-lift switch severs pin 1 to silence it. Because the circuit is passive, there is nothing to power and nothing to add noise.

Pad and Parallel Thru for Real-World Stages

Active basses and keyboards can push a signal hot enough to overload an input, so the MDB-1P includes a -15 dB pad that tames the level before it ever reaches the transformer, keeping the DI feed clean on loud, high-output sources. The 1/4-inch parallel thru output taps the input signal straight through to a stage amp, so a bassist can send a balanced feed to the board and still run a backline rig from the same instrument - no splitter, no signal loss.

All-Metal Build That Survives the Gig

A direct box lives on the floor, gets stepped on, and rides in a gig bag between shows, so the MDB-1P is built into a rugged all-metal chassis with recessed switches that resist accidental knocks. There is no battery to die mid-set and no wall adapter to lose, which makes it the kind of grab-and-go tool that simply works every time it comes out of the case.

Who the MDB-1P Is For

Bassists, acoustic guitarists, keyboard players, and front-of-house engineers reach for the MDB-1P when they need one reliable channel of clean, isolated DI. Whether you are plugging a passive bass into a club PA, taming a hot active pickup, or cleaning up a hum on a corporate AV feed, this passive direct box is the simple, road-tough way to get a balanced signal to the console.
