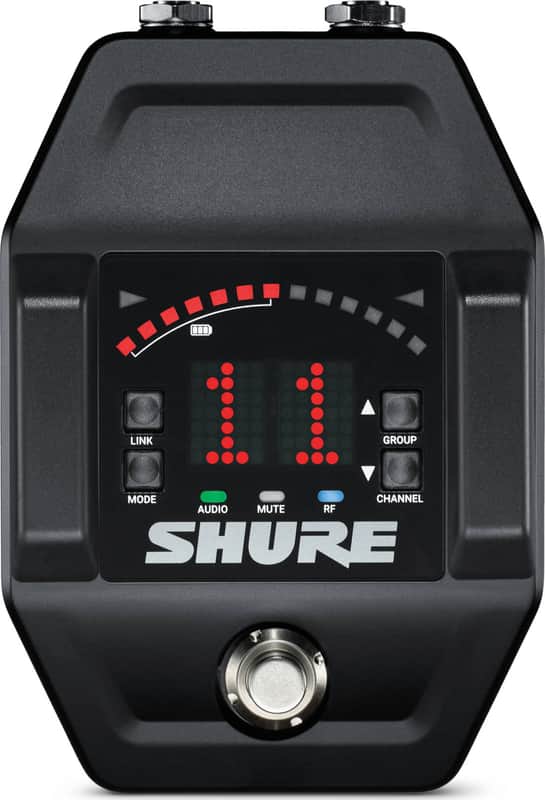

Part of the Shure GLX-D+ system and available as an individual component to be used as an additional or backup receiver, or as a replacement unit, the GLXD6+ is a single-channel digital wireless audio receiver compatible with the GLXD1+ bodypack transmitter (available separately). The unit is housed in a rugged metal pedalboard-ready chassis with two fixed faceplate antennas, and it features a built-in tuner with an easy-to-see display. Shure's next-generation technology automatically scans both the 2.4 and 5.8 GHz frequency ranges to seek out the best possible digital transmission channel for your performances at a typical operating distance of up to 100' indoors and 65' outside. The system transmits audio with a flat, 20 Hz to 20 kHz frequency response and 120 dB of dynamic range, leaving the sound of your instrument unaffected by the wireless components. A multi-segment LED clearly shows remaining battery life from the paired transmitter and also functions as an easy-to-read tuner. The transmitter's input gain can be wirelessly adjusted right from the receiver's front panel to optimize the audio signal. In addition to a 1/4" instrument output, the unit also features a 1/4" input, allowing you to use it as a wired tuner. A power supply is provided and the DC power input is compatible with standard positive- or negative-tip power supplies, allowing the GLXD6+ to slot right into your pedalboard. Note that even when the unit is plugged in, the display will not activate until a cable is connected to either the 1/4" output or input. A durable footswitch provides instant muting in both the receiver and tuner modes.

Product Features

• Compact Wireless Receiver for Your Pedalboard
• Dual Band Technology Operates in Both the 2.4GHz and 5.8GHz Bands
• Automatic Frequency Management Seamlessly Switches Your Frequency When Interference Appears
• Onboard Display Provides at-a-Glance Status Monitoring
• ¼" Input Offers Wired Operation When Needed
• Pedal-Sized Enclosure Easily Fits Into Your Signal Chain
• Onboard Tuner Eliminates a Pedal From Your Board
• Built-In USB-C Port for Firmware Updates

Attributes

• Form Factor (X): Tabletop
• Color: Black

Technical Specifications

• Type: Electric
• Dimensions: 1.89" H x 3.7" W x 5.4" D
• Weight: 1.23lbs
• Inputs: 1 x 1/4" (tuner/true bypass)
• Outputs: 1 x 1/4"
• Compatibility: Shure GLX-D+ Transmitters
• Simultaneous Channels: 1
• System Frequency Range: 2.4 GHz, 5.8 GHz
• System Operating Distance: Up to 200 ft. Line-of-sight
• Transmitter Dynamic Range: 120dB (A weighted)
• Frequency Band: Z3 Band
• Receiver Power Source: 9V DC power supply (included)
• Frequency Response: 20Hz-20kHz
