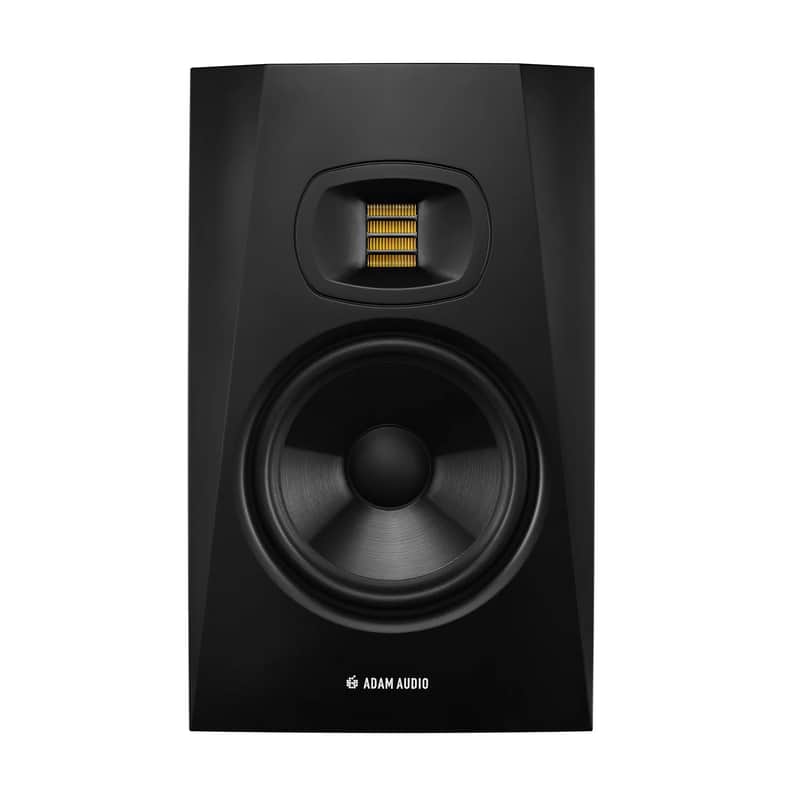

The T7V is a 2-way studio monitor designed for near-field vertical use.

The T7V features a 7" woofer that extends bass down to 39 Hz, while the U-ART tweeter diaphragm delivers a perfect, extended high-frequency response up to 25 kHz, virtually unmatched in this price range. The U-ART tweeter is mounted on a precision waveguide with the same dispersion control attributes as the High-Frequency Spreading (HPS) waveguide used in ADAM Audio's S-Series studio monitors. The waveguide's highly uniform high-frequency dispersion allows for an incredibly wide listening position, freeing you from being stuck in a rigid mixing position while working.

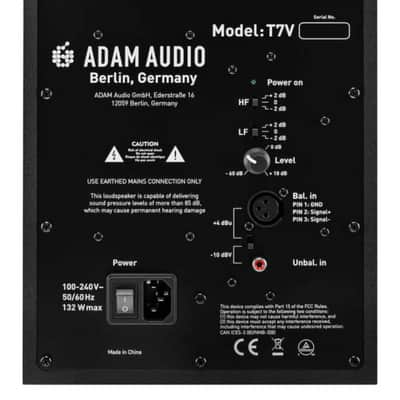

On the rear of the T7V's beveled cabinet, a rear-firing bass-reflex port connects to a rugged metal backplate that houses the analog input connections. The U-ART tweeter is powered by a 20W Class D amplifier, while a Class D amplifier... 50W powers the woofer. These new center speakers produce an impressive maximum SPL of 110 dB per pair.

The wide frequency response, high dynamic range, excellent transient response, wide ideal listening position, and small footprint make the T7V ideally suited for small control rooms in music production, video post-production, and audiovisual production, for the modest budgets many setups have to work with.

1.9" U-ART accelerated ribbon tweeter with HPS waveguide

7" polypropylene woofer with rear-mounted bass-reflex port

Total RMS power: 70W

Frequency response: 39 Hz - 25 kHz

Max. NPA per pair at 1 m: 110 dB >=110 dB

Technical Specifications

BASS DRIVER

Number: 1

Bass Basket Diameter: 7" (178 mm)

Cone Material: Polypropylene

TREBLE DRIVER

Number: 1

Type: U-ART

Diaphragm Area: 4 square inches (2420 mm²)

Equivalent Diaphragm Diameter: 1.9" (48 mm)

Speed ​​Transformation Ratio: 4:1

Condyle Weight: 0.17 g

Waveguide: HPS

INTEGRATED AMPLIFIERS

Number: 2

Low Frequency: 1

Type: PWM

RMS Power: 50 W

High Frequency: 1

Type: PWM

RMS Power: 20 W

CONTROL OPTIONS

Sensitivity Input: Switchable +4 dBu / -10 dBV

Gain: Yes

High-platter filter: -2 dB, 0 dB, +2 dB

Low-platter filter: -2 dB, 0 dB, +2 dB

INPUT CONNECTORS

Analog: XLR, RCA

Input impedance: 10 kOhm / 20 kOhm

GENERAL DATA

Panel: Rear

Frequency response: 39 Hz - 25 kHz

THD > 80 Hz: 0.5%

Max. NPA per pair at 1 m: 110 dB >=110 dB

Cutoff frequency: 2.6 kHz

Max. power consumption Power consumption: 132 W

Weight: 7.1 kg (15.7 lb)

Height x Width x Depth: 13.7" x 8.3" x 11.5" (347 mm x 210 mm x 293 mm)

Manufacturer's warranty: 5 years (2-year warranty plus an optional 3-year warranty with product registration)

Package contents: Power cord, Quick start guide
