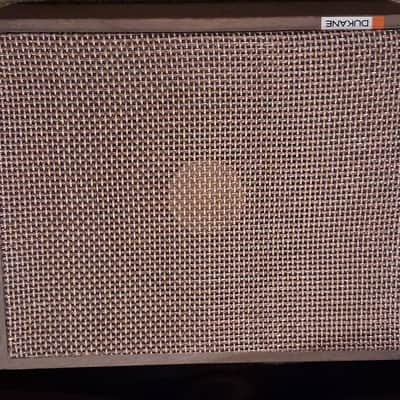

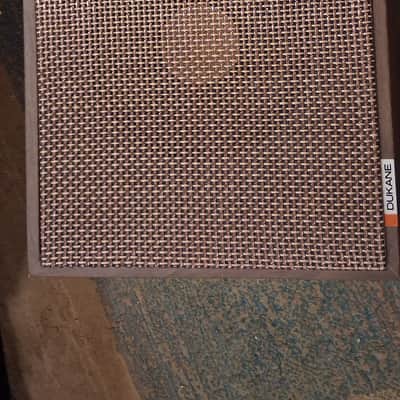

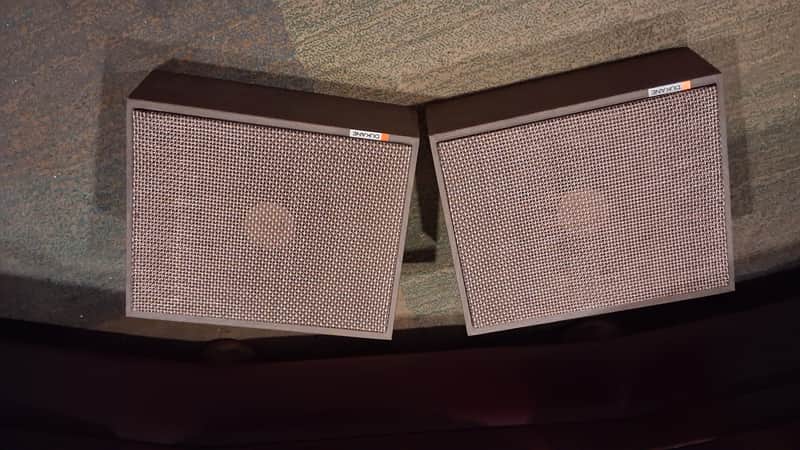

Dukane 6A550 70s - Wood Veneer Speakers

The Dukane 6A550 (often cross-referenced with related vintage intercom speaker models like the 6A630 or 6A650) is a vintage, commercial-grade ceiling / wall intercom loudspeaker typically manufactured for institutional use in schools, hospitals, and office buildings.

Core Features & Design Primary Application: Designed primarily for public address (PA) systems, background music, and mass-notification intercom networks.

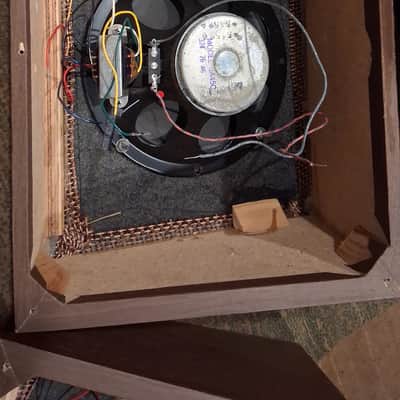

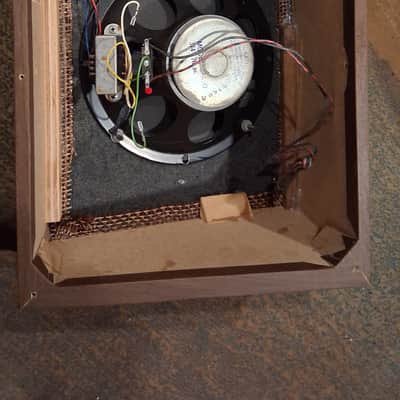

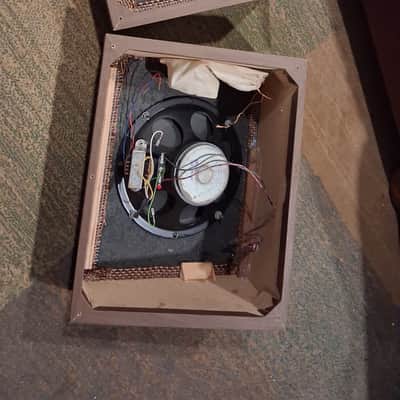

Acoustics: Engineered for maximum vocal clarity rather than deep bass, typically covering a frequency response optimized for speech recognition.Technical Wiring (70V / 25V Systems)Unlike standard consumer home speakers that run at 4 or 8 ohms, vintage Dukane institutional speakers utilize an internal multi-tap transformer. This allows them to hook up to commercial high-voltage distributed audio loops:70-Volt / 25-Volt Line Compatibility: The rear transformer features specific color-coded wire leads allowing technicians to select different power wattage levels (e.g., 0.5W, 1W, 2W, or 4W) depending on how loud that specific room needs to be and what system voltage the master amplifier runs on.Daisy-Chaining: This transformer system allows dozens of these speakers to be connected in parallel down a single long run of wiring without overloading the main amplifier.

Usage Tips for Collectors & Hobbyists: If you have acquired a vintage Dukane speaker and want to use it at home: Bypass the Transformer.

To connect this directly to a standard modern home audio stereo receiver or amplifier, you must bypass the integrated 70V/25V step-down transformer. Connect your speaker wires directly to the positive and negative terminals located on the voice coil of the speaker cone itself (usually an 8-ohm load).Do Not Connect 70V Directly to Home Stereos: Connecting a home amplifier directly to the 70V transformer inputs will yield incredibly faint sound, distortion, or could potentially damage your equipment.

These speakers are in very good condition.
