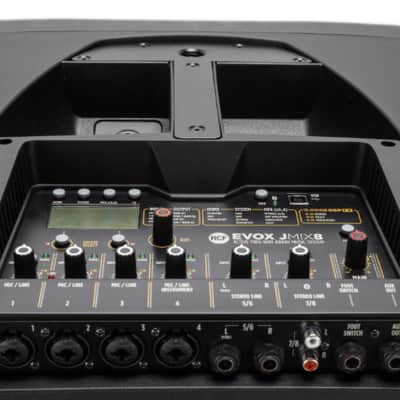

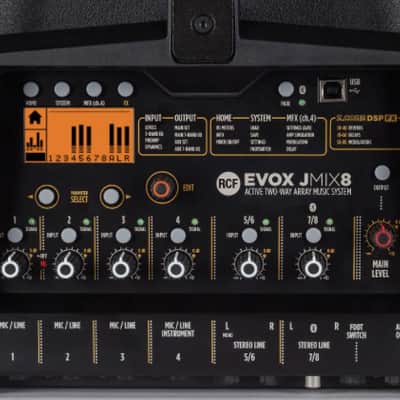

Taking the EVOX J Series one step further, RCF has added an 8-input digital mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations.
An EVOX iOS/Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input,the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer
Features
- 128 dB Max SPL
- 1400 Watt 2-way power
- 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
- DSP Processing with FiRPHASE
- 12 inch woofer, high power 2.5 inch voice coil
- 8 x 2 inch ultra compact fullrange 1.0 inch voice coil
- 92.5 x 13.77 x 17.71 in (HxWxD)
- Approx. Weight: 53.8lbs
Specifications
- Acoustical Frequency Response: 40 Hz - 20000 Hz
- Max SPL @ 1m: 128 dB
- Horizontal coverage angle: 120°
- Vertical coverage angle: 30°
- Input signal: bal/unbal
- Input connectors: XLR, Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
- Crossover Frequencies: 220 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, Boost, Mic/Line
- Total Power: 1400W Peak, 700W RMS
- High frequencies: 400W Peak, 200W RMS
- Low frequencies: 1000W Peak, 500W RMS
- Cooling: Convection
- Connections: VDE
- Electronic Frequency Response: 20 Hz - 20 Hz
- THD+N, 20dB gain, 0dBu out: 0.004% A-Weighted
- Main Out Impedance: 150 ohm
- Main Out Level: 19 dBu
- Aux Out Impedance (ohm): 150 ohm
- Aux Out Level: 19 dBu
- D/A Dynamic Range: 108 dB
- Pole Mount/Cap: M20 Thread
- Cabinet/Case Material: PP Composite
- Handles: 1
- Grille: Steel
- Color: Black
Inputs
- Mic: 4
- Remote Controlled Storable Gain: Yes
- Gain Range: 0 dB - 45 dB
- Input Noise Level: -114 dBu A-Weighted
- Mic Inputs Impedance: 3 kohm
- Low Cut: 20 Hz - 1000 Hz
- Phantom Power +48V: Yes
- Mono Line: 4
- Gain Selection: 0 dB - 45 dB
- Line Input Impedance: 11 kohm
- HI-Z Line Inputs: 1
- HI-Z Line Inputs Impedance (Mohm): 1 Mohm
- A/D Dynamic range: 108 dB
- Stereo Line: 2
- Gain Selection: 0 dB - 45 dB
- Stereo Line Input Impedance (kOhm): 11 kohm
