Desert Island Tone & Versatility

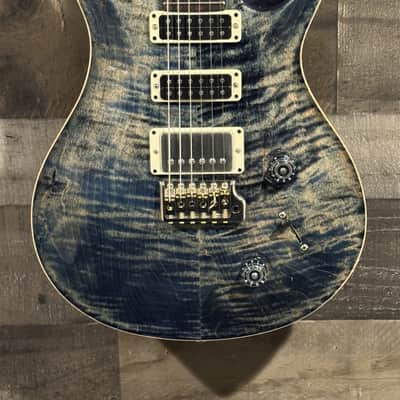

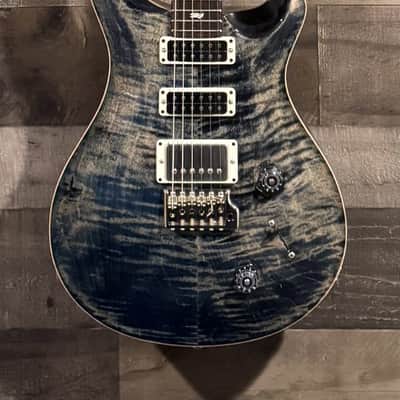

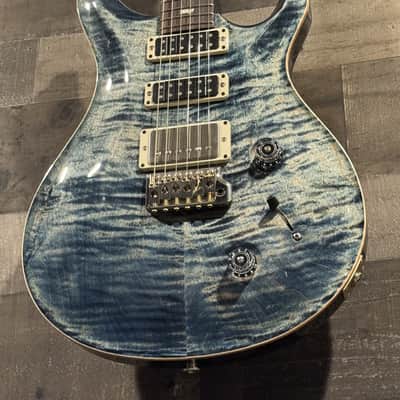

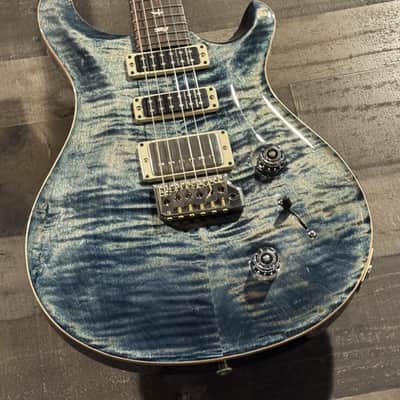

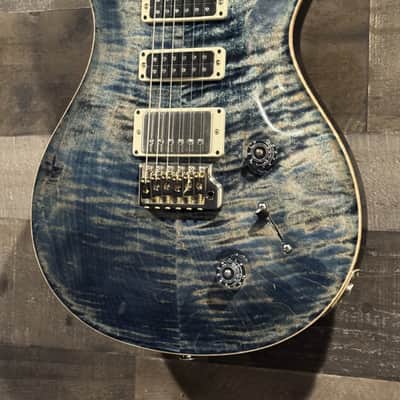

The PRS Studio model is a modern take on a traditional single-single-hum guitar, with PRS’s proprietary Narrowfield pickups in the middle and bass positions and a McCarty III humbucking treble pickup. McCarty III pickups were spec’d by Paul Reed Smith and the PRS New Products Engineering team after years of hands-on research with coveted vintage pickup models and advancements in signal analyzation and “tuning” technology. PRS McCarty III pickups are vintage-inspired humbuckers that bring a vocal clarity to their full, warm tone.

The PRS Studio offers punchy singlecoils, vintage scooped tones, and the chunky kick of a treble humbucker screaming in one instrument. This whole new scope of sounds are only possible with a three-pickup guitar and are easily accessible in the Studio model thanks to the push/pull tone control and 5-way blade switch. With seven combinations in all, the PRS Studio covers classic tones but maintains a unique voice making it a perfect “desert island” guitar.

Other specifications include a maple top, mahogany back and neck, and a rosewood, 22-fret, 25” scale length fretboard with PRS trademark bird inlays. The PRS Studio is anchored by PRS’s patented Gen III trem and Phase IIl Locking Tuners with Wing Buttons, both designed for excellent tuning stability while maximizing the transfer of the strings’ vibration through the instrument.

Featured Specifications PRS Patented Tremolo, Gen III

Meticulous design delivering sonic fidelity, player ergonomics, and revolutionary tuning stability.

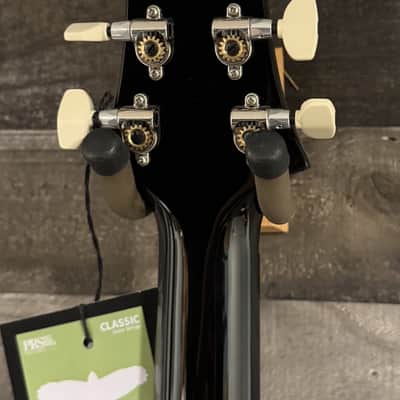

PRS Phase III Locking Tuners with Wing Buttons

Modern locking technology with vintage elegance, these lightweight tuners promote tone transfer for a louder, more resonant instrument.

PRS McCarty III Pickups

Vintage-inspired pickups that bring a vocal clarity to their full, warm tone.

Specifications Body Body Construction Solidbody Top Wood Maple Back Wood Mahogany Top Carve Violin Neck Number of Frets 22 Scale Length 25" Neck Wood Mahogany Neck Construction One-Piece Truss Rod PRS Double-Acting Neck Shape Pattern Neck Depth at the 1/2 Fret 7/8" Neck Depth at the 12 1/2 Fret 61/64" Neck Width at the Nut 1 11/16" Neck Width at the Body 2 1/4" Fretboard Wood Rosewood Fretboard Radius 10" Fretboard Inlay Birds Headstock Logo Signature, Inlaid Neck/Body Assembly Neck/Body Assembly Type Set Finish Finish Type High-Gloss Nitro Hardware Bridge PRS Patented Tremolo, Gen III Tuners PRS Phase III Locking Tuners with Wing Buttons Hardware Type Nickel Nut PRS Truss Rod Cover "Studio" Electronics Treble Pickup McCarty III Middle Pickup PRS Narrowfield® Bass Pickup PRS Narrowfield® Controls Volume and Push/Pull Tone Control with 5-Way Blade Pickup Switch Additional Info Strings PRS Signature 10-46 Tuning Standard (6 String): E, A, D, G, B, E Case Hardshell Case Options 10 Top with Hybrid Hardware Controls Studio - Controls Description

5-way blade pickup switch

Position 1 (down) - treble pickup

Position 2 - treble and middle pickups

Position 3 - middle pickup

Position 4 - middle and bass pickups

Position 5 - bass pickups

Push/pull tone control

Down - activates treble humbucker in positions 1 & 2

Up - activates treble single coil pickup in positions 1 & 2
