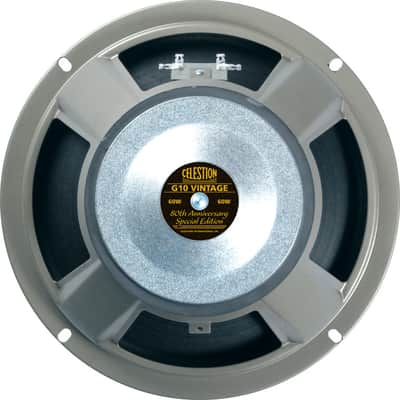

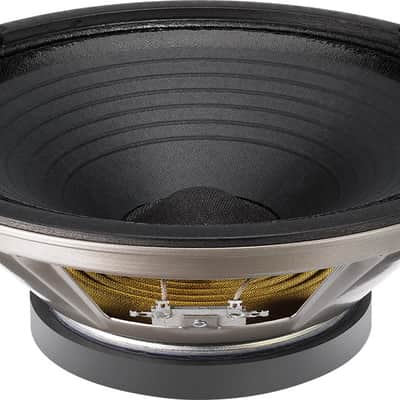

Celestion G10 Vintage 10" guitar speaker with powerful ceramic magnet 60W 16-Ohm

A worthy successor to the Vintage 10 the G10 Vintage is a 10 speaker with bags of attitude. Using powerful ceramic magnets and the same voice coil design as the Vintage 30 the G10 packs an impressive punch with its 60W power handling.With the fast response of a 10 but with the strong and creamy vocal tones of a 12 the G10 is the ideal choice to add depth to hollow- sounding amps or for players who want to get humbucker-type girth from single-coils. Can be used singly to add vocal warmth to small valve combos or in quartets for a weightier but still lively attack.

Specifications

• Nominal diameter: 254mm / 10in
• Power rating: 60W
• Rated impedance: 8Ω or 16Ω
• Sensitivity: 97dB
• Chassis type: Pressed steel
• Magnet type: Ceramic
• Magnet weight: 0.88kg / 31oz
• Voice coil diameter: 1.75in / 44mm
• Voice coil material: Round copper
• Frequency range: 100-5500Hz
• Resonance frequency, Fs: 115Hz
• DC resistance, Re: 7.47Ω or 12.33Ω

Mounting Information

• Cut-out diameter: 229mm / 9in
• Diameter: 256mm / 10.1in
• Magnet structure diameter: 134mm / 5.3in
• Mounting hole dimensions: 6x8mm / 0.2x0.3in
• Mounting hole PCD: 245mm / 9.6in
• Number of mounting holes: 4
• Chassis depth (inc gasket): 73mm / 2.88in
• Magnet depth: 31mm / 1.22in
• Overall depth: 104mm / 4.1in
• Unit weight: 2.4kg / 5.3lb

UPC

• 739894537353
