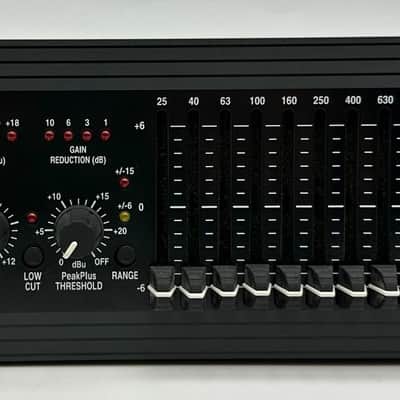

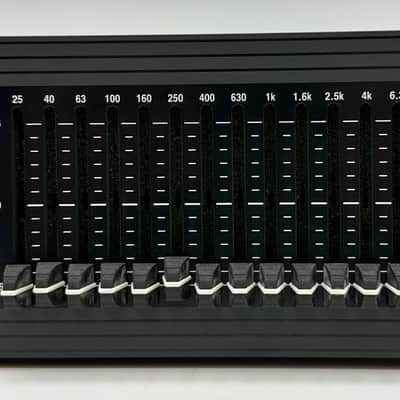

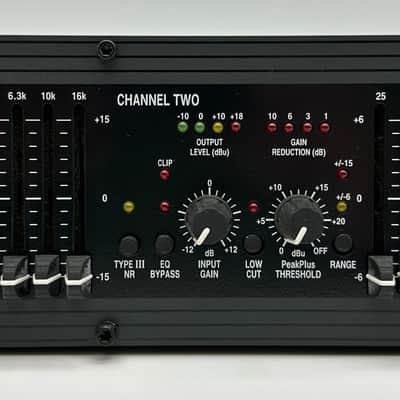

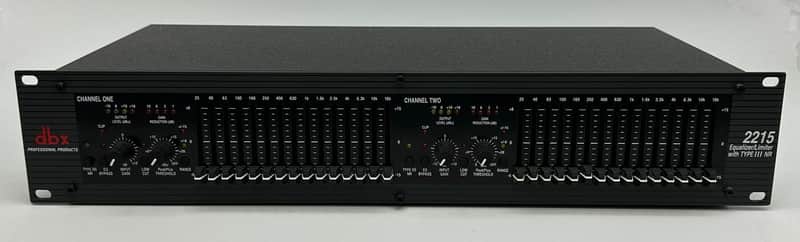

DBX 2215 Dual 15-Band Graphic Equalizer / Limiter

This equalizer is used, tested, in good working condition.

SKU: GRN065685

Features and specs:

* Dual Channel

* 15-Band

* Type III Noise Reduction

* PeakPlus Limiter

* 4 Segment LED Bargraph for GR and Output

* Status LEDs

The 2215 is a dual channel, 15 band 2/3 octave graphic equalizer with a difference. In addition to the usual features such as 45mm center detented sliders with selectable boost/cut range, high pass filters, active balanced input and output connections, variable input level controls, clip level indicators, and internal power supply, the unit provides both built-in noise reduction, and peak limiting.

The noise reduction is dbx's Type III, which can increases the signal to noise ratio of the 2215 by up to 20dB at the push of a button. For further enhancement, a PeakPlus limiter is included. Front panel 41-detent rotary controls vary the threshold of the limiter, while four-LED gain reduction bar graphs display the resulting effect of the process. Additionally, the unit has EQ bypass switches with LED indicator for each channel, is housed in an all-steel constructed 2U chassis, and is intended for installation in standard 19" equipment racks. The XLR and 1/4" TRS connectors use balanced, low noise circuitry, and barrier strips are provided for added convenience.

The 2215 is designed to work with a variety of input signal levels and may be used in applications such as live sound, recording studios, instrument racks, as well as any conventional fixed installation environment.

Type III Noise Reduction

Instantly encodes/decodes at the push of a button

PeakPlus Limiter

With threshold range from 0dBu to +24dBu can transparently process the wildest hits or the subtlest nuances of any signal

High-pass filters

Selectable boost/cut range of 6dB or 15dB

Variable input level controls

Clip level indicators

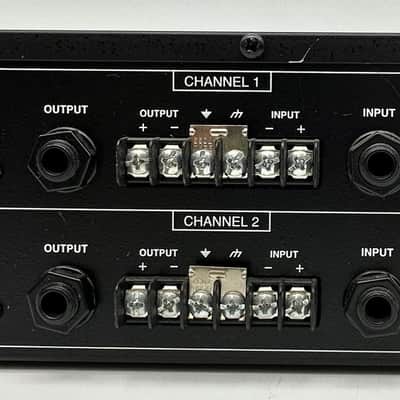

Balanced and unbalanced input and output connections

Number of Channels 2

Inputs 2 x XLR, 2 x 1/4" TRS phone, barrier strip

Output 2 x XLR, 2 x 1/4" TRS phone, barrier strip

Noise

>102dB unweighted, noise reduction in

>94dB unweighted, noise reduction out (+/-6dB range)

>90dB unweighted, noise reduction out (+/-15dB range)

Power Requirements

100VAC 50/60Hz

120VAC 60Hz

Dimensions 2U rack, 7 15/16" deep
