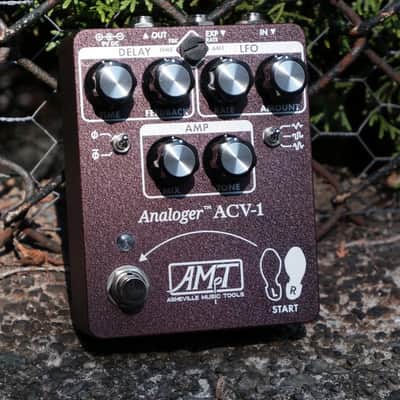

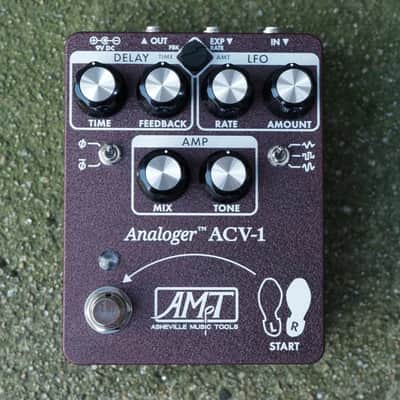

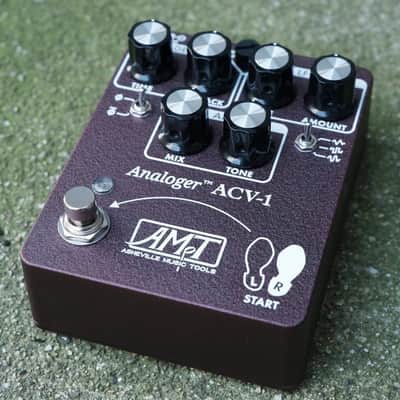

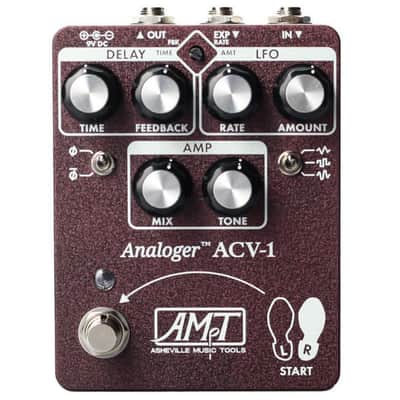

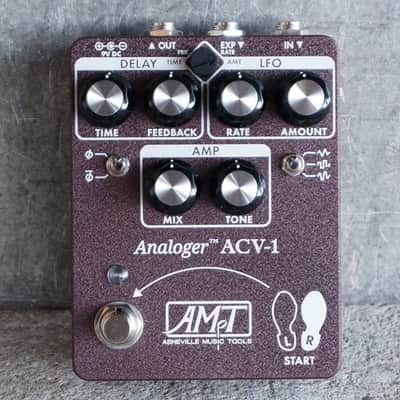

Asheville Music Tools ACV-1 Chorus/Vibrato Time Warping Device Pedal

ACV-1 Chorus/Vibrato Time Warping Device
The Analoger Series ACV-1 is AMT's latest creation in 100% analog flexible chorus/vibrato/slap back modulation effects. The ACV-1 consists of a modulated BBD delay line with a flexible supporting cast of synthesizer-inspired controls. On the surface, the ACV-1 is simply a highly tweakable classic chorus. In reality, it is a veritable powerhouse of time warping modulation effects: shimmering comb filter swirls, luscious true pitch vibrato, glitchy textures, ringing metallic pipe tones, and even a faux reverb.

This astounding analog modulator was engineered by Hawker to deliver the ultimate time warping experience. With a bit of a mind flip, you’ll be into the time slip—and nothing will ever be the same!

Electrical Specifications
• Type: 100% Analog signal and control path.
• Bypass Footswitch: effect on/off user selectable True Bypass or JFET Buffered (Accessible by removing ACV-1 Cover)
• Power: 9VDC @ <150mA. 70-90mA typical. Up to 250mA start up. Standard pedal center negative 2.1mm x 5.5mm barrel.
• Delay Time: 3.1ms - 59ms. 1.9ms - 95ms with LFO and to 155ms with external CV
• Feedback: 0 to near infinite. Capable of self-oscillation using tone or EXP/CV input coupled with knob position.
• Rate: LFO RATE, from 0.1Hz to 14Hz (28Hz with CV control)
• Amount: LFO depth control from OFF to 60% of TIME sweep
• Mix: Center 50%. Adjust from full wet to full dry
• Tone: ~740Hz center tilt filter. Center = Flat to 0.3dB, High +5dB to -10dB, Low +4dB to -7dB.
• Phase Switch: 180° phase shift of wet signal and feedback signal.
• LFO: Selectable Triangle, Sine or slewed Square wave
• Expression Switch: 4 position rotary selects Time, Feedback, Rate or Amount external control. All controls are additive to the front panel knob adding extended range. TRS jack usable with CV or Expression pedal, (CV range is 0-5V). Ring supplied current limited 5V output. Control input on Tip.
• Input impedance: >1MO
• Output impedance: 1KO Max (5k max for buffered bypass)
• Max input level: +14.25dBµ (4.0V RMS)
• Max output level: +14dBµ (3.9V RMS)
• Noise Reduction: 2:1 broadband with 10dB high frequency emphasis
• Genuine Hammond™ die-cast aluminum enclosure.
• Dimensions: D=4.95” (12.5 cm), W=3.75” (9.4 cm), H=2.25” (5.8 cm)
• Weight: 15oz (425g)
