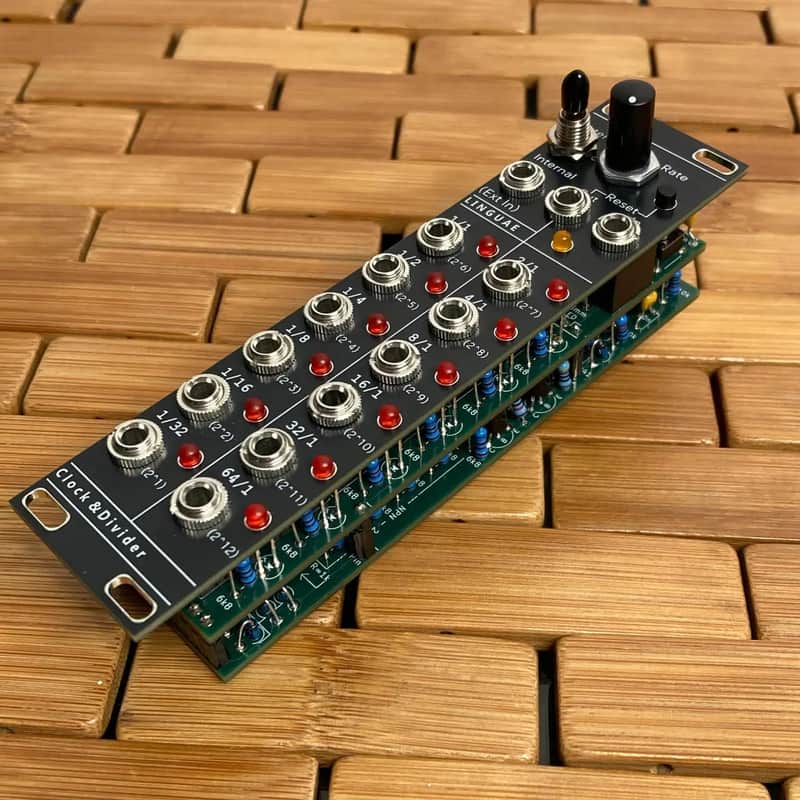

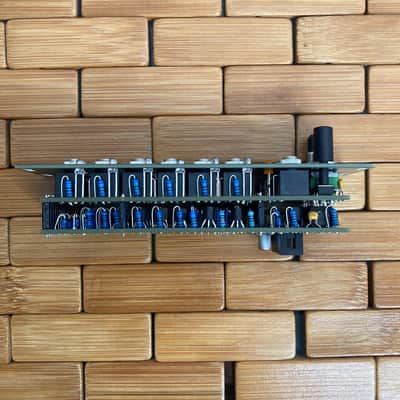

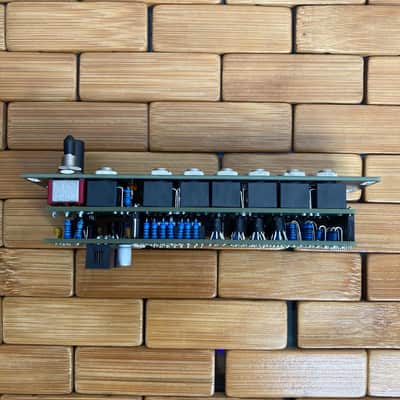

Linguae Devices: Clock & Divider v1.2

6HP Eurorack Module.

This module is a power-of-two clock divider (12-stage ripple binary counter, specifically) - that runs from an internal clock, or an external clock input.

~~
Each stage counts the falling edge of the previous stage ~ the off-states are aligned, and the on-states are syncopated, as per CMOS logic.
~~

The external input accepts both unipolar signals, and AC waveforms by implementing a schmidt trigger.

Schmidt thresholds:
Rising(High): ~1.5v
Falling(Low): ~ 0.9v

(can vary slightly by component tolerances)

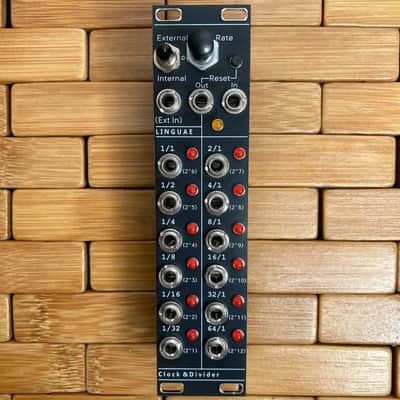

Inputs --

- Clock input
- Reset

Outputs

- 12 gate outs
- Reset out

*LEDs only light up if a cable is plugged in*

--------

Will come with:
- Power cable (16pin to 10pin IDC Connector)
- M3 Screws and Washer (4 pieces)
- And the module, of course!

Revisions:

-Schmidt trigger at external input.
-Reduced power draw.
-Improved ground plane integrity.
-Output protection diodes (series) now have lower junction capacitance.
-Swapped output protection diodes for schottckys, with lower fV, and junction capacitance.
-Some cosmetic changes.

If you want a different LED color, just send me a message!
