With a career of being copied, the EVH Striped Series guitars put Eddie Van Halen's historic and authentic style in your hands ... These are high powered, high-performance machines as kickbutt to look at as they are to play.

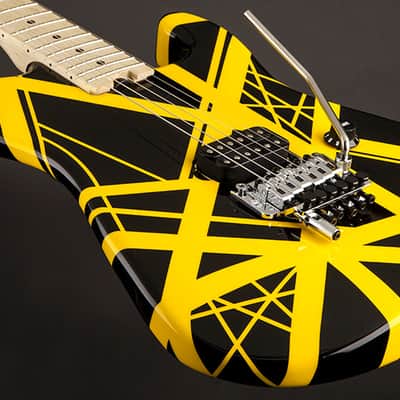

The Striped Series guitar features a basswood Stratocaster®-style body decked out in Eddie's famed striped graphics - Red with Black Stripes, Black with Yellow Stripes and White with Black Stripes.

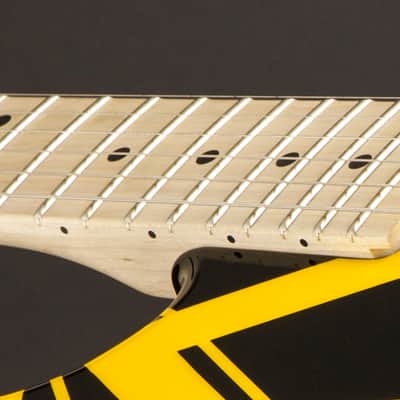

These unique guitars also have a graphite-reinforced bolt-on quartersawn maple neck with a hand-rubbed oil finish on the back, 12"-16" maple fingerboard with 22 jumbo frets and black dot inlays and a thumbwheel truss rod adjustment wheel for convenient neck relief tweaks.

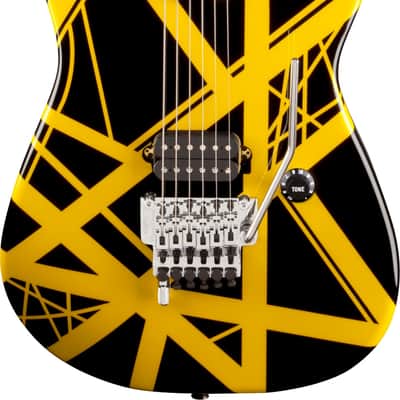

Powered by a single ferocious direct-mount Wolfgang® humbucking bridge pickup, the Striped Series guitars also feature a single skirted Strat-style volume control knob (labeled "tone") that houses a 500K EVH® Bourns® low friction pot with treble bleed circuit, single-ply black pickguard (White with Black Stripes model only), bar string retainer and Floyd Rose® locking nut, EVH-branded Floyd Rose® locking tremolo with EVH D-Tuna®, EVH die-cast tuners, chrome hardware, vintage-style strap buttons, EVH neck plate and licensed Fender® Strat® headstock. The White with Black Stripes model also features a top-mount output jack.
- Model Number: 5107902528
- Series: Striped Series
- Color: Black with Yellow Stripes
- Number of Strings: 6
- Orientation: Right-Hand
BODY
- Body Finish: Gloss Urethane
- Body Shape: Other
- Body Material: Basswood
ELECTRONICS
- Bridge Pickup: EVH® Wolfgang® Humbucking
- Pickup Color: Black
- Controls: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit
- Pickup Switching: None
- Pickup Configuration: H
NECK
- Neck Material: Quartersawn Maple
- Neck Construction: Bolt-On with Graphite Reinforcement
- Neck Thickness: .790" at 3rd Fret & .810" at 12th Fret
- Neck Finish: Hand-Rubbed Satin Urethane
- Neck Shape: EVH® Modified "C" Backshape
- Scale Length: 25.5" (64.77 cm)
- Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
- Fingerboard Material: Maple
- Number of Frets: 22
- Fret Size: Jumbo
- Nut Material: Floyd Rose® R3 Locking
- Nut Width: 1.6875" (42.86 mm)
- Position Inlays: Black Dot
- Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
- Truss Rod Wrench: 2.5 mm Hex
- String Trees: Floyd Rose® Retainer Bar
- Headstock: Licensed Fender® Stratocaster®
- Neck Plate: 4-Bolt Standard
HARDWARE

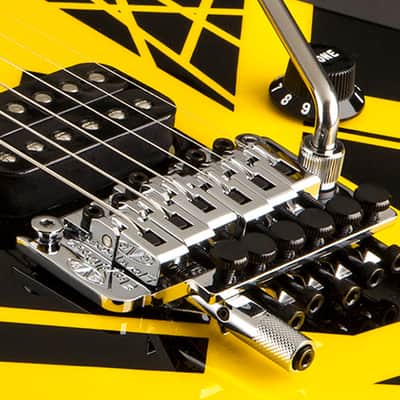

- Bridge: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
- Hardware Finish: Chrome
- Tremolo Arm: Floyd Rose® 1000 Series Locking
- Tremolo Block: Brass
- Tuning Machines: EVH®-Branded Gotoh®
- Control Knobs: Black Stratocaster®-Style Skirt (Labeled "Tone")
MISCELLANEOUS
- Strings: EVH® Nickel Plated Steel (.009-.042 Gauges)
- Strap Buttons: Oversized
- Case/Gig Bag: Optional EVH® Striped Hardshell (p/n 022-6100-506); Optional EVH® Black Gig Bag (p/n 022-1512-006)
ACCESSORIES
- Included Accessories: Tremolo Arm, Hex Keys & User Manual
