Custom Soundforce SL-D

Custom Soundforce SL-D drum module.

You can download and install other sample packs from Soundforce.

Currently available are 707, 606, 909 and 808 samples.

Prior to this modification you would have to remove the unit from the rack to reprogram the sounds.

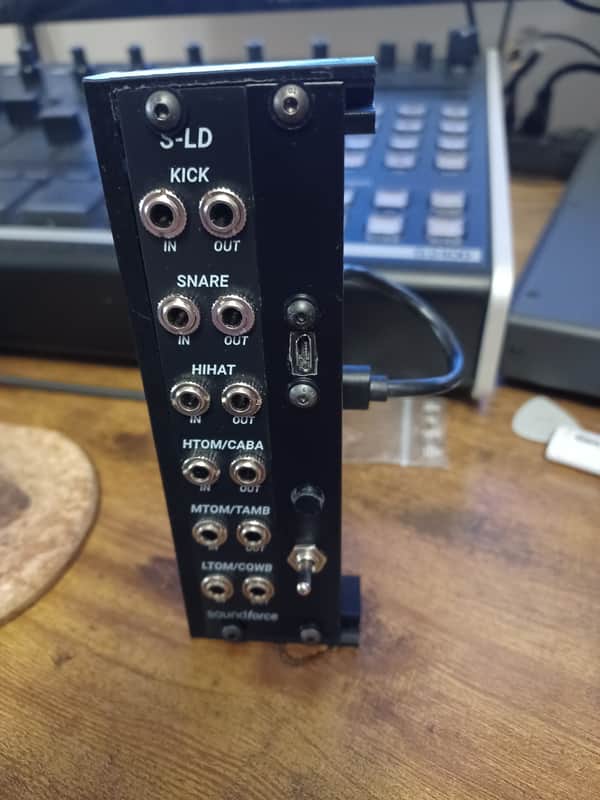

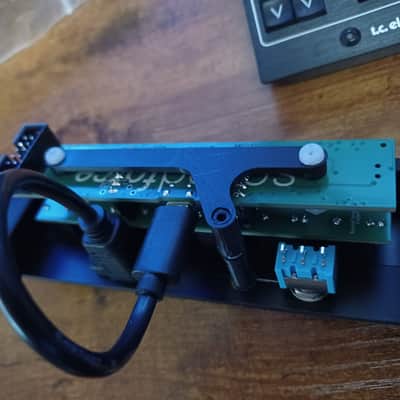

I've added a custom bracket and switch to activate the firmware update panel from the front panel.

Also in this modification is a front panel switch to switch between the Toms and Percussion sounds for the last three channels.

Prior to this modification you would have to remove the unit from the rack to switch the sounds

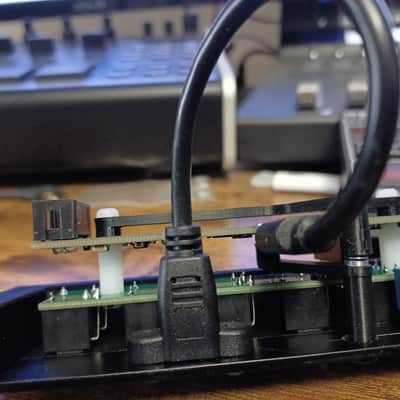

I also added a USB micro extension to the front panel.

The additional front panel is an Erica 3hp blank.

Soundforce S-LD

Add the flavors of the classic LinnDrum to your modular rig with Soundforce's S-LD, a six voice LinnDrum sample player. With each voice having a trigger input and audio output, you have three standard drum voices and three variable voices that can switch between one of three toms and three different percussion instruments. High quality samples that hark back to a classic with immediate dancefloor vibes, the S-LD is the obvious choice for adding the beloved sound of the '80s to your modular synthesizer.

S-LD Features

• LinnDrum sample-based drum module
• Six voices with individual trigger inputs and audio outputs
• Bottom three voices are assignable to one of two voices via rear sliders
• Voices include kick, snare, hihat, high tom/cabasa, mid tom/tambourine, low tom/cowbell
