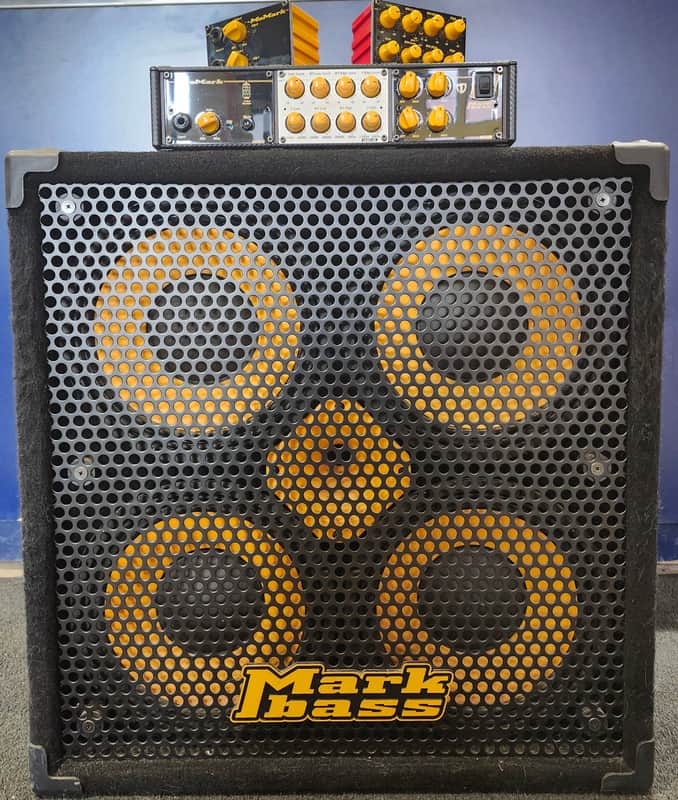

Markbass Amp Frame 800 (5 Mod) & STD 104 HR-4

Amplifier

Markbass Amp Frame 800

Two combo speakon/1/4" speaker jacks, effects loop (parallel), XLR DI out with pre/post EQ switch and ground lift, and tuner out.

Digital power amp
800W @ 4 ohms
450W @ 8 ohms
Custom digital power supply

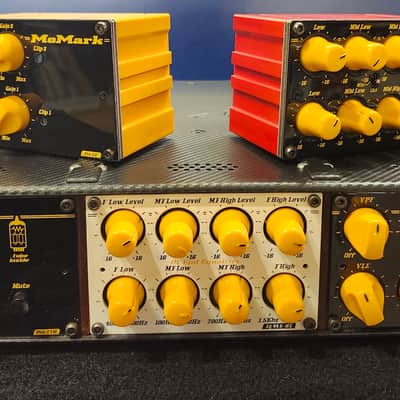

Pre-installed module :

Momark Pre T1M

• Tube preamp
• Mute switch
• Warm and clear tube sound
• Preamp inspired by the TA 503.

Momark EQ44S-HE

• 4-band semi-parametric equalizer
• EQ section inspired by the TA 503
• Super-flexible EQ control
• High-end components

MoMark MVVL

• Master level control
• Line out level control
• VLE filter
• VPF filter
• High-tech bi-band limiter

Extra module :

MoMark Pre S2

• Two solid-state preamps
• Ultra-linear frequency response
• Inspired by the LMK preamp

MoMark EQS4

• Two channels of four-band EQ
• Channel selector switch: CH1, CH2, CH1+CH2
• Inspired by the two-channel LMK EQ section

Cabinet

MarkBass Standard 104HR (STD 104HR-4)

• IMPEDANCE: 4 ohms
• SPEAKER SIZE: 4x10 in.
• BASS PORT: rear
• TWEETER: 1" compression driver with custom horn
• POWER HANDLING: 800W RMS (AES Standard)
• CROSSOVER FREQUENCY: 3.5 kHz
• FREQUENCY RESPONSE: 35 Hz to 20 kHz
• SENSITIVITY: 103 dB SPL
