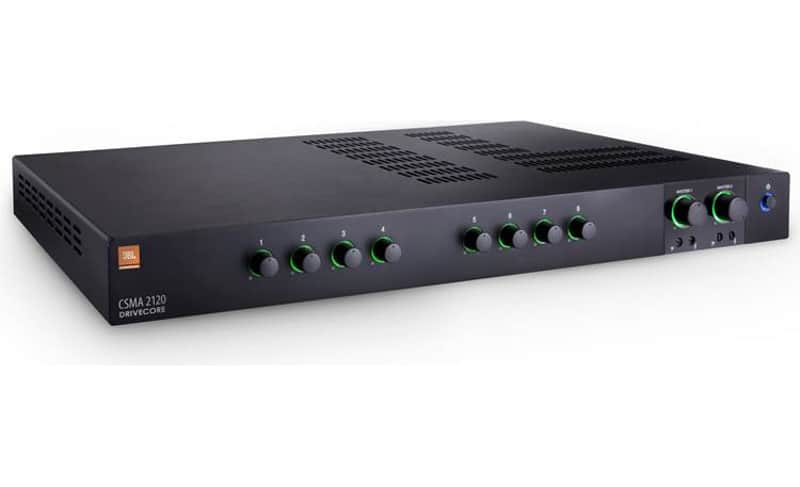

JBL CSMA 2120 8-input commercial mixer/amplifier — 120W x 2 at 70V

If you need a powerful, versatile sound system for a growing business, the JBL CSMA 2120 has you covered. Eight input channels give you plenty of options for background music, with two priority channels for microphone connections so paging and announcements can be heard loud and clear. With two channels of 120 watts each, capable of driving 4- or 8-ohm loads, you'll have all the flexibility you need to build a dream system for your place of business.

The CSMA 2120 is even easy to operate when hidden away in a darkened cabinet, thanks to the illuminated rings around each dial on the front panel. The lights are signal-sensing, so each will glow green as soon as an input signal is detected. The mixer/amplifier is also compatible with remote volume control (not included) via twin RJ-45 ports on the back panel.

Product highlights:

• amplified mixer for commercial audio distribution features 8 input channels and 2 output channels of 120 watts each
• supports 70-volt and 100-volt distributed audio systems without the need for a separate transformer
• stable from 4-8 ohms
• uses Crown's high-efficiency DriveCore™ technology to provide excellent audio performance
• independent bass and treble controls for each output channel
• selectable 27V phantom power for use with compatible condenser mics
• DIP switches for input routing
• illuminated rings around buttons and dials for easy operation in darkened environments
• space-saving single rack space design
• rack mounting kit included
• Energy Star® certified

Inputs and outputs:

• dual 5-pin balanced mic/line Euroblock inputs with priority override for announcements
• six inputs with 3-pin balanced mic/line Euroblock connector, or line-level stereo RCA (mono summing)
• 3-pin auxiliary line level output connector for each output channel
• dual 5-pin Euroblock main outputs for use with low-impedance or 70V/100V speaker systems
• dual RJ-45 connectors for use with in-wall volume controls (not included)

Other info:

• 17-3/16"W x 1-3/4"H x 14-5/8"D (1U rack space)
• weight: 12.1 lbs.
• warranty: 3 years

• MFR # CSMA2120
• Item # 855CSM2120
• California customers: Please click here for your Proposition 65

What's in the box:

JBL CSMA 2120 owner's manual

If you need assistance accessing this owner's manual, please give us a call.

• CSMA 2120 mixer/amplifier
• 7' AC power cord (IEC 3-prong)
• 4 Self-adhesive rubber feet
• 2 Front angle brackets
• 2 Rear flat brackets
• 2 Rear angle brackets
• Eight 3-conductor Euro-block connectors
• Four 5-conductor Euro-block connectors
• 10 M4 x 20mm Phillips-head rack-mounting screws (each with a flat washer)
• Three 3/16" screws
• 3 Flat washers
• 3 Split lock washers
• 12 M3 x 5mm flat-head screws
• Operation Manual
