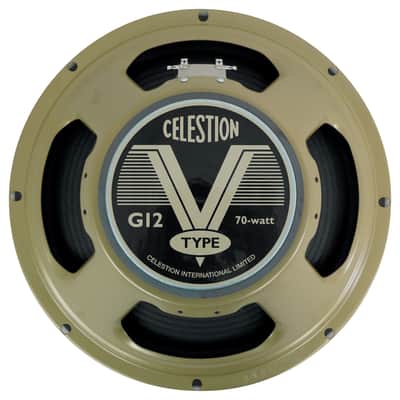

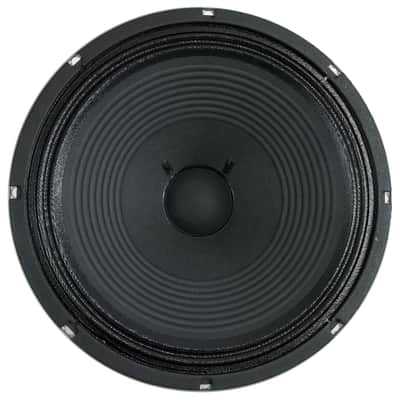

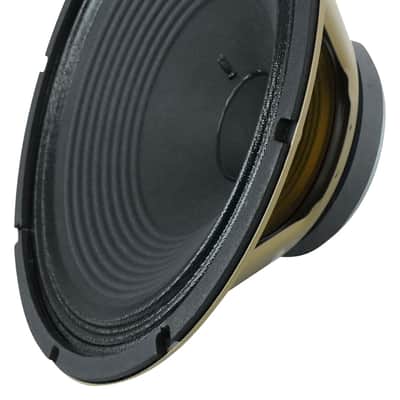

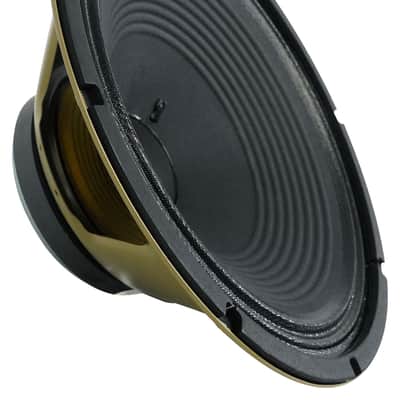

Description:

Combining decades of experience with advanced measurement and analysis the V-Type has been built using a carefully balanced 'recipe' of old and new design techniques. It produces a heady exciting modern vintage sound that just makes you want to keep on playing: a guitar speaker that delivers authentic Celestion tone whatever your style.The V-type is a sweet sounding speaker with a superbly balanced tonal signature that imparts a vintage musicality to your tone. Clean sounds are true across the lows mids and highs with just enough upper-mid chime and HF sparkle to add clarity and definition. Crank it up for a sizzling overdrive and raw rock tones with plenty of mid-band warmth to give body and substance to lead note playing.

Specifications:

• Nominal diameter: 305mm / 12in
• Power rating: 70W
• Rated impedance: 8O
• Sensitivity: 98dB
• Chassis type: Pressed steel
• Magnet type: Ceramic
• Magnet weight: 0.88kg / 31oz
• Voice coil diameter: 1.75in / 44mm
• Voice coil material: Round copper
• Frequency range: 70-5000Hz
• Resonance frequency, Fs: 75Hz
• DC resistance, Re: 7.3O


Mounting Information:

• Cut-out diameter: 283mm / 11.1in
• Diameter: 309mm / 12.2in
• Magnet structure diameter: 134mm / 5.3in
• Mounting hole dimensions: 7.9mm / 0.31in Ø
• Mounting hole PCD: 297mm / 11.7in
• Number of mounting holes: 8
• Chassis depth (inc gasket): 94mm / 3.70in
• Magnet depth: 30mm / 1.18in
• Overall depth: 123mm / 4.8in
• Unit weight: 3.3kg / 7.2lb
