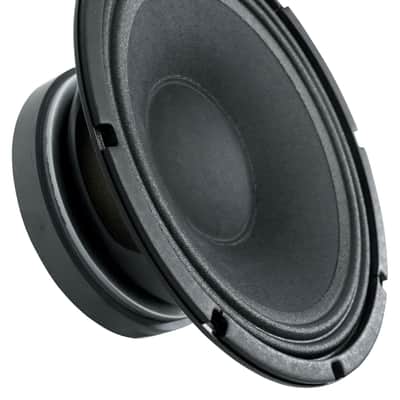

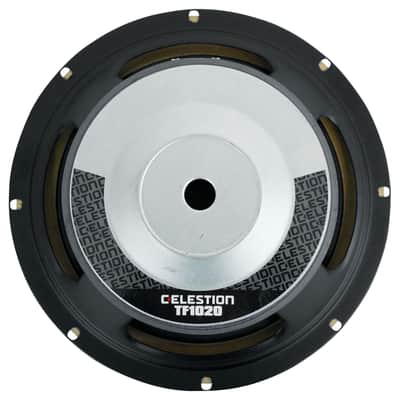

Celestion TF1020 300W 10" Pro Audio PA Woofer 8 Ohm Mid/Bass Driver 2" VoiceCoil
This seller has not set a shipping cost for Latvia. Please contact them to ask about shipping.
Original Price€84.37
7% price drop
New Price€78.82
Incl. VAT
+ Shipping
Only 1 left
Grab it before it's gone
Listed:over a month ago
Views:52
Saves:2
Offers:1
Inwood, NY, United States
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
Features:
- 10in mid bass driver provides 97dB sensitivity and 150Wrms
Specifications:
- Nominal diameter: 254mm / 10in
- Power rating: 150W
- Continuous power rating: 300W
- EIA power rating: 250W
- Rated impedance: 8O
- Sensitivity: 97dB
- Frequency range: 60-5500Hz
- Chassis type: Pressed steel
- Magnet type: Ferrite
- Magnet weight: 1.2kg / 42oz
- Voice coil diameter: 50mm / 2in
- Voice coil material: Round copper
- Former material: Polyimide
- Cone material: Kevlar loaded paper
- Surround material: Cloth-sealed
- Suspension: Single
- Gap height (Hg): 8mm / 0.31in
- VC winding height (Hvc): 12mm / 0.47in
- Additional impedances: 4O
Parameters:
- Sd: 346.36cm2 / 53.69in2
- Fs: 69.40Hz
- Mms: 31.10g / 1.10oz
- Qms: 2.454
- Qes: 0.372
- Qts: 0.323
- Re: 5.45O
- Vas: 28.75l / 1.02ft3
- BI: 14.10Tm
- Cms: 0.17mm/N
- Rms: 5.52kg/s
- Le (at 1kHz): 0.60mH
- Xmax: 4mm / 0.16in
Mounting Information:
- Overall diameter: 256mm / 10.08in
- Overall depth: 110mm / 4.3in
- Cut-out diameter: 229mm / 9.02in
- Mounting hole dimensions: 8x6mm / 0.31x0.24in
- Number of mounting holes: 4
- Mounting hole PCD: 245mm / 9.65in
- Unit weight: 3.7kg / 8.2lb
Packed Dimensions & Weight:
- Single pack size W x D x H: 280mm x 280mm x 120mm / 11.0in x 11.0in x 4.7in
- Single pack weight: 4.2kg / 9.2lb
- Multi pack qty: 96
- Multi pack size W x D x H: 1080mm x 880mm x 840mm / 42.5in x 34.6in x 33.1in
- Multi pack weight: 390kg / 860lb
