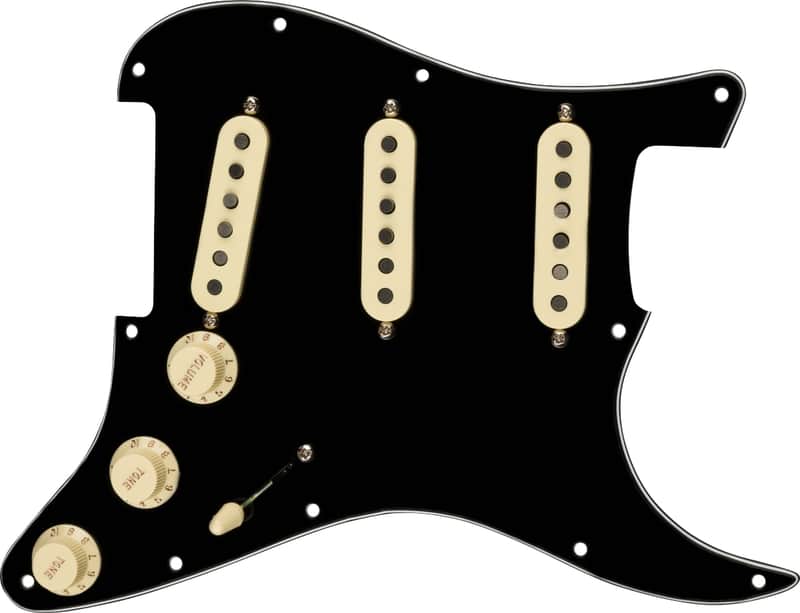

Pre-Wired Strat Pickguard, Tex-Mex SSS

Customize your tone with the Pre-Wired Stratocaster pickguards. Made with premium components in the same factory as Fender's iconic guitars, this drop-in pickguard is easy to install. Simply remove your old guard, solder the output jack and ground wires, screw in the new guard, and you're ready to rock with pure Fender sound.

Features

• Tex-Mex pickups
• Polysol-coated magnet wire
• Staggered pole pieces for balanced output
• Alnico 5 magnets for focus and enhanced dynamics
• Reverse-wound middle pickup to eliminate hum
• Overwound bridge pickup for maximum output
• Vinyl-coated output wire and plastic bobbin

Hardware

• Pickguard: 3-Ply Black
• Pickguard Ply: 3-Ply
• Pickup Covers: Aged White
• Control Knobs: Aged White Plastic
• Switch Tip: Aged White
• Hardware Finish: Chrome
• Mounting Type: 11-Hole Modern

Electronics

• Bridge Pickup: Tex-Mex Single-Coil Strat
• Middle Pickup: Tex-Mex Single-Coil Strat
• Neck Pickup: Tex-Mex Single-Coil Strat
• Pickup Configuration: SSS
• Lead Wire: Vinyl-covered
• Magnet Type: Alnico 5
• Magnet Wire: Polysol-coated
• Shielded: Yes
• Pole Pieces: Staggered
• Bobbin Material: Nylon
• Controls:
  • Master Volume
  • Tone 1 (Neck Pickup)
  • Tone 2 (Bridge/Middle Pickup)
• Switching: 5-Position Blade Switch
• DC Resistance:
  • Neck: 6.5K
  • Middle: 6.4K
  • Bridge: 7.4K
• Inductance:
  • Neck/Middle: 2.75 Henries
  • Bridge: 3.7 Henries
• Power Requirements: Passive
• Potentiometers: CTS 250K
