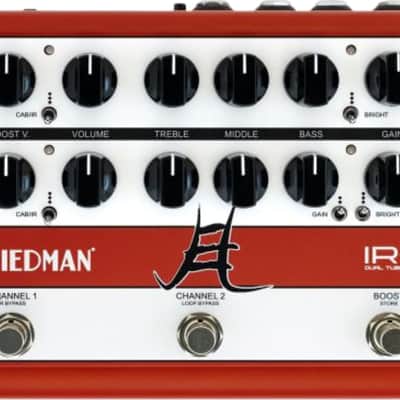

The Friedman IR-J dual-channel tube preamp is an entire Friedman rig in a compact pedalboard-friendly package. IR-J boasts two fully independent foot-switchable channels based on Friedman’s legendary JEL-100 and JEL-20 designs which are rooted in Dave’s modded ‘800/PLEXI circuits. Powered by two high-voltage 12AX7 preamp tubes, each channel delivers deep harmonic richness and the touch response of a large format Friedman tube amp. The SYNERGY powered, state of the art, ultra-low latency, DSP IR cabinet/power amp simulation sends a studio-quality mic'd-up tone to your DAW or Front-of-House. The IR-J provides easy-to-use controls without complex menus and 100-page manuals. IR-J isn't simulating a Friedman tube preamp. It is one. While other preamp pedals utilize tubes to 'warm up' their digital or solid-state circuit, two glowing hot 12AX7 preamp tubes, running at over 300 Volts, are the IR-J’s beating heart. A genuine preamp in every way, IR-J delivers all the tone, response, gain characteristics, and harmonic complexity you expect from a Friedman design.

Product Features

• Jake E Lee Signature
• All-tube HIGH-VOLTAGE preamp - DI

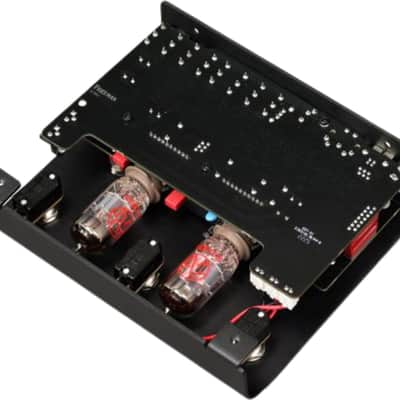

• 2 x 12AX7 preamp tubes
• Two independent channels + TS style boost per channel - Based on Friedman’s legendary JEL-100 and JEL-20 designs
• MIDI programmable features: annel select / Boost, IR select, Thump, Presence and Low-Pass Filter - three-way switch per channel, Effects loop ON/OFF, Boost Lock
• Power amp simulation with software editable Presence, Thump and Low-Pass Filter (per channel)
• Low latency Impulse Response cabinet simulation (bypassable)
• Three position CAB/IR select switch per channel (programmable via software)
• 18 free Friedman IRs or load your own

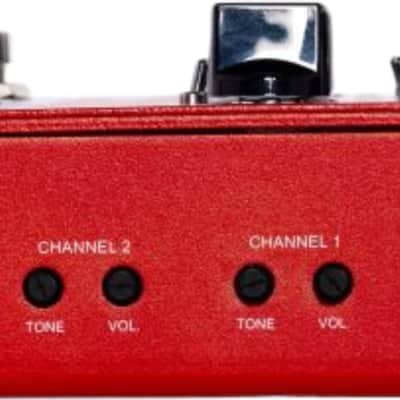

• Boost Volume (top) - Vol. (gain amount) and Tone controls (per channel) on side panel
• Volume and Gain controls (per channel)
• ll EQ consisting of Bass, Middle, Treble (per channel)
• 3-way Bright switch (per channel)
• 2-way Gain switch (Channel 2)
• Three multi-function foot switches
• Ultra-transparent series FX loop (bypassable)
• TRS balanced output
• Headphone output
• MIDI 5 pin standard connector and USB MIDI
• USB software editor - powered by SYNERGY

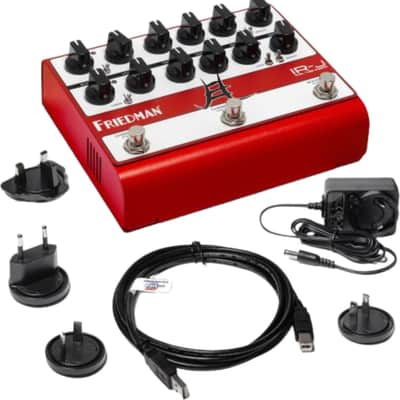

• Universal 12V Power Supply Included
• 6 Foot USB2.0 A Male to B Male cable Included

Attributes

• Color: Red

Technical Specifications

• Features: Power Supply Included, USB, Signature Model
• Dimensions: 2.3" H x 6.5" W x 5.5" D
• Weight: 1.5 lbs
• EQ: 3-Band EQ
• Inputs: 1 x 1/4" (Input), 1 x 1/4" (FX Return)

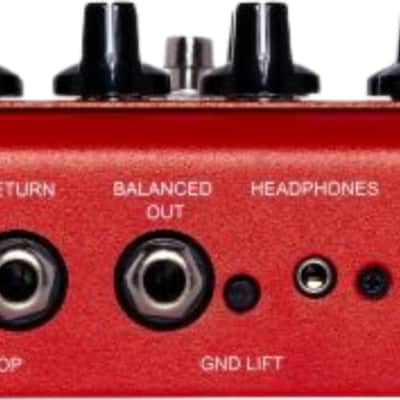

• Outputs: 1 x 1/4" (Balanced Out), 1 x 1/4" (FX Send), 1 x 1/8" (Headphones)
• MIDI: In, USB
• Power Source: 9V DC 800mA (12V DC 500mA) power supply (included)
• USB: 1 x USB-B
• Effects: Preamp, DI
• Processing Type: Analog
• Software: Friedman Editor software
