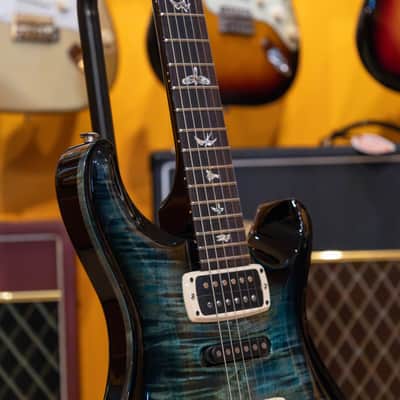

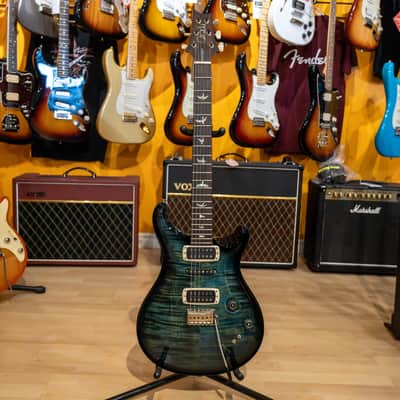

Innovation Realized

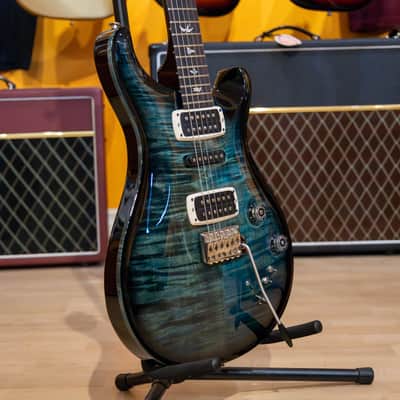

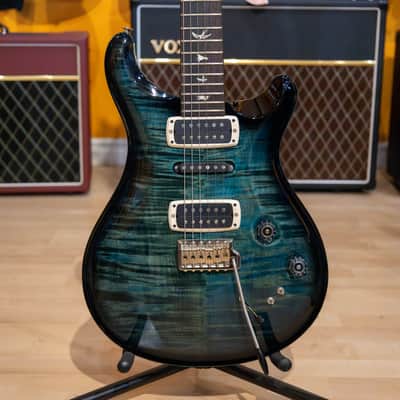

The Modern Eagle V is an innovative instrument that offers highly musical tones for both recording and playing live. Utilizing a hum/single/hum (five-coil) pickup layout and unique electronics configuration, the Modern Eagle V gives players a vast array of tones in one guitar. The 5-way blade switch selects the pickups in intuitive groupings: treble, treble and middle, middle, middle and bass, and bass. There is a single volume and a push/pull tone control that activates both humbuckers when engaged; this allows players to access all three pickups simultaneously. Finally, the mini toggles allow players to individually tap the humbucker coils, for additional single-coil sounds. This electronics design puts a whole set of classic and new tones at your fingertips.

Additional appointments include a maple top and mahogany back, a 22 fret, 25" scale length, Pattern mahogany neck with rosewood fretboard, bone nut, and PRS patented Gen III tremolo.

For 2024, PRS Guitars is updating the tuning machines on many of their Core guitars. While, aesthetically, their new Wing buttons are designed to echo the 12th fret bird wingspan design, they were first and foremost designed for tonal reasons all the way back in 1982. Because these buttons are lighter weight than their metal predecessors, they are subtracting less energy from the vibrating strings, thus helping the guitar ring longer and at a more musical note.

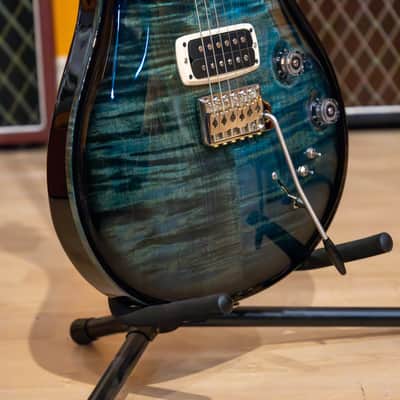

PRS Patented Tremolo, Gen III
Meticulous design delivering sonic fidelity, player ergonomics, and revolutionary tuning stability.

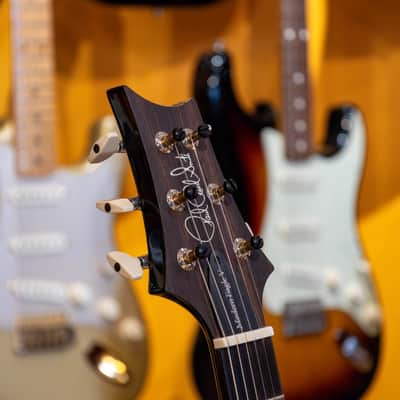

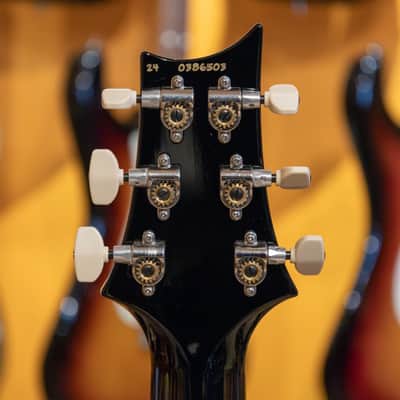

PRS Phase III Locking Tuners with Wing Buttons
Modern locking technology with vintage elegance, these lightweight tuners promote tone transfer for a louder, more resonant instrument.

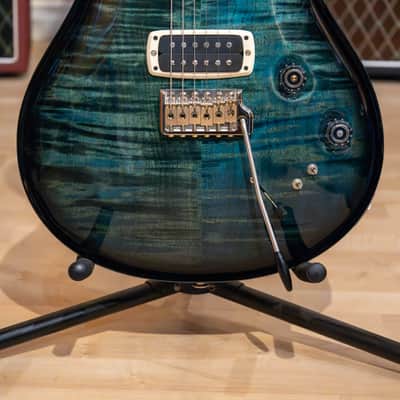

PRS MEV Pickups
Versatile pickup configuration offering a vast array of tones in one guitar.

Body
Body Construction: Solidbody
Top Wood: Maple

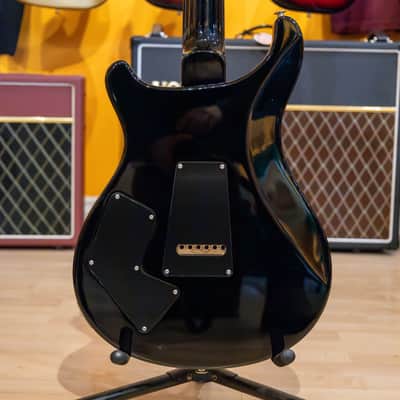

Back Wood: Mahogany
Top Carve: Violin

Neck
Number of Frets: 22
Scale Length: 25"
Neck Wood: Mahogany
Neck Construction: One-Piece
Truss Rod: PRS Double-Acting
Neck Shape: Pattern
Neck Depth at the 1/2 Fret: 7/8"
Neck Depth at the 12 1/2 Fret: 61/64"
Neck Width at the Nut: 1 11/16"
Neck Width at the Body: 2 1/4"
Fretboard Wood: Rosewood
Fretboard Radius: 10"

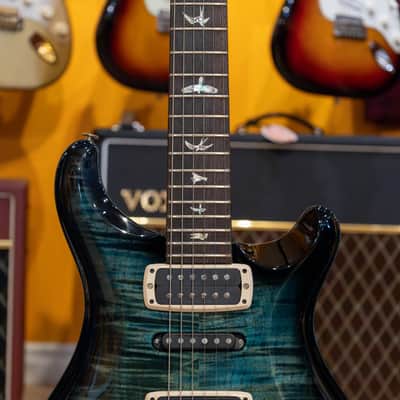

Fretboard Inlay: Birds

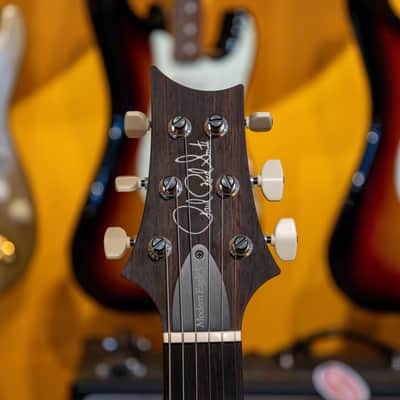

Headstock Logo: Signature, Inlaid

Neck/Body Assembly
Neck/Body Assembly Type: Set

Finish
Finish Type: High-Gloss Nitro

Hardware
Bridge: PRS Patented Tremolo, Gen III
Tuners: PRS Phase III Locking Tuners with Wing Buttons
Hardware Type: Nickel
Nut: Bone
Truss Rod Cover: "Modern Eagle V"

Electronics
Treble Pickup: TCI
Middle Pickup: NS-01
Bass Pickup: TCI
Controls: Volume and Push/Pull Tone Controls with 5-Way Blade Pickup Switch and Two Mini-Toggle Coil-Tap Switches

Additional Info
Strings: PRS Signature 10-46
Tuning: Standard (6 String): E, A, D, G, B, E
Case: Hardshell Case
