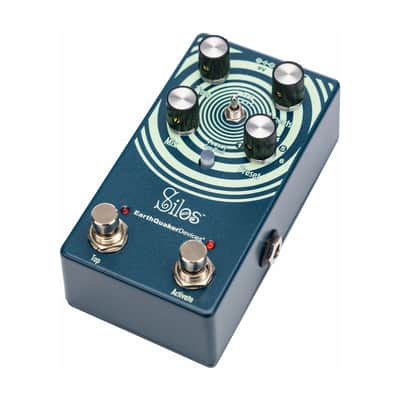

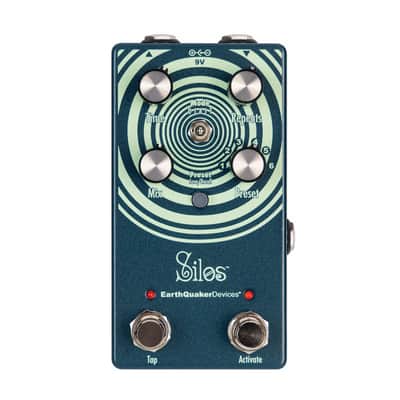

EQD Silos™ Multi-Generational Time Reflection Device

The Silos™ Multi-Generational Time Reflection Device is a tri-voice delay that merges together a digital, analog, and tape delay into one compact and powerful pedal. Additionally, it features tap tempo, user-assignable expression control, and the ability to save and recall six presets, making it endlessly customizable and easy to operate. It’s like having three classic pedals all rolled into one! Now you can save room on your pedalboard while never having to decide which single delay to use again.

Each of the three modes offers up to one second of delay time. From noon and back is 500milliseconds to zero, which has its own character. From 500 milliseconds to one second of delay time, it’s an entirely different beast. Dial them in for shorter delay times where they really excel and add loads of atmosphere and vibes. Push them further for rhythmic delays that are perfect for strumming and adding extra ambiance for your riffs.

Each of the three delay modes is uniquely different and offers its own unique character when selected.

Mode D: Digital Delay This mode offers bright repeats that remain strong as they decay. Shorter settings give you a bold stuttering staccato sound, while longer settings give you ambiance with longer repeats.

Mode A: Analog Delay This mode is very mid-focused with faster diminishing repeats and dark and murky build ups. Boasting a big presence without low end throb or overpowering high end, this works equally well with a clean signal or distortion.

Mode T: Tape Delay Reminiscent of an oil can delay, this mode pairs beautifully with distortion and is highly responsive to your attack. Roll it on for everything from dark undertones to atmospheric terrains.

Global Features

Presets Silos has six available preset slots for you to save and recall your favorite settings. The settings for each of the three controls, the mode switch and the expression jack assignment can be saved and recalled in any of the slots.

Operating Modes Silos has two operating modes which are indicated by the color of the Save/Recall switch LED. In Live mode, the pedal will operate exactly where the controls are set and any changes will have no effect on the presets unless saved. In Preset mode, stored presets, including expression pedal mapping, are selected using the Preset switch, and the physical settings of the controls will be ignored.

Expression control Use any TRS expression pedal to take control over the Time, Repeats or Level! Silos ships with the EXP jack mapped to the Repeats control.

Controls Mode

Toggle: Toggles between Digital Delay, Analog Delay, and Tape Delay

Time: This sets the delay time from 0-1 Second

Repeats: This controls the regeneration of the delay signal. This mode does not self-oscillate in Digital Mode but begins to self-oscillate at 3 o’clock in Analog and Tape

Modes.Mix: Adjusts the level of the delay signal.

Preset: Six available preset slots for you to save and recall your favorite settings. The settings for each of the three controls, the Mode switch and the expression jack assignment can be saved and recalled in any of the slots.

• Lifetime warranty
• Current Draw: 75 mA
• Input Impedance: 500 kΩ
• Output Impedance: 100 Ω
