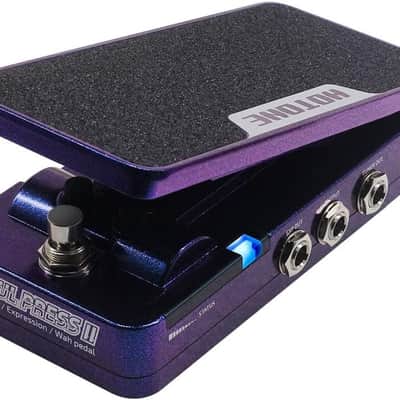

HOTONE Soul Press II is One Wah Volume Passive Expression Guitar Effects Pedal in the Hotone Press series pedal line. It have four function modes : volume, wah, volume/wah, expression Guitar effects Pedal.The guitar pedal size maintains portability for easying uses. Soul Press II is a truly wah Volume Passive Expression pedal.

Specifications

Input Impedance: 1MΩ

Output Impedance: 100Ω

Wah Range Selector: WARM—290Hz to 1.4kHz

CLASSIC—360Hz to 1.8kHz

Current Consumption: Max 30mA

Dimensions: 3.19inches (W) x 6.38inches (D) x 2.01inches (H)

Weight: 28.35ounce

1. INPUT: 1/4"mono audio jack

2. MODE: For selecting 3 modes with LEDs

3. TONE: For selecting wah filter range

4. Q: For adjusting wah filter frequency width

5. DC IN: Plug in 9V DC adapter (can also be powered by 9V battery)

6. Footswitch: Switch between on/off status or active volume/wah in V/W mode

7. STATUS: A set of LEDs showing the current pedal position

8. EXP OUT: 1/4” TRS jack, for connecting to another device

9. OUTPUT: 1/4"mono audio jack

10. TUNER OUT: 1/4" mono audio jack for tuner

Active Volume Pedal Design

The newly-designed active volume circuit keeps you free of dreaded on this guitar effects pedal. Through internal structural optimization, we improved the circuit structure stability, greatly reducing noise interference caused by intense use for this guitar pedal

Flexible Wah Tone Guitar Pedal

Q and TONE adjustments give you a wider tone selection on this guitar effects pedal, from soothing moods to a wild roars, all the emotion available in one guitar pedal, represent an absolute improvement in tone and functionality.

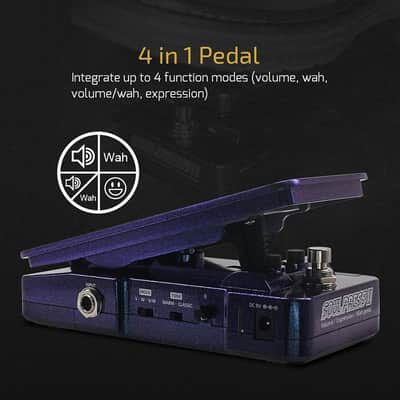

4 Function Modes Guitar Effects Pedal

In V mode or W mode, you can turn on the volume effect control or wah effect individually, or bypass the function. The V/W mode combines the volume and wah into one, and you can switch between them with the footswitch on the top of the guitar effects pedal. No matter in which mode, the expression function is effective on this guitar pedal

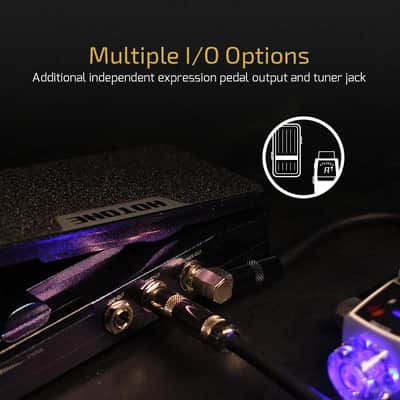

Multiple I/O Options On Guitar Pedal

Additional independent expression pedal output lets you control the features of other effects in real time; the external tuner jack moves your tuner outside of the effect chain for this wah pedal

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

5.0 out of 5 stars

5.0 out of 5 stars

5.0 out of 5 stars

5.0 out of 5 stars

Price

$119.99$119.99

$119.99

$

119.

.

99

$79.99$79.99

$79.99

$

79.

.

99

$89.99$89.99

$89.99

$

89.

.

99

$149.99$149.99

$149.99

$

149.

.

99

Modes

4 Modes:Volume,Expression,Wah,Volume/Wah

2 Modes: Volume, Expression

2 Modes: Volume, Expression

Muti-functionality: tuner, volume, expression, buffer and more

Input/Output

1/4" Mono audio jack

1/4" Mono audio jack

Independent footswitch and expression output jacks

Independent volume and expression output jacks

Status Indicator

✓

X

X

✓

True Bypass

✓

✓

✓

✓

Power Requirement

9V DC Center Negative

No power supply needed

No power supply needed

9V DC Center Negative

Dimension

81mm(W)X162mm(D)x51mm(H)

81mm(W)X162mm(D)x51mm(H)

162mm (W) x 81mm (D) x 51mm (H)

81mm(W)X162mm(D)x51mm(H)

Weight

500g

430g

455g

606g

Feature

Plus 1PCS 15CM Patch Cable

Plus 1PCS 15CM Patch Cable

Plus 1PCS 15CM Patch Cable

Plus 1PCS 15CM Patch Cable
