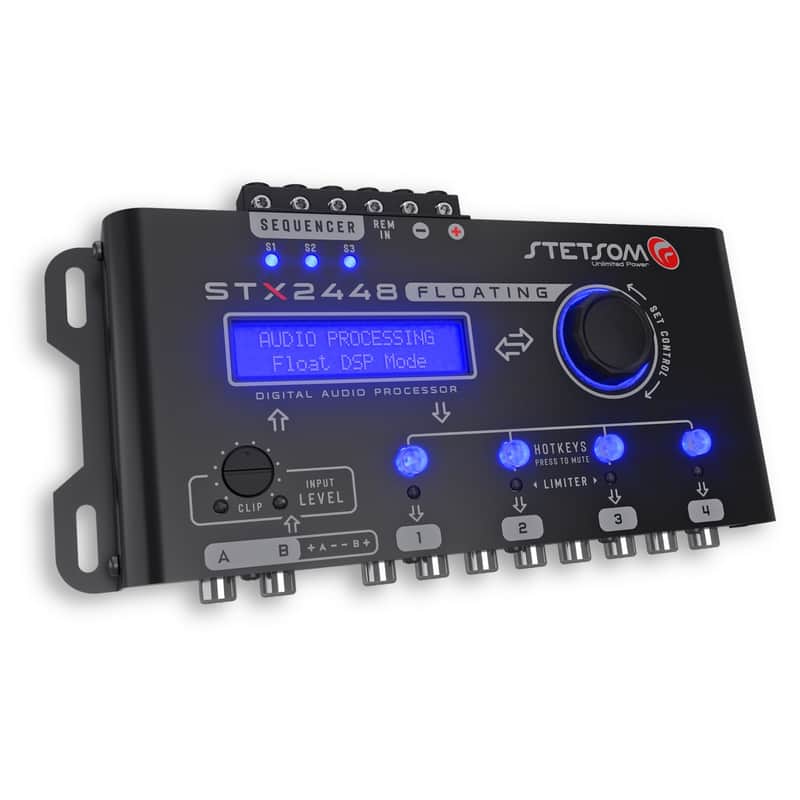

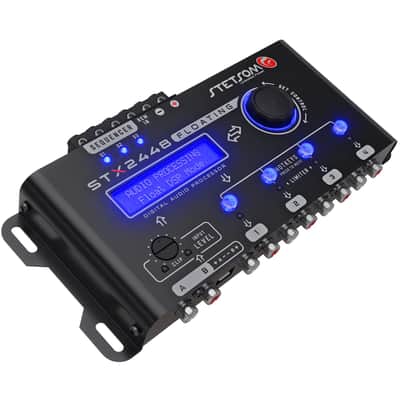

Stetsom STX2448 FLOATING Full Professional DSP Digital Signal Processor PRO

Stetsom STX2448 FLOATING Full Professional DSP Digital Signal Processor PRO, Crossover & Equalizer, Remote Sequencer

• ?【UPDATED VERSION】The new Stetsom Audio Processor STX 2448 FLOATING has everything the standard STX2448 has and much more, specially designed for those who care about audio quality.
• ?【FLOAT MODE】The DSP Floating mode provides different flows and features compared to standard DSPs. It allows the processor to be loaded with different audio streams and resources, expanding the range of possibilities for configuring various systems. Available in Standard and PRO modes.

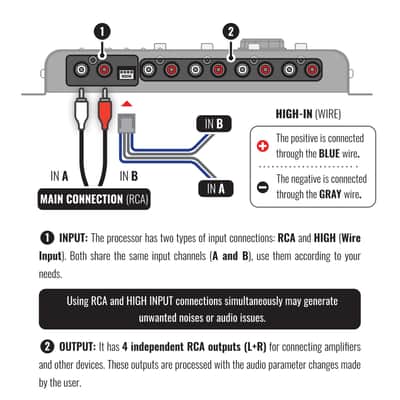

• ?【TWO TYPES OF INPUT】RCA & High Signal (factory car stereo), both share the same input A & B.
• ?【INPUT LEVEL ADJUSTMENT】Allows you to adjust the level of input audio signals. This feature also has two LEDs indicating if the input signal is saturated (CLIP) on input channels A & B.
• ?【ENCODER BUTTON】The improved encoder button has rotation and click actions, that will lead you through all the device configurations.

TECHNICAL SPECIFICATIONS CHARACTERISTICSSTX2448 FLOATINGNumber of processors (DSPs)1Input Channels2Output Channels4Input Gain±12 dB (IN A / IN B)Output Gain:LEVEL: 0% ~ 100% & GAIN: -45dB ~ +15dBMaster Level0% ~ 100%Graphic Equalizer15 Bandas (Band)Graphic Equalizer presets12 presets (gain ±12dB)Parametric Equalizer Input1Parametric Equalizer Output1 por saída / 1 per audio outputRoutingA, B & A+BCrossover Bessel (dB/8ª)12/18/24/30/36/42/48 dB/8ªCrossover Butterworth (dB/8ª)12/18/24/30/36/42/48 dB/8ªCrossover Linkwitz-Riley (dB/8ª)12/18/24/30/36/42/48 dB/8ªLimiterLimiter PEAK & RMSAutomatic Attack/Release✔Manual Attack/Release✔Delay0ms ~ 8ms (275cm)Frequency Generator✔Frequency scan✔DisplayLCD 16x2Screen saver✔Security Password✔Frequency Response10Hz ~ 22,5KHz @ -1dBLatency1,08msSignal to Noise>90dBTHD<0,01%Channel Separation>80dBMaximum Input VoltageRCA IN: 5V RMS / 14,1 Vpp / +16,2 dBu — HIGH IN: 20V RMS / 56,5 Vpp / +28,2 dBuMaximum Output Voltage2V RMS / 5,6 Vpp / +8,2 dBuSupply Voltage9V ~ 16V DCDimensions (H x W x D) mm36,5 x 229 x 113,5 mmWeight Kg500g
