Charvel Pro-Mod DK24 HH 2PT CM - Malibu Sunset

Charvel® turns modern high performance on its head with the new Pro-Mod DK24 HH 2PT CM, a brazen instrument for the progressive guitarist searching for an unparalleled spectrum of sound.

Serial Number: MC24001061

Weight: 8 lbs

GENERAL

Model Number 2962411500

Series Pro-Mod

Color Malibu Sunet

Number of Strings 6

Orientation Right-Hand

ELECTRONICS

Bridge Pickup Seymour Duncan® Full Shred™ TB-10

Neck Pickup Seymour Duncan® Alnico II Pro™ APH-1N

Pickup Color Black

Controls Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone

Pickup Switching 5-Position Blade: Position 1. Bridge Pickup, Position 2. Both Outer Coils, Position 3. Bridge and Neck Pickup, Position 4. Both Inside Coils, Position 5. Neck Pickup

Auxiliary Switching 2-Position Mini Toggle Down/All Series, Up/All Parallel

Pickup Configuration HH

BODY

Body Finish Gloss

Body Shape Dinky

Body Material Alder

HARDWARE

Bridge Gotoh 510 Custom Tremlo

Hardware Finish Chrome

Tremolo Arm Gotoh®

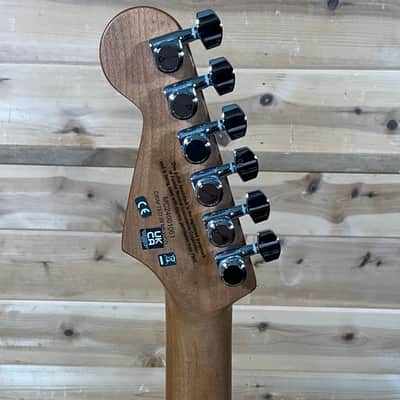

Tuning Machines Charvel®-Branded Die-Cast Locking

Pickguard None

Control Knobs Strat®-Style Skirt

Switch Tip Black

Saddle Height Wrench Yes

NECK

Neck Material Caramelized Maple

Neck Construction Bolt-On with Graphite Reinforcement

Neck Finish Hand-Rubbed Urethane

Neck Shape Speed Neck with Rolled Fingerboard Edges

Neck Binding None - Rolled Fingerboard Edges

Scale Length 25.5" (64.77 cm)

Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm)

Fingerboard Material Caramelized Maple

Number of Frets 24

Fret Size Jumbo

Nut Material Graph Tech TUSQ XL

Nut Width 1.6875" (42.86 mm)

Position Inlays 4mm Pearloid Dot

Side Dots Luminlay®

Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel

String Trees Fender® Standard String Guide

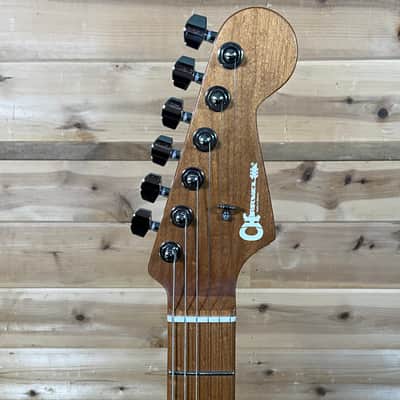

Headstock Licensed Fender® Stratocaster®Neck Plate

None - 4-Bolt Sculpted Heel

MISCELLANEOUS

Strings Nickel Plated Steel (.009-.042 Gauges)

Strap Buttons Standard

Case/Gig Bag Optional Gig Bag (p/n 007-6756-000)

Other Features Luminlay® Side Dots
