BOSE FreeSpace AmPlus 100, 50/65/100-Watt 2-Channel Amplifier.

BOSE FreeSpace AmPlus 100, 50/65/100-Watt 2-Channel Amplifier.

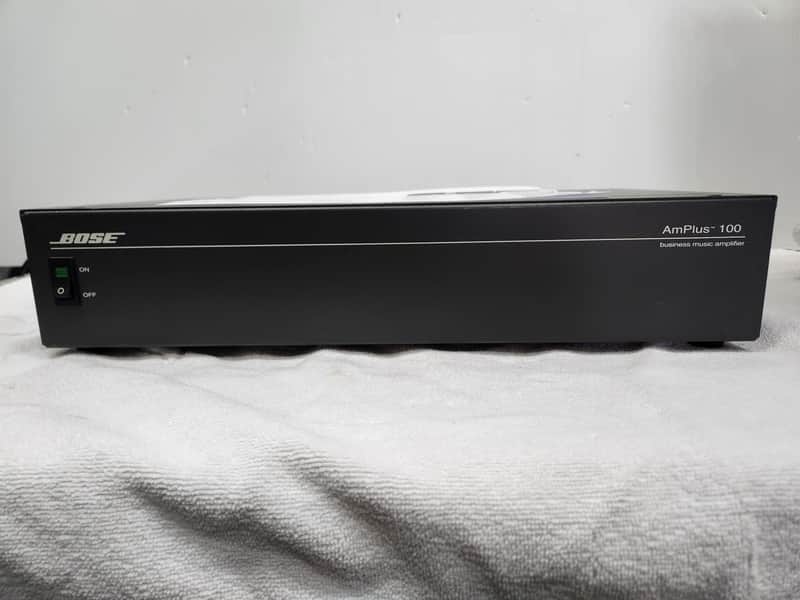

->>ThisBOSE AmPlus 100 is in good condition
->>Of course because of the age there are scratches here and there
->> See all photos

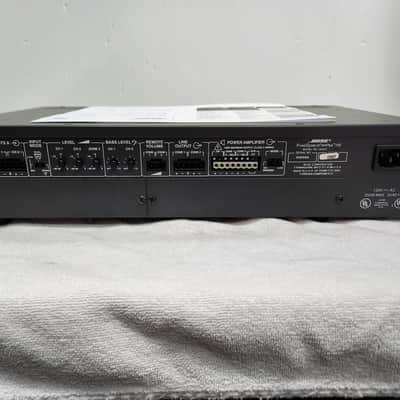

The AmPlus 100 business music amplifier has front end processing permitting the connection and level adjustment of two sources: left/right or source A/source B. Power hookup, remote volume hookup, line output connections, and provision for bass adjustment are provided on the rear panel.Option card accessories offer the freedom to add additional sources,paging, or active equalization. Source or paging cards may be plugged into option card slots provided on the rear panel.Active equalization can be implemented by removing the chassis cover and connecting the equalizer card directly to the power amplifier.

Power Output
Stereo:
65W per channel into 4Ω
50W into 8Ω
70V Bridged Mono: 100W into 49Ω
100V Bridge Mono: 100W into 98Ω
70V/4Ω:

50W @ 70V output into 98Ω
65W @ Ch. 2 output into 4Ω100V/4Ω:
50W @ 70V output into 196Ω
65W @ Ch. 2 output into 4Ω
Input Sensitivity
315mV required to drive both channels to full power in any mode.
Input Attenuation
0dB to off
Input/Output Configurations
1. 2-channel (stereo)
2. Mono into 4Ω load
3. Mono into 70V/100V load
4. Dual-Mono (1 source/2 zones)
5. Channel 1: 70V/100V; Channel 2: 4Ω

Input Impedance
32kΩ balanced
11kΩ unbalanced
Line Output Impedance
600Ω
Line Output Distortion
≤0.1%
Frequency Response(active EQ bypassed)
4Ω outputs: 40Hz – 16kHz, ±1dB
70V outputs: 60Hz – 16kHz, ±1dB
THD @ Rated Power
4Ω outputs: ≤1% THD (40Hz – 16kHz)
70V outputs: ≤1% THD (60Hz – 16kHz)
Hum and Noise
Line outputs: 92dB
Power amplifier outputs: 80dB below maximum output with 4Ω load
LED Indicator
Power: front panel
