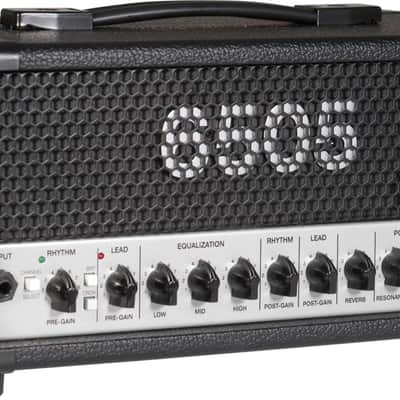

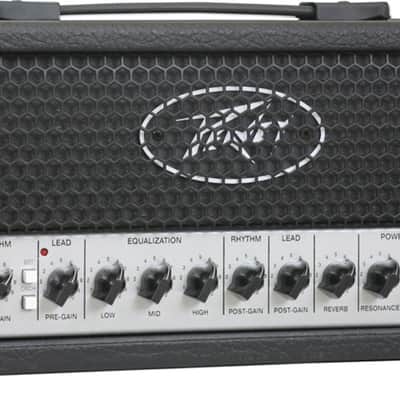

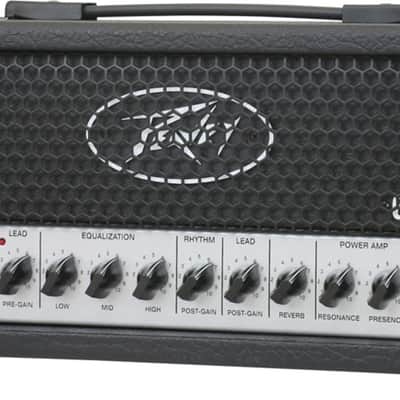

Featuring an all tube preamp and power amp, the 6505 MH authentically produces the much loved tones of the legendary Peavey 6505 in a small, portable package. The 6505 MH Mini Head has two channels that follow the same gain structure and voicing of its big brother! The channels share EQ, lush reverb and an effects loop. Channels, crunch, effects loop and reverb are all footswitchable. T.S.I. tube monitoring constantly lets you know that your power tubes are in good shape, and if not, which ones need to be replaced. The back panel of the 6505 MH is full of modern technology, including Peavey's exclusive MSDI output, USB recording output, headphone output, speaker defeat switch, plus a built-in power attenuator!

Product Features

• 2x EL84 power tubes and 3x12AX7/ECC83 preamp tubes
• Two footswitchable channels with 3-band EQ
• Footswitchable crunch on Rhythm channel
• Footswitchable reverb
• Footswitchable buffered effects loop
• Tube Status indication (T.S.I.™) circuit
• MSDI™ Output with XLR and ground lift switch
• USB output
• Speaker defeat switch
• Headphone output
• Attenuator switch for 20 watts, 5 watts, or 1 watt output power
• Footswitch included
• Impedance switch for 16 or 8ohm cabinets

Attributes

• Color: Black
• Power Tube: EL84
• Total Power: 20W to 49W

Technical Specifications

• Type: Tube
• Features: Effects Loop
• Amp Type: Amp Head
• # of Channels: 2
• Wattage: 20W
• Dimensions: 7.25" H x 14" W x 7.75" D
• Weight: 17 lbs
• Power Tubes: 2 x EL84
• Preamp Tubes: 3 x 12AX7
• EQ: 3-Band EQ
• Inputs: 1 x 1/4"
• Outputs: 1 x 1/4" (speaker), 1 x XLR (mic simulated direct out)
• Footswitch: 2 x 1/4"
• Footswitch Included: Yes, 2-button footswitch
• Power Source: Standard IEC AC cable
• USB: 1 x Type B
• Construction Material: Black Tolex
• Impedance: 8 ohms
• Mono/Stereo: Mono
• Effects: Reverb
