Satori

TEC Award Winning High-End Monitoring Controller

Features:

- Pristine analog sound with digital control

- 4 Audiophile-grade headphone amps and talkback

- Precise-stepped relay volume control

- Analog summing functionality

- Generous amount of connectivity options

- Flexible remote control (included in the R4S bundle)

- User-friendly desktop app for Windows & OS X

Description:

TEC Award winning Satori is a digitally-controlled true analog monitoring and summing system designed for today’s studios. Antelope’s Orion32 and Zen Studio interfaces have both been praised for their digital clarity, while maintaining the realism of analog sound. Satori features the same high level of uncompromising sound quality thanks to advanced analog circuit design.

Mastering-grade transparency

Satori provides a monitoring solution that maintains sonic accuracy while routing and switching between source material, especially when the D/A is handled by the clear and natural-sounding Antelope family of converters. Antelope Audio’s extensive background in designing pristine analog circuitry, highly optimized PCB layout and power supply technology result in mastering-grade transparency at a project studio price.

Innovative attenuator architecture with utmost precision

Whereas relay attenuators, being mechanical switches, provide the best sound quality, they suffer from popping or zippering artifacts when the volume is adjusted. Satori employs an innovative, patent-pending technology that dramatically reduces these artifacts while retaining all the advantages and excellent sonic performance of the relay attenuators. The greatest advantage of using relays is that they achieve 0.05 dB stereo accuracy and stable L/R balance even at lower listening levels.  Satori also boast .5db increments of source and output trim offset control. This pristine, passive attenuator signal path fully preserves audio signal integrity while revealing even the most subtle nuances.

Analog sound with with flexible remote control

Flexible and accurate control capabilities are made possible by Antelope’s next generation of software control panel technology, which has opened the door to a whole new generation of analog devices, such as the Satori Monitoring System and MP32 32-channel mic preamp. For Satori this means fast and responsive source and speaker output switching, accurate remote volume control and also Mute, Mono, Dim, Mid/Side monitoring.

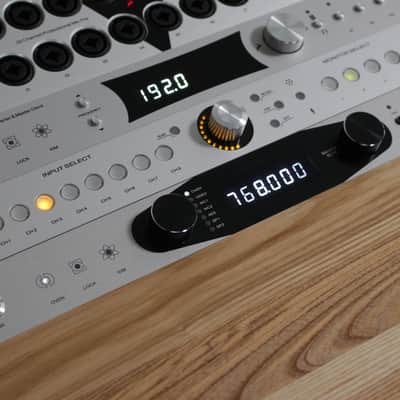

Satori is bundled with a bus-powered remote control – R4S. The remote is specially designed for Satori, completely replicating the front panel functionality. It provides engineers with ease and ergonomics, controlling Satori directly from the mix position. R4S allows for lightning fast control of all sources and monitors, as well as talkback.

Analog summing functionality

In addition to providing outstanding monitoring capabilities, Satori includes a fully analog 8-channel summing mixer. Analog summing allows engineers who work completely “in-the-box” to mix signals in the analog domain for a more natural blending of instruments. The summing mixer inside Satori maintains punch, headroom and excellent dynamics, while offering the analog sound usually found only from legendary analog consoles.

Headphone amps and talkback

Surpassing most monitoring controllers, which offer one or two headphone outs, Satori features four independent headphone amps ready to provide several band members their own, unique input feed with independent volume control. Satori’s headphone drivers are audiophile-grade and are the same as those used in Antelope’s premium line of high-end home audio converters, able to drive both low and high impedance headphones.

A unique software talkback solution allows for instant communication with performers. Satori provides great flexibility by offering several kinds of talkback mic sources – via the built-in mic on the front panel or R4S and the 1/4” TRS connector on the rear panel or the built-in mic in the engineer’s laptop.

An abundant number of I/Os

Satori provides a generous amount of connectivity options. No other 1U monitoring system has eight stereo inputs and four stereo outputs and features such a comprehensive choice of connections: XLR, 1/4” TRS and D-Sub 25. Satori also boasts a subwoofer output and four 1/4” independent headphone outs.

SPECIFICATIONS:

Analog Inputs

4 x Stereo Pair Line Level Inputs. Ch1 on XLR & Ch2-4 on TRS

4 x Stereo Line Level Inputs on D-Sub 25

1 x Talkback Mic Preamp on TRS

Analog Outputs

4 x Stereo Line Level Outputs on D-Sub 25

4 x Stereo Pair Monitor Outputs, Mon1 on XLR and Mon2-4 on TRS

1 x Line Level Stereo Sum Output on TRS

1 x LFE Output on TRS

4 x Headphone Outputs (two on the rear and two on the front) on TRS

USB I/O

USB 2.0 Hi-Speed, Type B

For use with the software control panel

Dynamic Range

132dB

THD + N

127dB

Operating temperature

0-50° C / 32-122° F

Weight

~2kg / 4,4lb approx.

Dimensions

Width: 483 mm / 19” /Rack/

Height: 44 mm(1U) / 1,75”

Depth: 220 mm / 8,66”

Power Supply

AC Universal input ~95-245 V

Power Consumption

25 Watts Max.

System Requirements

Windows

OS: Windows 7/8/8.1/10

Disk Space: Minimum 512 MB available disk space

USB: 1x USB 2.0 Port

Required USB bandwidth (for firmware update): 80%-90%

CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency

Memory (RAM): 4GB Minimum (8GB or more Recommended)

MAC

OS X: 10.9/10.10/10.11/10.12 (Sierra Recommended)

Disk Space: Minimum 512 MB available disk space

USB: 1x USB 2.0/3.0 Port

Required USB bandwidth: 80%-90%

Memory(RAM): 4GB Minimum (8GB or more recommended)

CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)

Additional Info: Internet connection required for product activation.
